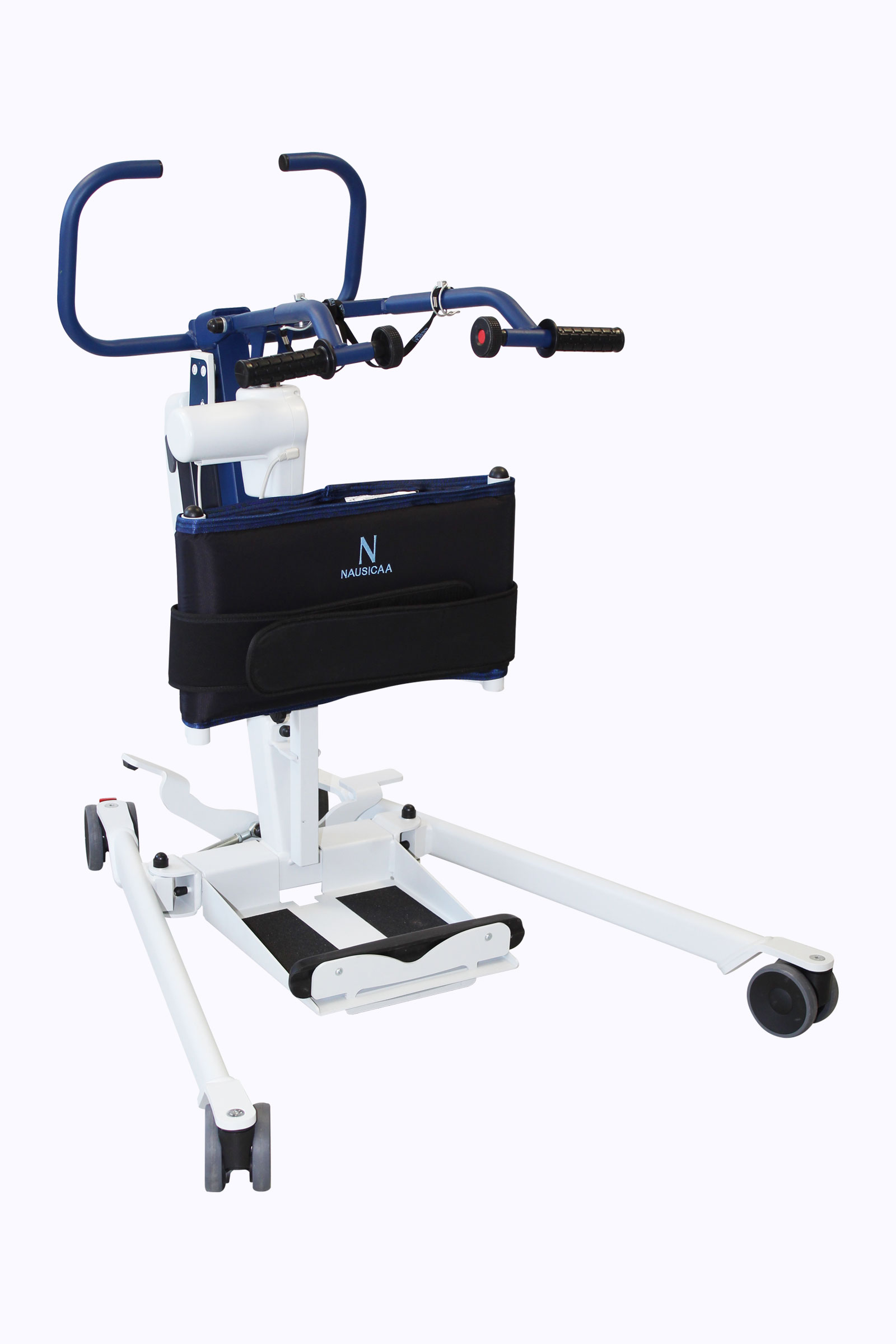

This mechanical or electrical opening legs version of the WAYUP 5, makes it easy to fit around armchairs or wheelchairs. Both models are perfectly adapted to efficiently perform a change of the patient’s lower body and can be used as a walking aid by removing the foot platform.

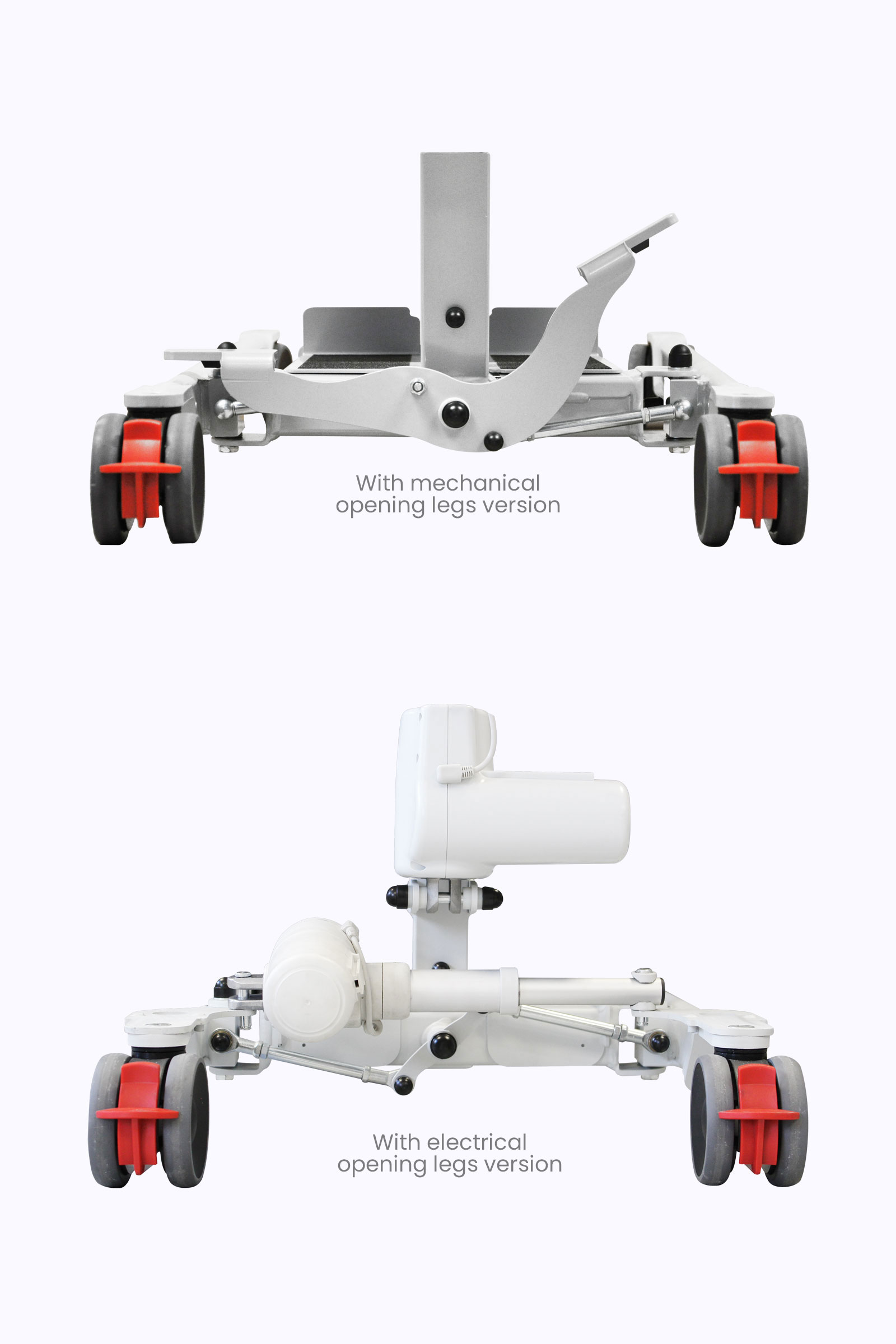

2 opening base legs versions:
• Mechanical opening legs
• Electrical opening legs
NEW KEY FEATURES

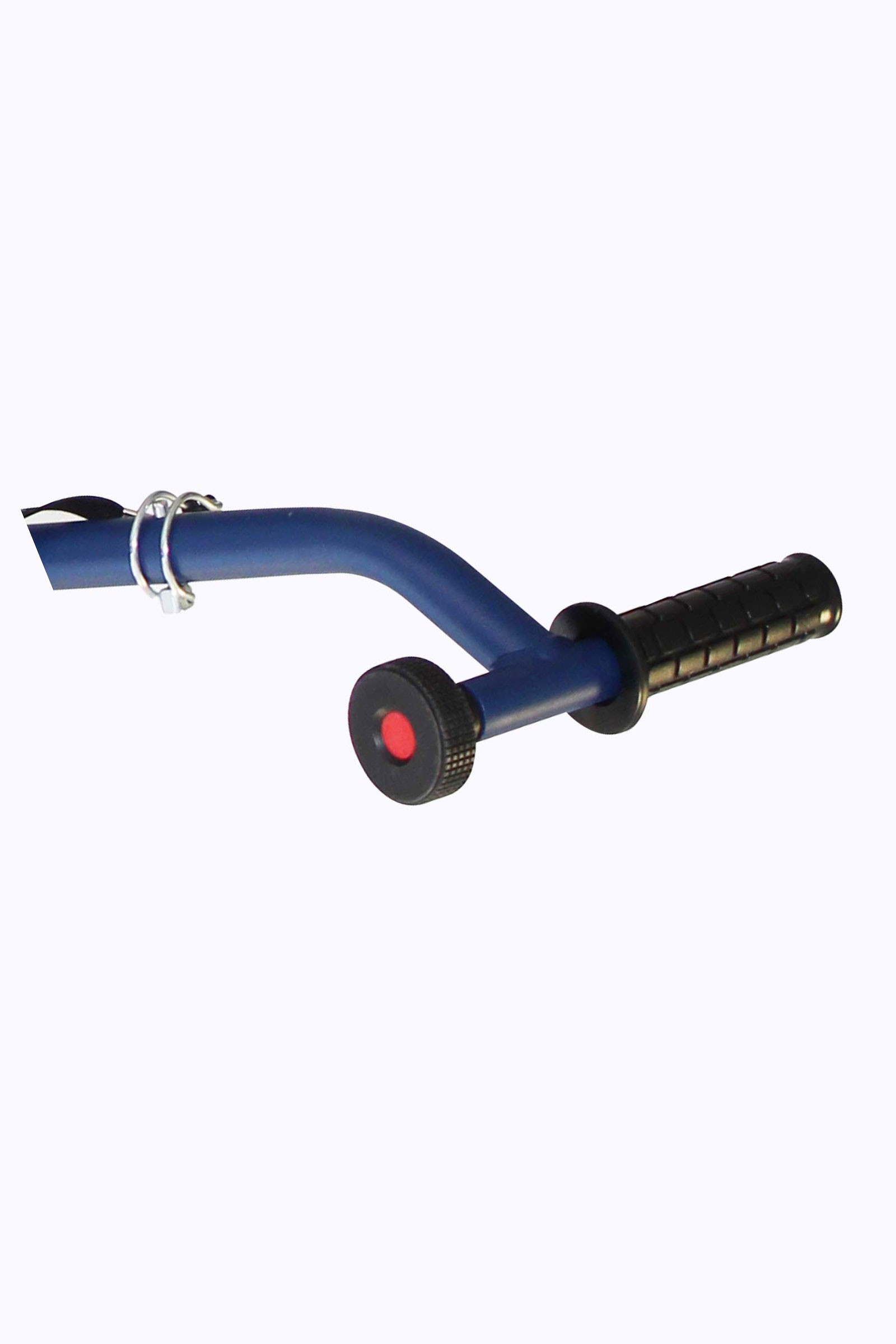

An innovative expandable lifting arm in 2 parts which can be adjusted to 3 different lengths positions to adapt to each patient’s morphology for the best possible care.
In addition, the lifting arm is also reversable to allow 2 different heights configurations to optimize the sling position:
– on the lumbar region to operate a semi-active transfer
– under the armpits to operate a semi-passive transfer

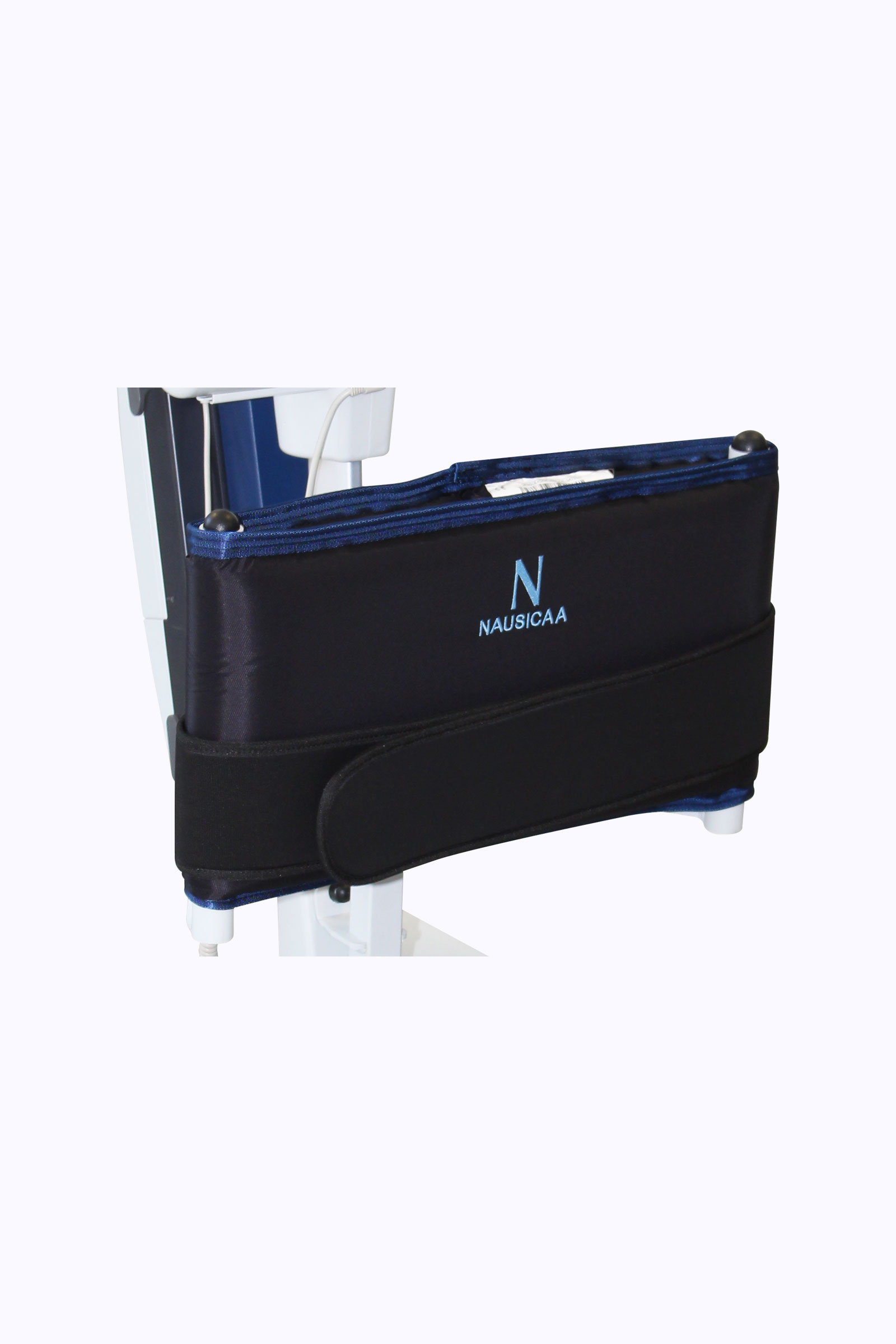

A made in our textile workshop ergonomic knee block manufactured with fabric and foam to protect vulnerable knees.
Equipped with a calf-strap as standard to secure the legs.

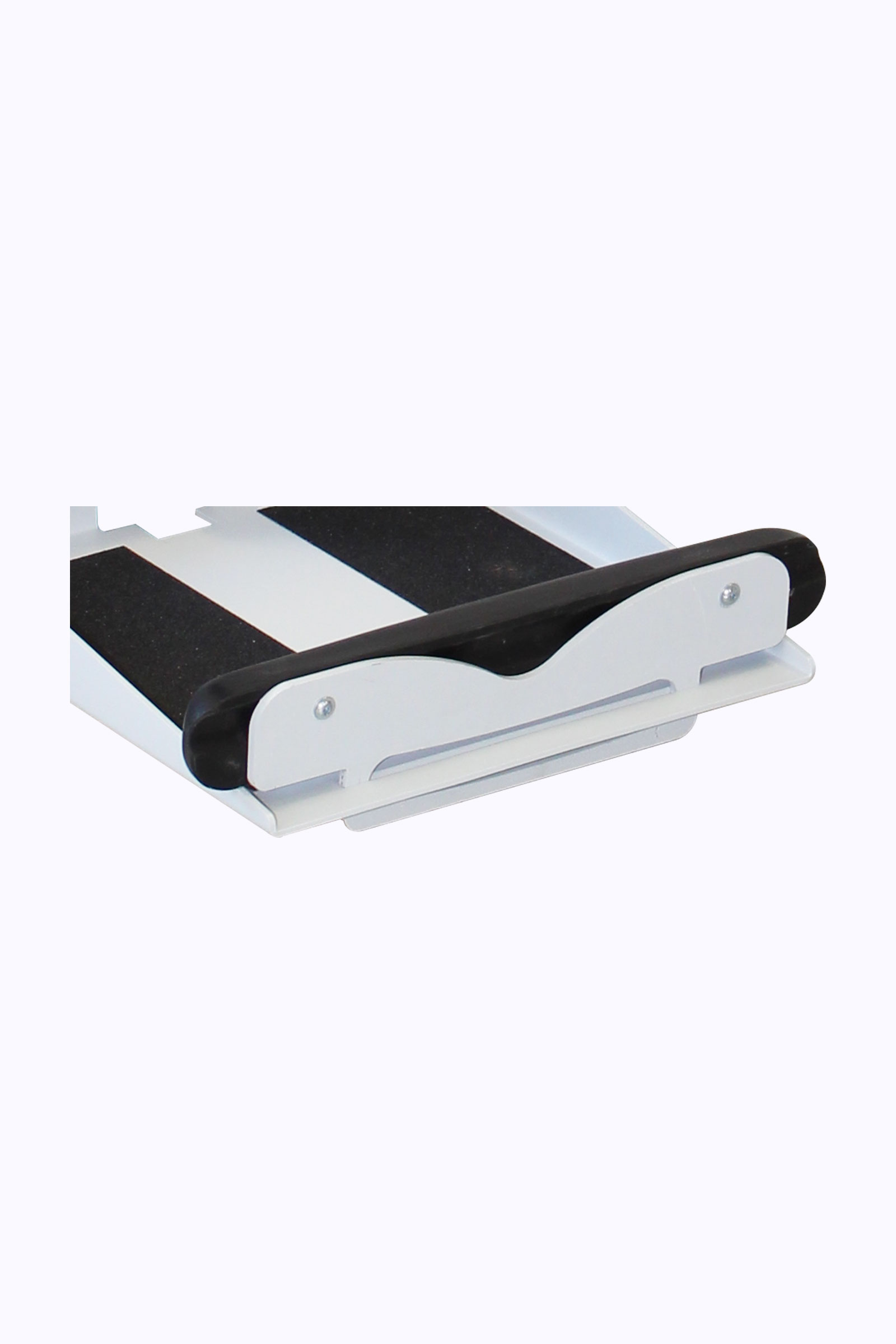

A comfortable lined with foam removable heel pad to easily position the patient feet before a transfer.

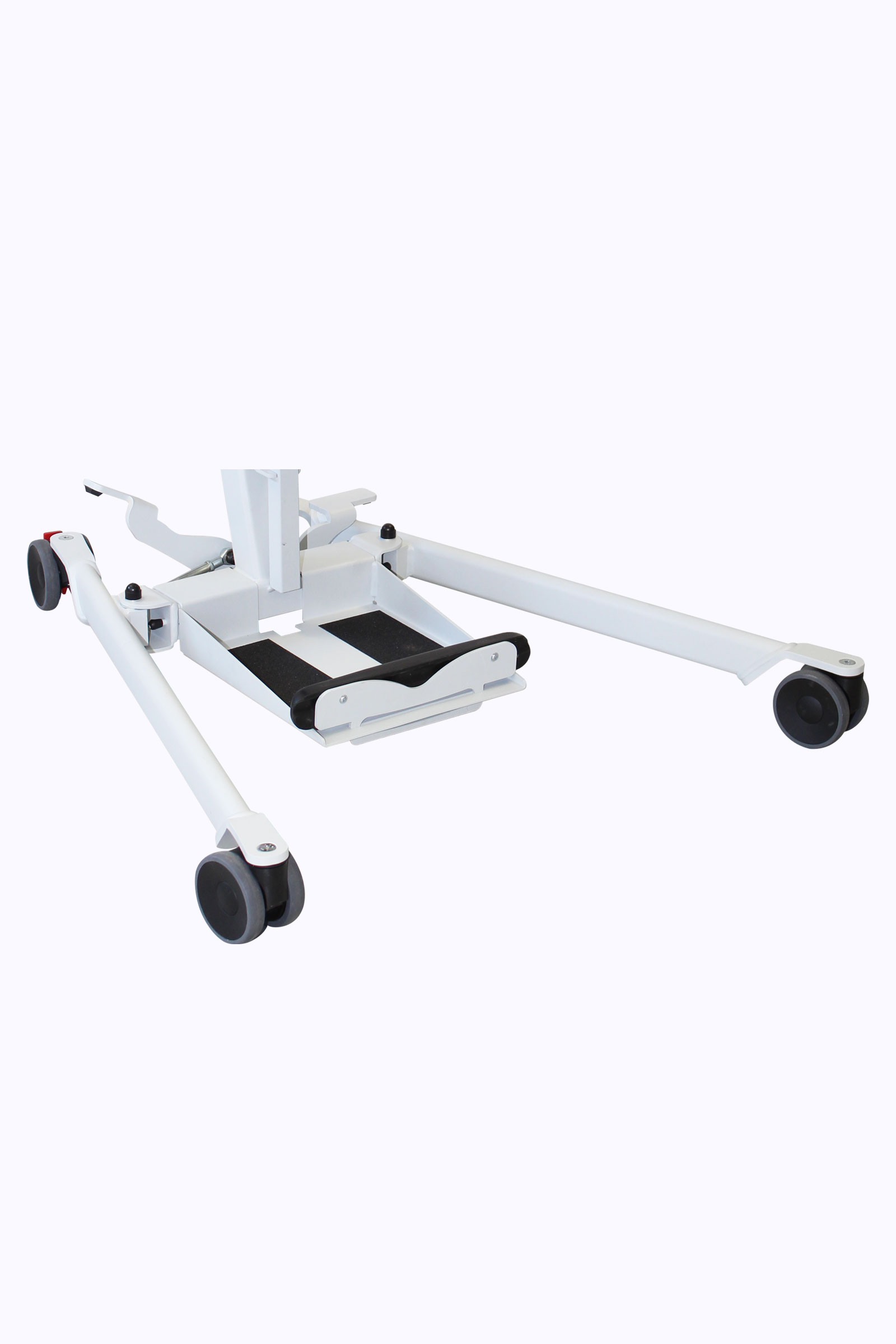

It is equipped with a mechanical opening base legs (up to 90 cm) which permits an ease of access to armchairs or wheelchairs.
Its design is optimized for comfort and allows to effectively perform a change with the complete release of the patient’s lower body.
Stronger than the WAYUP 4, the maximum weight capacity has been increased to 180 kg.
As options, a lithium battery is available to enhance the use of the device and a calf strap to provide a better feeling of safety (warranted 2 years).
USE

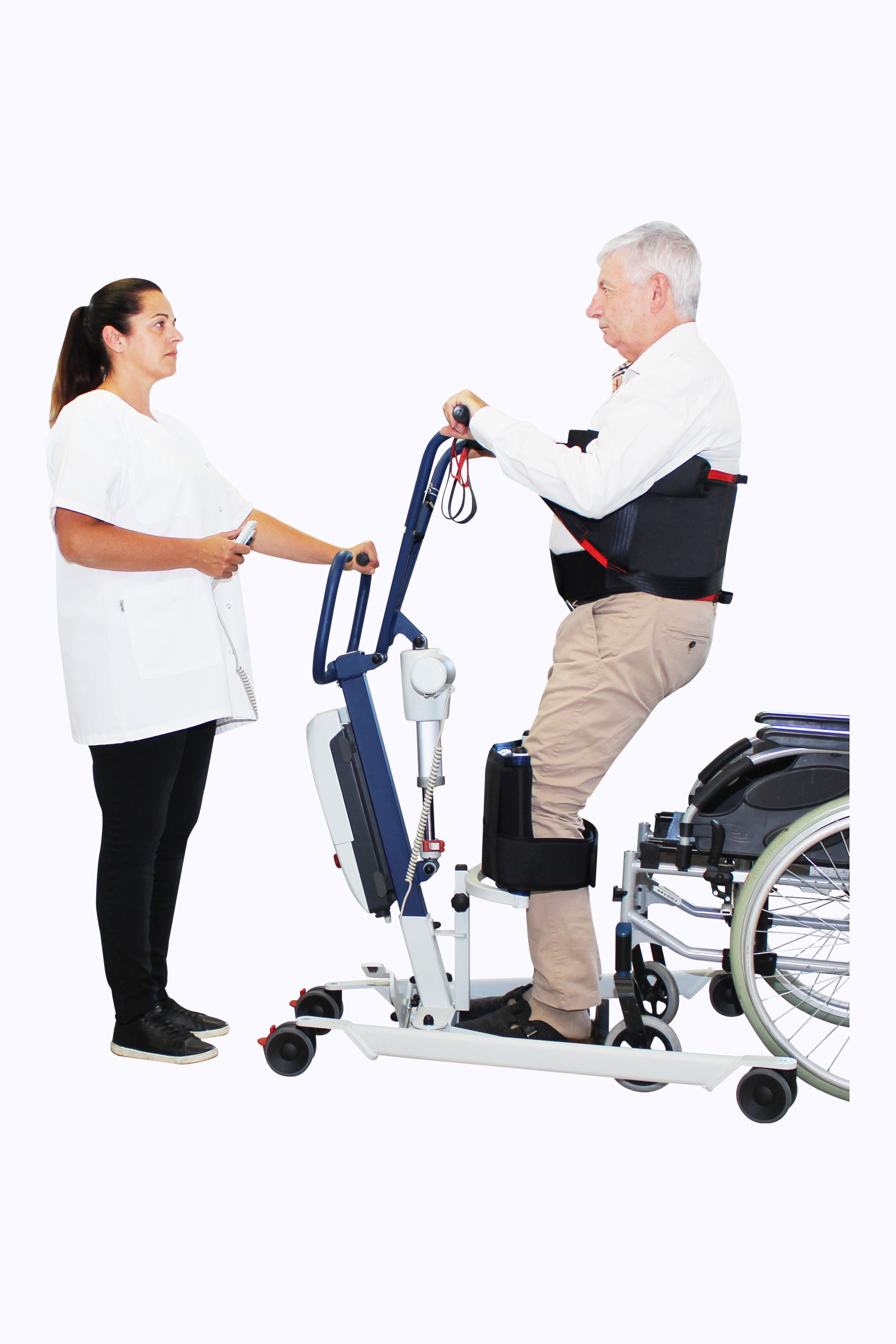

The device allows the patient to reach a standing position (total or partial) by activating her bust tonicity and supports the lack of tonicity while stimulating the natural raising scheme.
Its opening mechanical base legs, allows large widths armchairs or wheelchairs and an ease of access.
ADVANTAGES
Activation of mobility and transit during daily transfers
Optimized design for comfort
Opening base legs for an ease of access to armchairs or wheelchairs
Complete release of the patient’s lower body to effectively perform a change
CE certified
Class 1 medical device
Weight capacity: 180 kg
Lifting actuator power: 8 000 N
Total weight with mechanical opening legs: 36 kg
Total weight with electrical opening legs: 38 kg
Steel manufacturing
Double ball bearing castors
Standard: NF EN ISO 10535:2007
Warranty: 5 years (except battery and breakage)
Total length: 100 cm
Minimum lifting height: 82 cm
Maximum lifting height: 135 cm
Total height: 106 cm
Frame height: 11 cm
Minimum base width: 54 cm
Maximum base width with mechanical opening legs: 90 cm
Maximum base width with electrical opening legs: 100 cm
Turning diameter: 110 cm
Mechanical opening
With standard battery: WAYUP5ECP-M-PF
With lithium battery: WAYUP5ECP-M-LI-PF
Electrical opening
With standard battery: WP5ECP-E2-PF
With lithium battery: WP5ECP-E2-LI-PF
