WAYUP 5
fixed base

WAYUP 5
fixed base

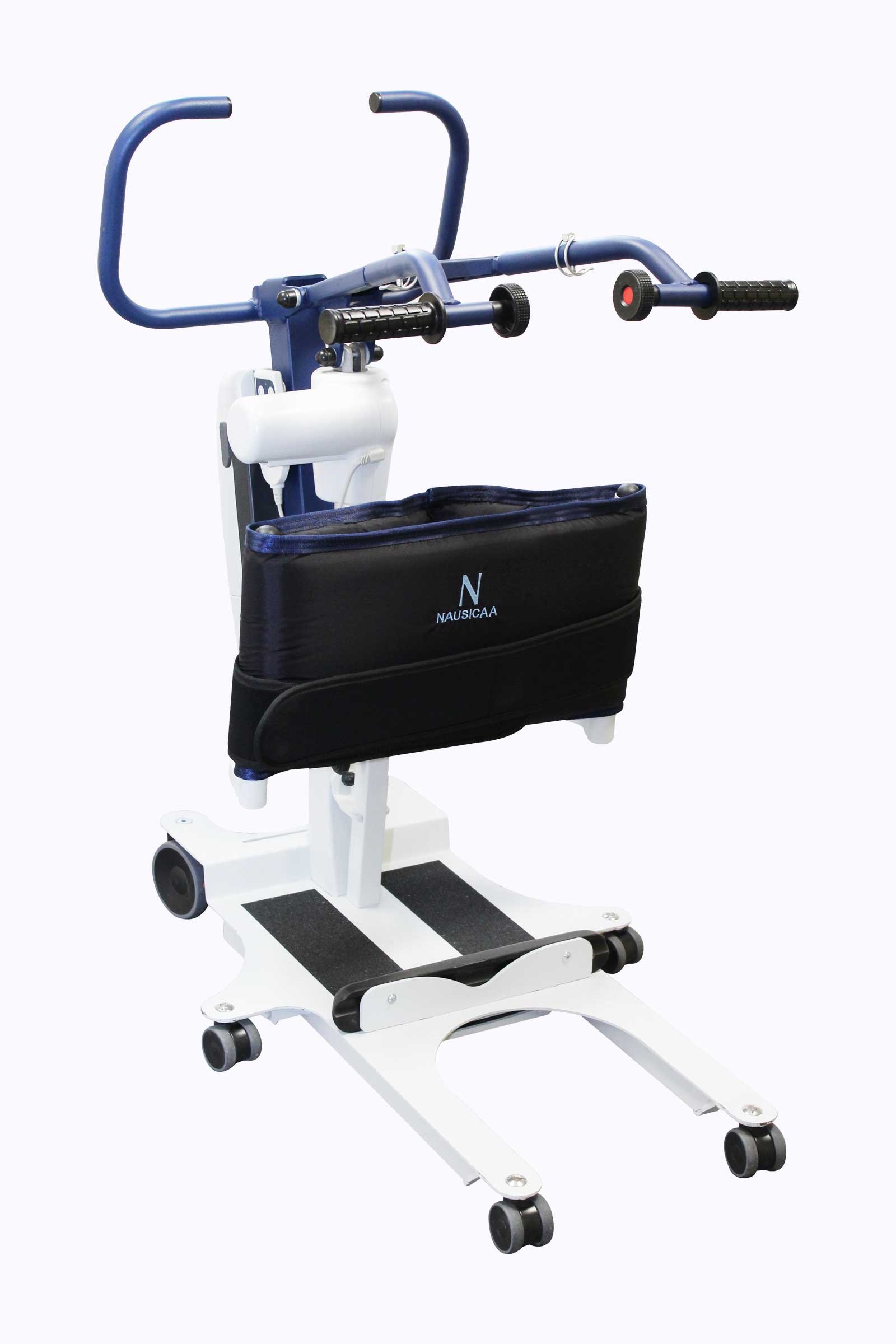

Totally different than other devices on the market, the WAYUP 5 is specially optimized for confined spaces with its extreme compactness (56 cm base width) and its remarkably low toilet shape base (6,5 cm overall height). Its weight capacity has been increased to 180 kg.



NEW KEY FEATURES

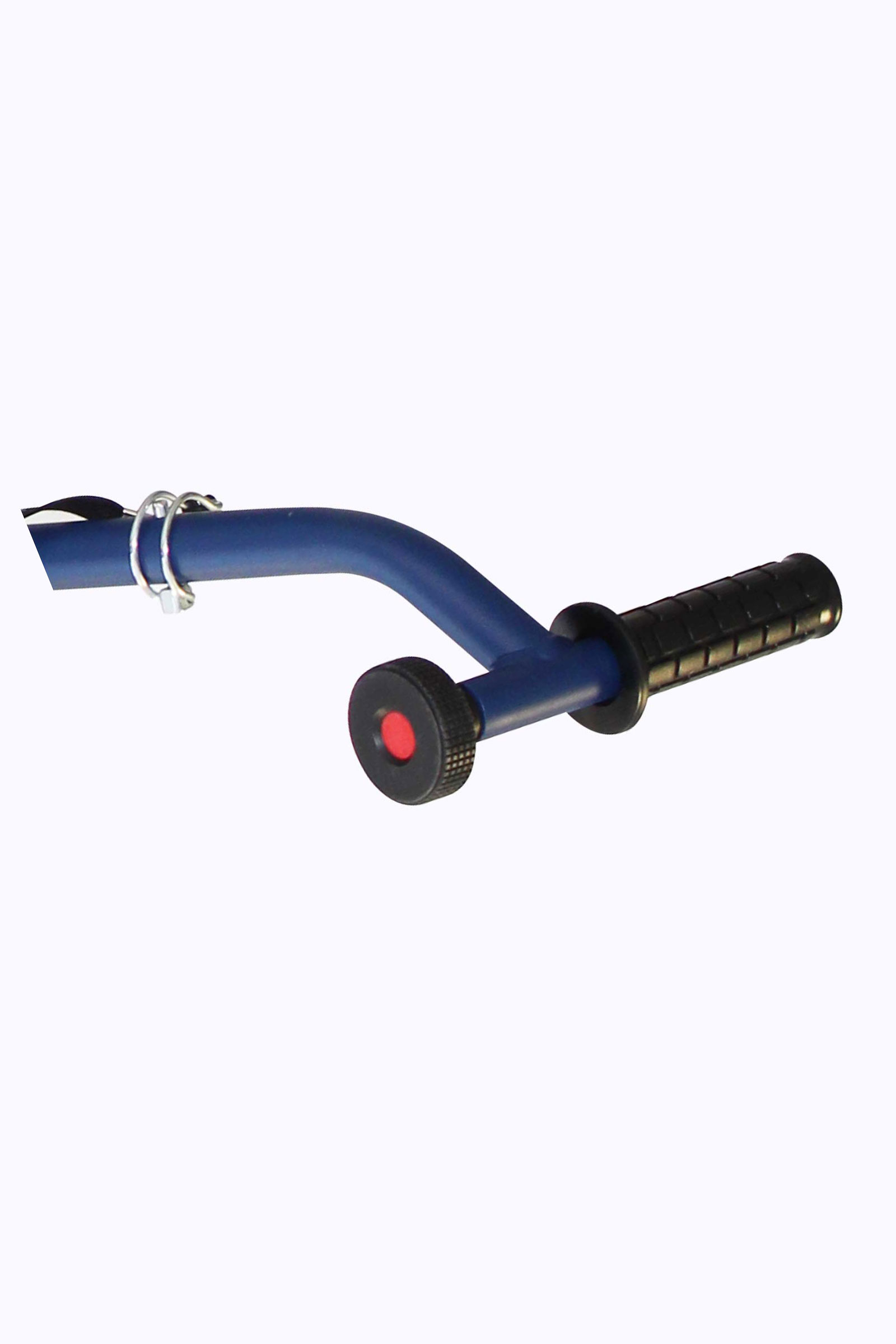

An innovative expandable lifting arm in 2 parts which can be adjusted to 3 different lengths positions to adapt to each patient’s morphology for the best possible care.
In addition, the lifting arm is also reversable to allow 2 different heights configurations to optimize the sling position:
– on the lumbar region to operate a semi-active transfer
– under the armpits to operate a semi-passive transfer
A made in our textile workshop ergonomic knee block manufactured with fabric and foam to protect vulnerable knees.
Equipped with a calf-strap as standard to secure the legs.

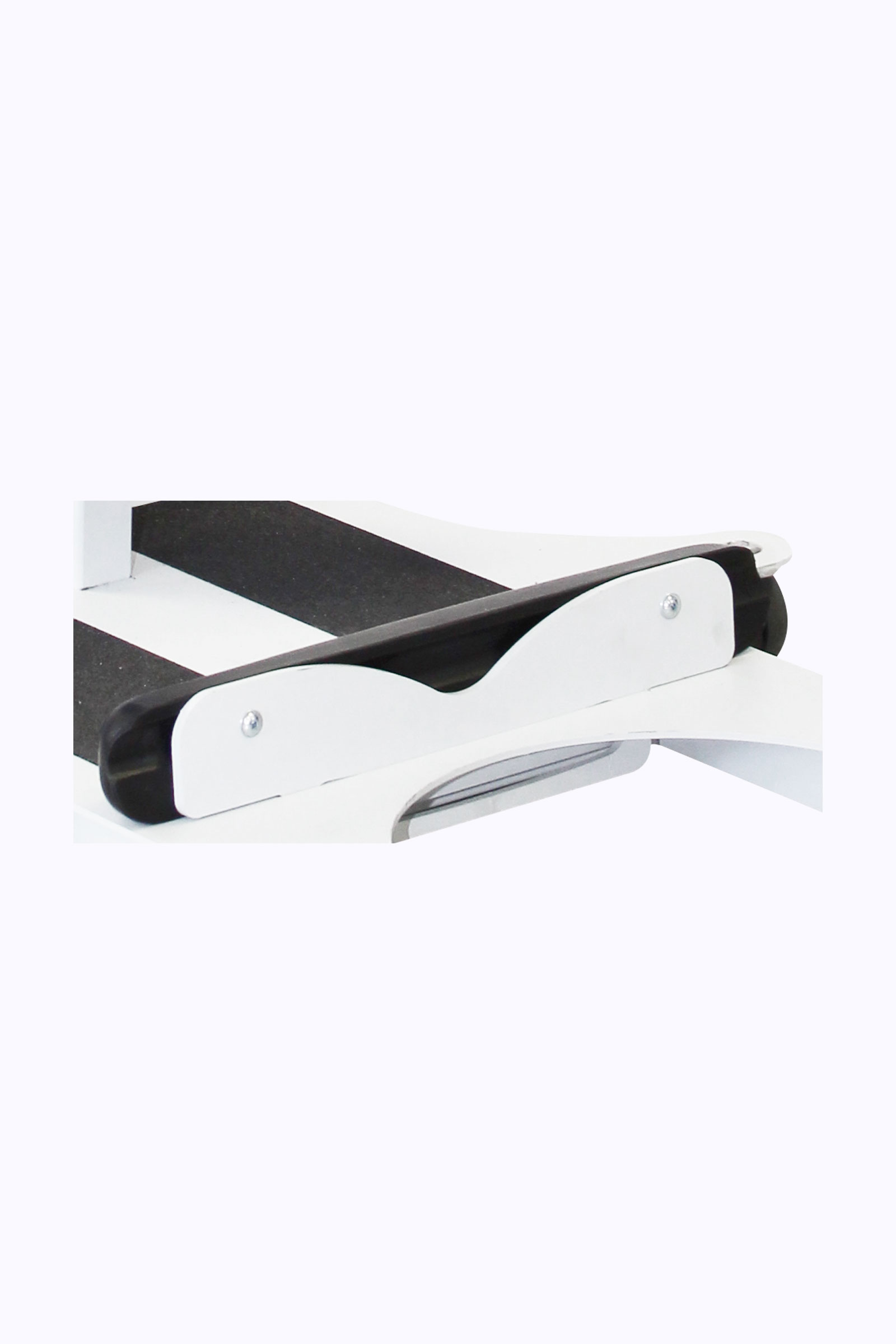

A comfortable lined with foam removable heel pad to easily position the patient feet before a transfer.
Lowered castors to achieve a 6,5 cm height to gain access to electrical wheelchairs with very low bases.

More ...

Designed with a toilet shape, it is specially optimized for confined spaces.

Stronger than the WAYUP 4, the maximum weight capacity has been increased to 180 kg.

As options, a lithium battery is available to enhance the use of the device and a calf strap to provide a better feeling of safety (warranted 2 years).



USE
The device supports the lack of tonicity in the lower body and a low bust tonicity.

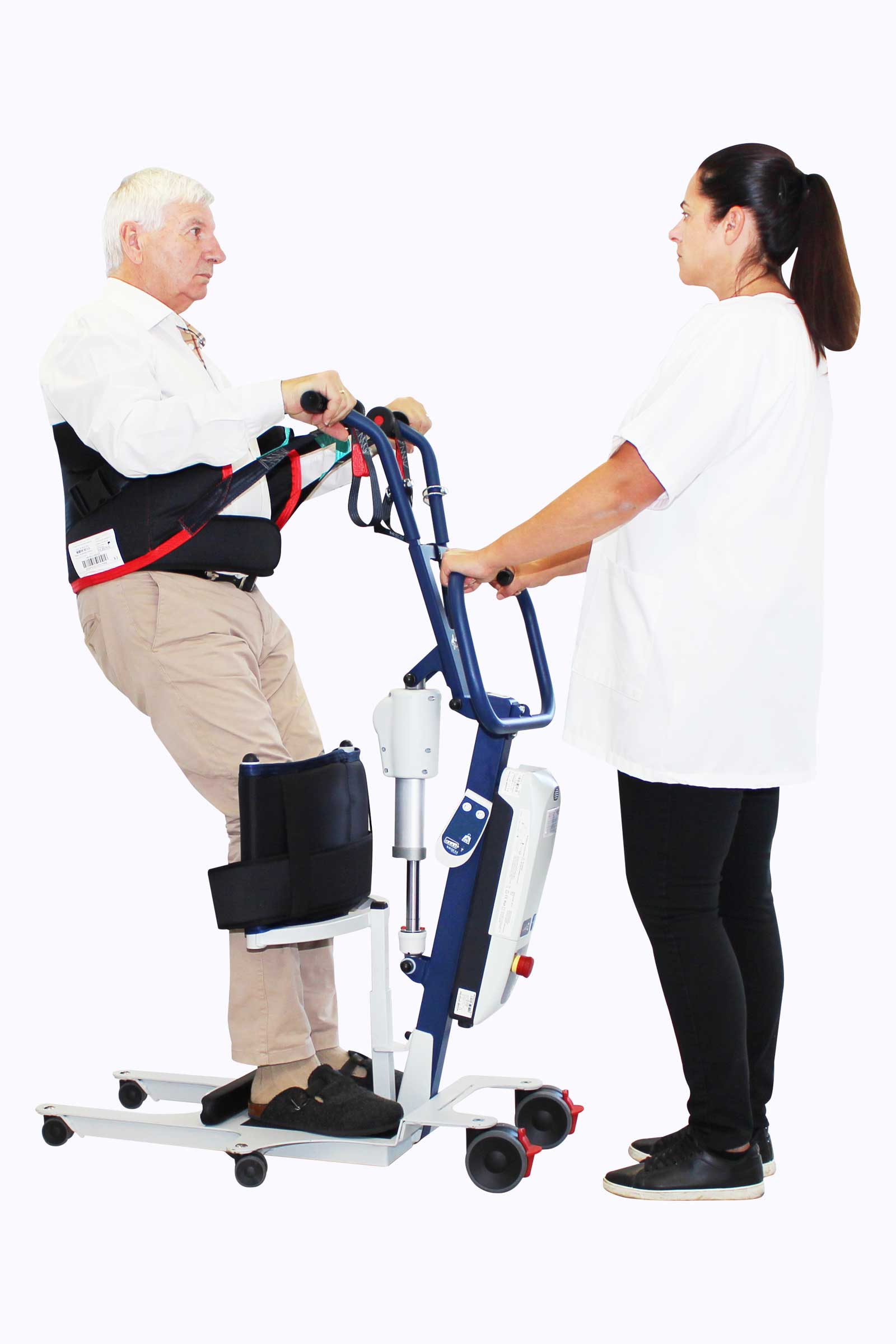

It allows the patient to reach a standing position (total or partial) by activating her bust tonicity, while respecting the natural lifting scheme of the body.



ADVANTAGES
Activation of mobility and transit during daily transfers
Optimized design for comfort
Extreme compactness for ease of use
Complete release of the patient’s lower body to effectively perform a change
Very convenient device suitable for confined spaces

SKU: WAYUP5-PF WAYUP5-LI-PF Category:
Video

Specifications

Made in France

CE certified

Class 1 medical device

Weight capacity: 180 kg

Lifting actuator power: 8 000 N

Total weight: 29 kg

Steel manufacturing

Double ball bearing castors

Standard: NF EN ISO 10535:2007

Warranty: 5 years (except battery and breakage)

Dimensions

Total length: 95 cm
Minimum lifting height: 80 cm
Maximum lifting height: 133 cm
Total height: 100 cm
Frame height:: 6,5 cm
Minimum base width: 24 cm
Maximum base width: 56,5 cm
Turning diameter: 90 cm

References

WAYUP5-PF (standard battery)
WAYUP5-LI-PF (lithium battery)
