EASYLEV PLUS
electrical opening legs

EASYLEV PLUS
electrical opening legs

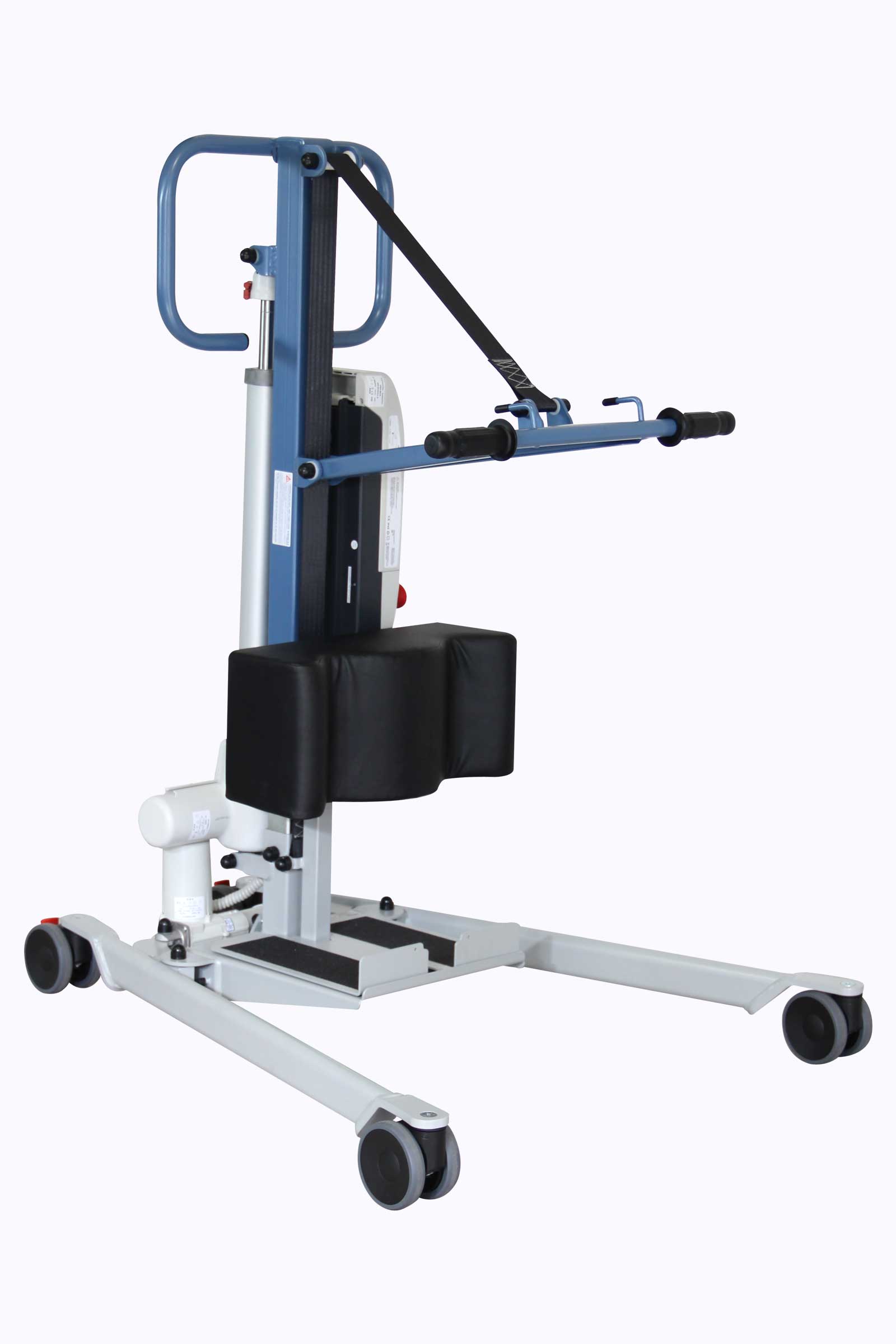

CE certified and manufactured in France, the EASYLEV with electrical opening legs is a high-end stand-up lift, made in steel and whose maximum lifting capacity is 150 kg.

The addition of a second actuator to electrically spread the legs of the device (up to 94 cm) offers more efficiency to the caregiver to effectively perform a change with the complete release of the patient’s lower body.

As options, a lithium battery is available to enhance the use of the device and a calf strap to provide a better feeling of safety.

More ...

USE
The device supports a very low tonicity of the patient’s bust through the combined motion of the telescopic mast and of the traction sling which provides a high level of comfort and flexibility to the patient during the standing up process.

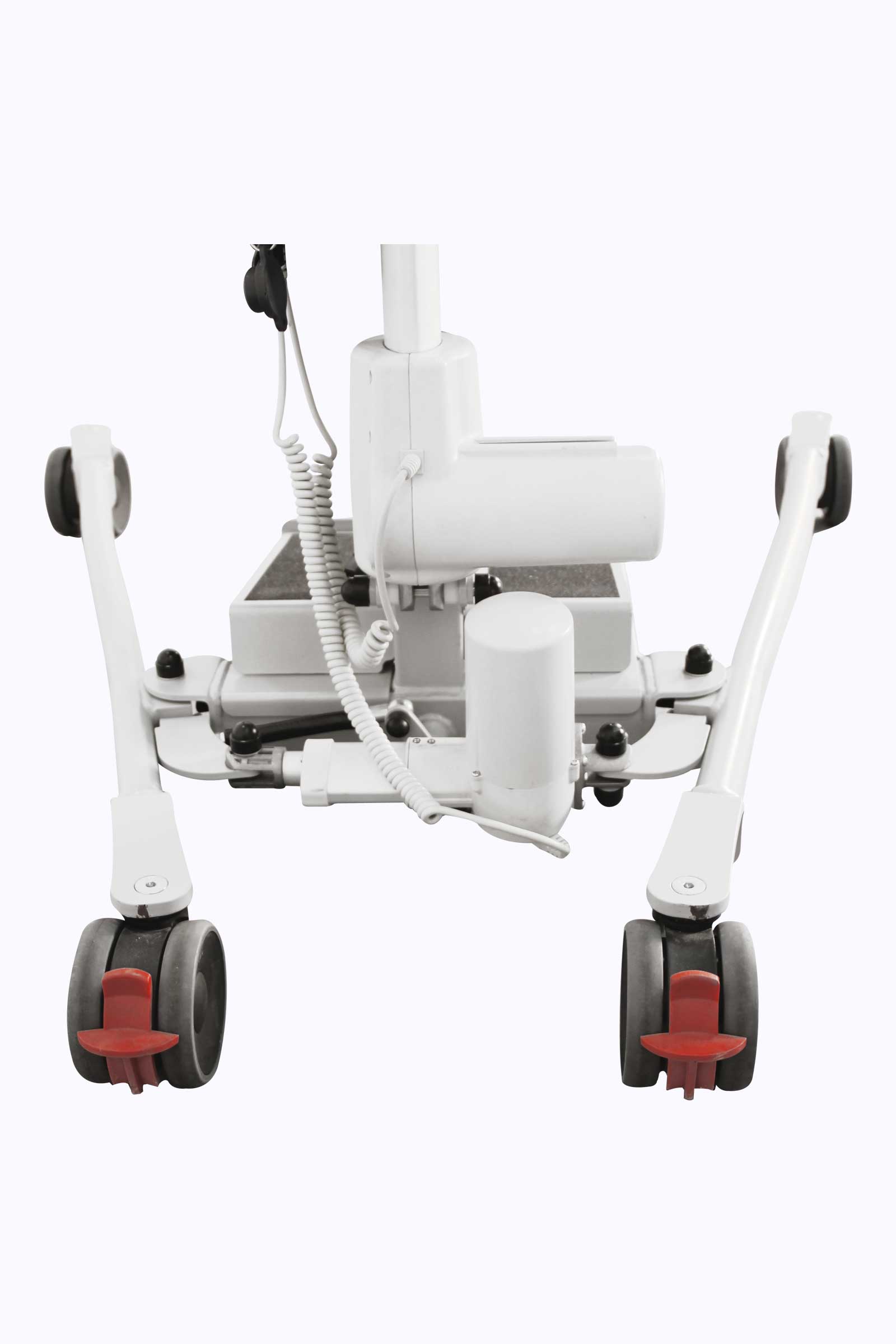

Its opening electrical base legs, from 54 cm to 94 cm, allows large widths armchairs or wheelchairs and an ease of access.



ADVANTAGES
– Activation of mobility and transit during daily transfers
– Combined movement providing a high level of comfort
– Opening base legs for an ease of access to armchairs or wheelchairs
– Perfected for patients with very low tonicity
– Complete release of the patient’s lower body to effectively perform a change



KEY FEATURES

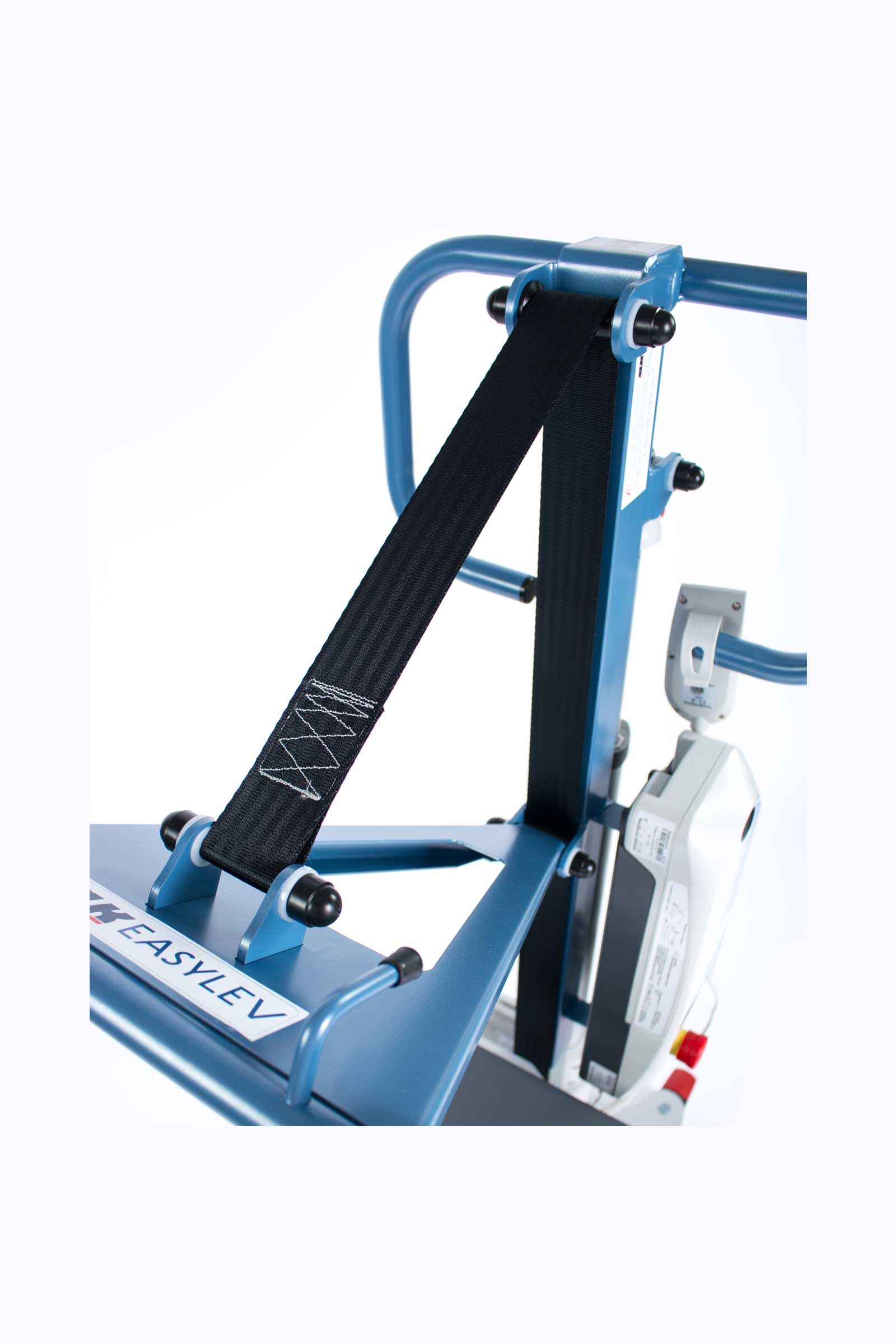

– Traction belt for a patented combined movement increasing patient comfort

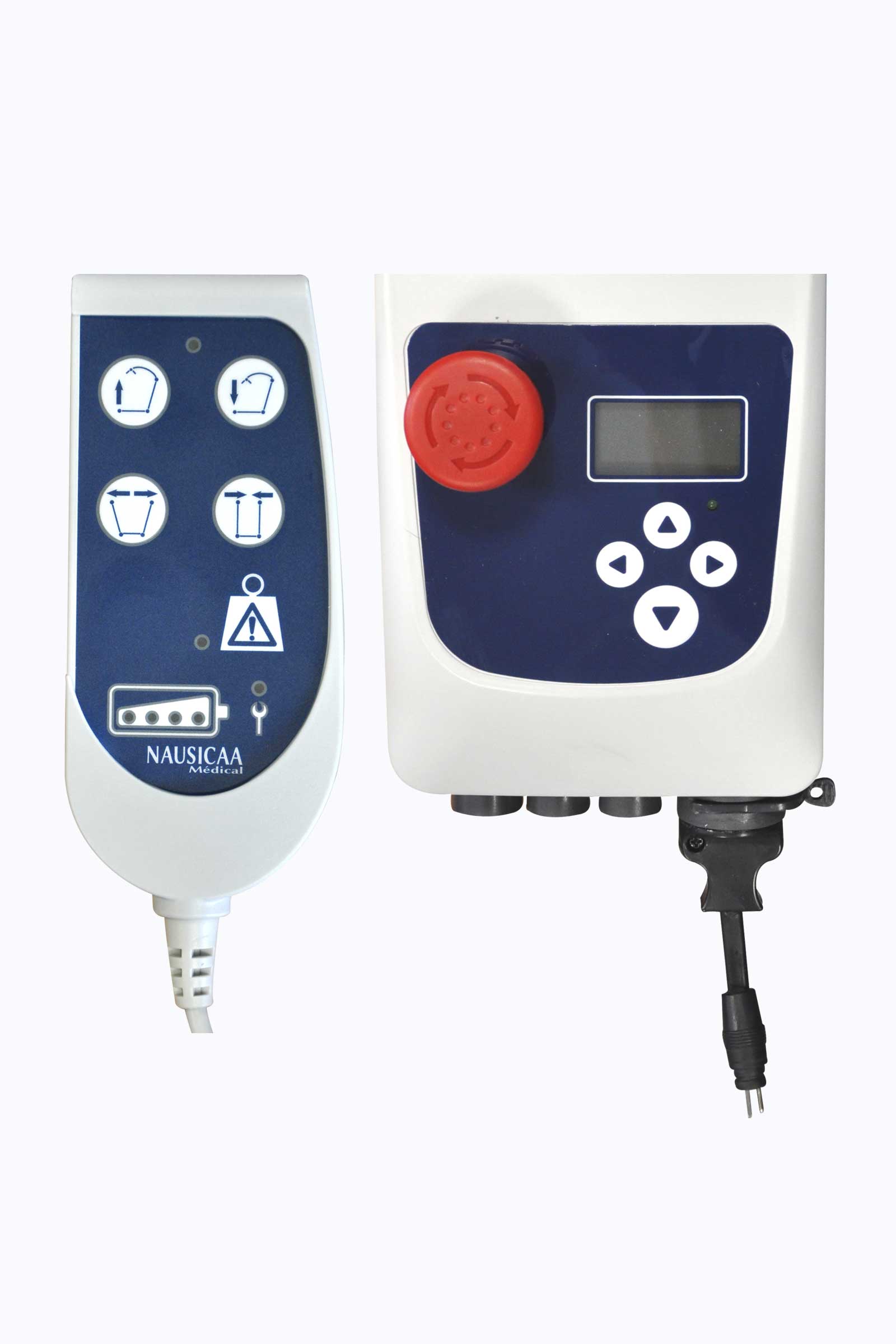

– New motorisation: updated software for an enhanced use

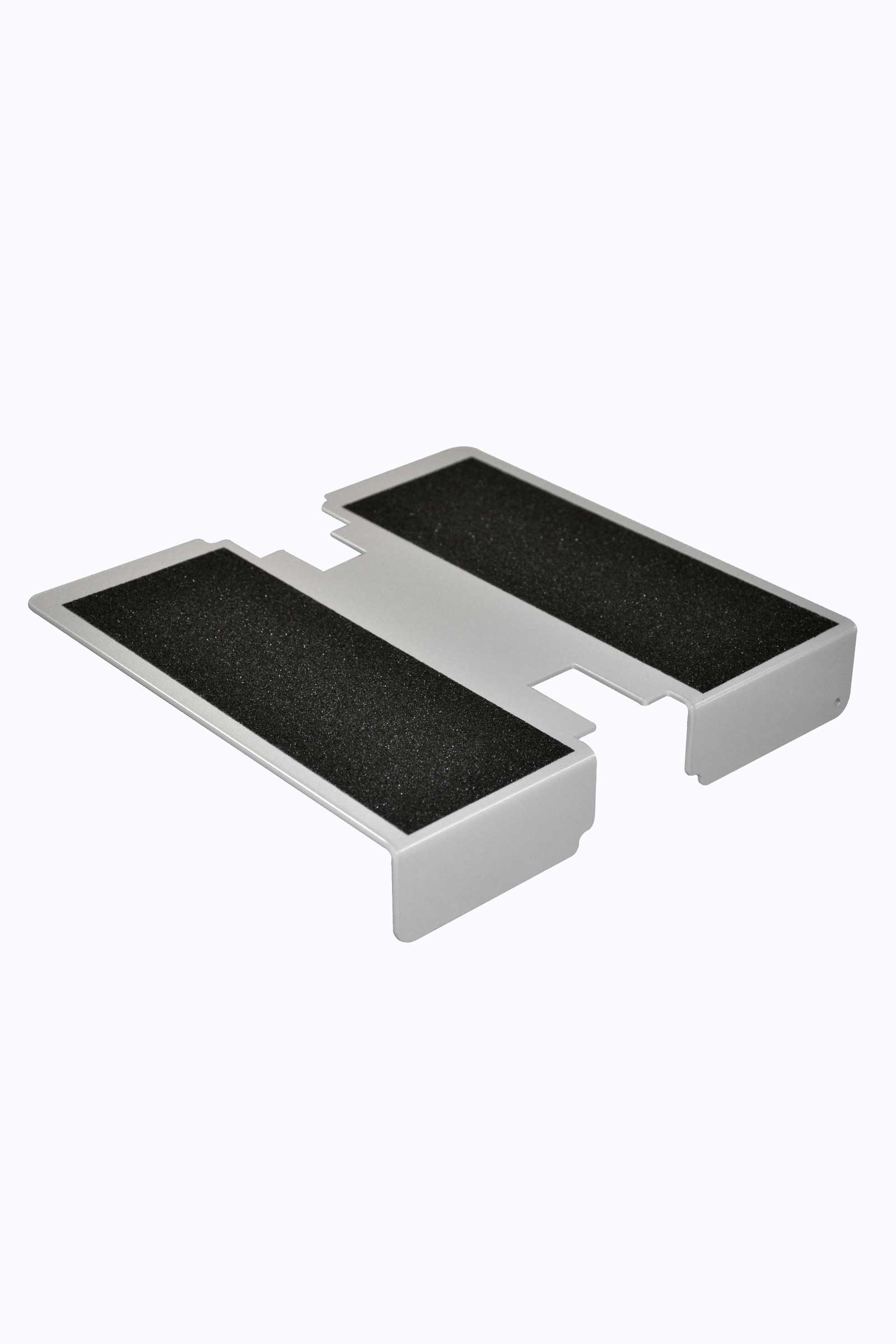

– Removable 3-function footrest: heel block, trendelenburg, reverse trendelenburg
– Electrical opening legs

Category:
Video
Specifications

Made in France

CE certified

Class 1 medical device

Weight capacity: 150 kg

Lifting actuator power: 3 000 N

Electrical opening actuator power: 3 000 N

Total weight: 43 kg

Steel manufacturing

Epoxy baked painting

Double ball bearing castors

Standard: NF EN ISO 10535:2007

Warranty: 5 years (except battery and breakage)

Dimensions

Total length: 990 mm
Minimum lifting height: 690 mm
Maximum lifting height: 1620 mm
Total height: 1110 mm
Height of chassis: 113 mm
External width legs closed: 540 mm
Internal width legs open: 940 mm
Turning diameter: 1110 mm

References

EASYLEVECP-E-PF (electrical opening-standard battery)
EASYLEVECP-E-LI-PF (electrical opening-lithium battery)
