Bariatric XL

Bariatric XL

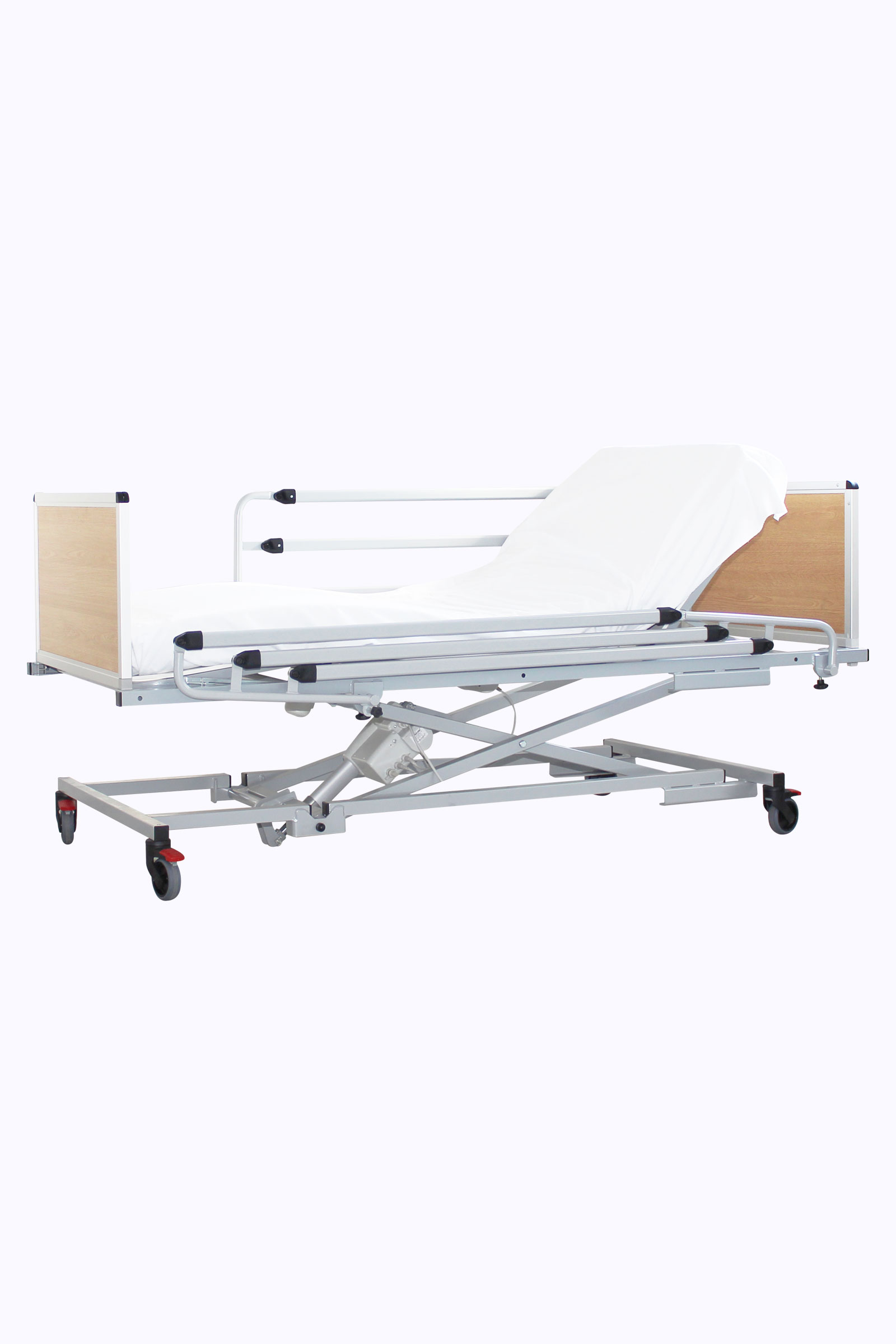

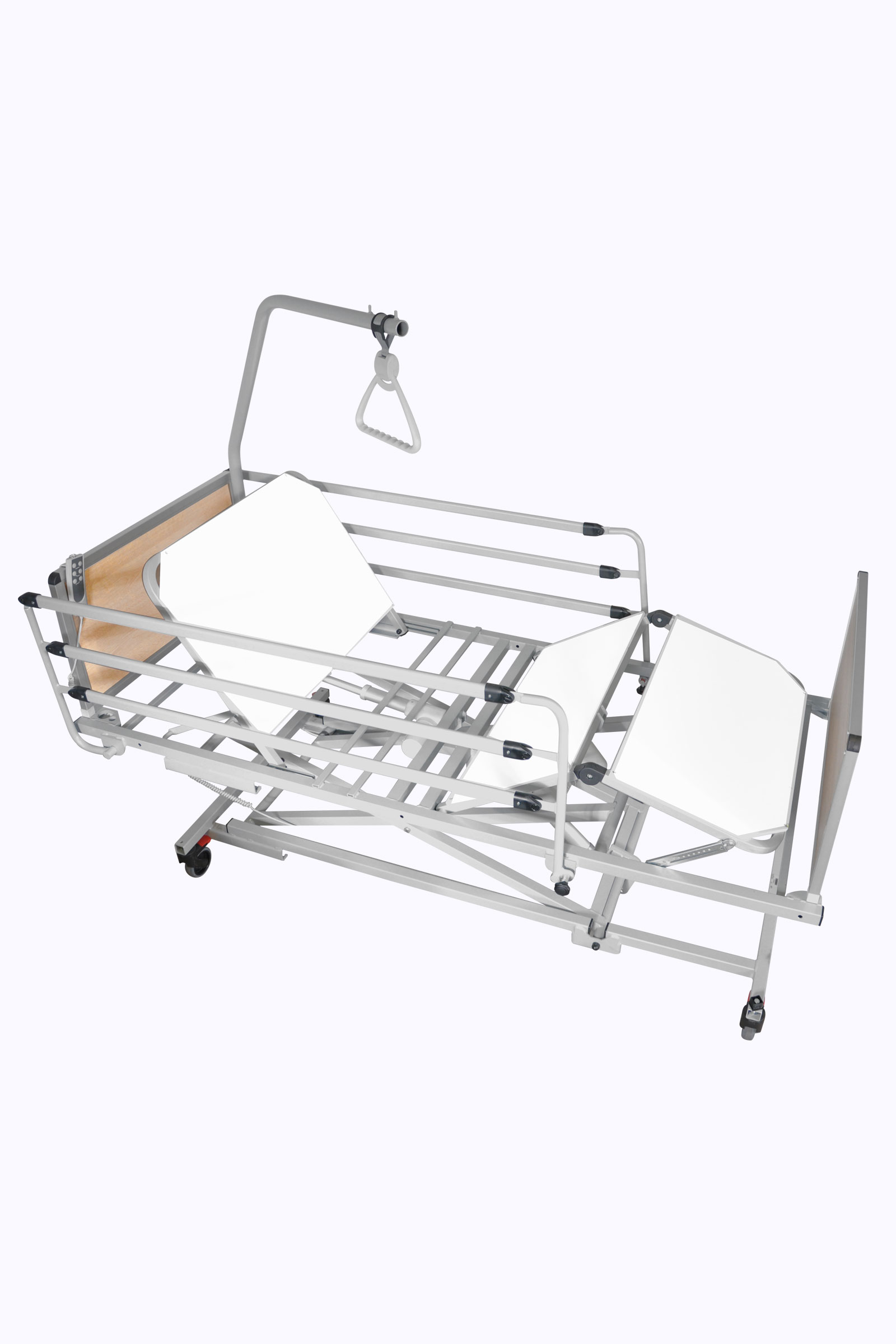

The CONVERTISS Bariatric XL provides 3 functions with a weight capacity of 200 kg as standard to handle bariatric patients.

It is equipped with a translation raising backrest which aims to raise the bariatric patient in a secure way in order the best position while avoiding abdominal shear, and with a leg rest section with knee bending providing an optimized sitting comfort, reducing friction and preventing the patient from sliding down.

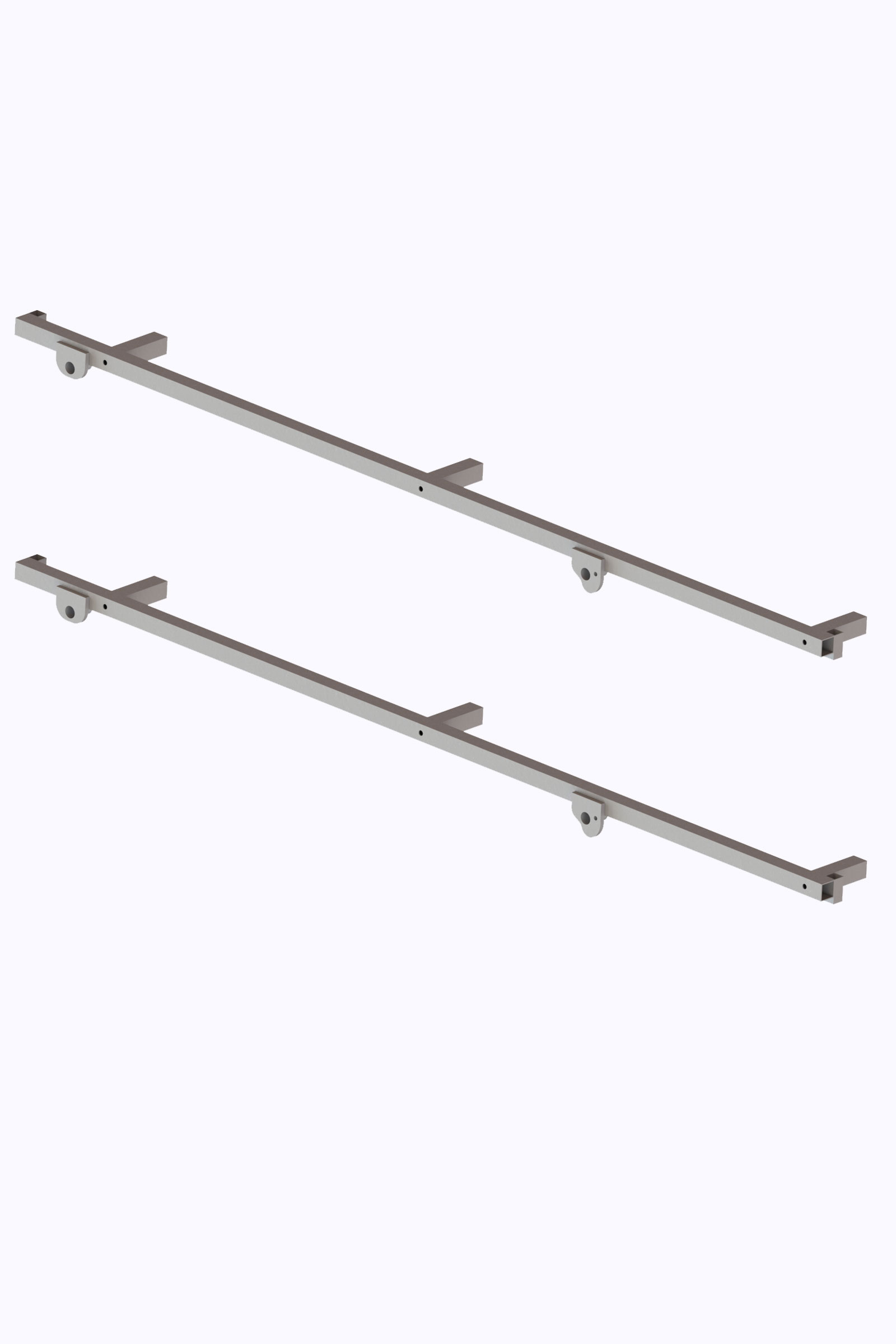

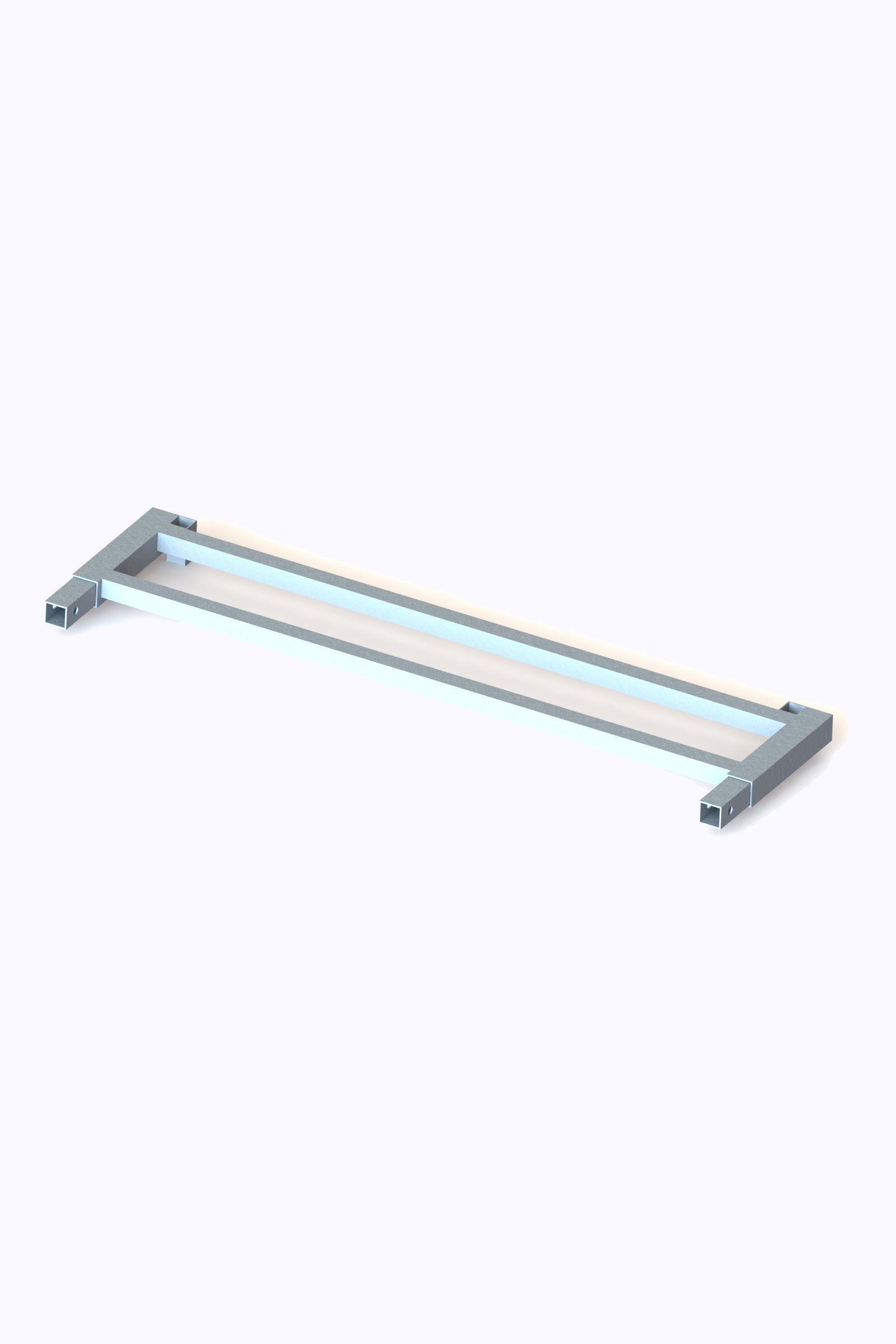

Its main advantage is its ability to easily transition, with affordable kits, from a standard medical bed (90 cm width – 200 cm length) to a more specialized model (up to 120 cm width – 220 cm length) to fit different morphologies without purchasing a new medical bed.



SKU: CONVERTISS-3F-PF Categories: ,

Made in France

CE certified

Class 1 medical device

Weight capacities: 200 kg

Lifting/lowering actuator power: 8 000 N

Backrest actuator power: 3 000 N

Leg rest actuator power: 3 000 N

Total weight: 75 kg

Steel manufacturing

Ball bearing castors

Applicable standards:
• NF EN 60601-1 : 2016 Safety for medical electrical equipment
• NF EN 60601-1-2 : 2015 Electromagnetic compatibility
• NF EN 60601-2-52 : 2010 Medical electrical equipment : Particular requirements for basic safety and essentialperformance of medical beds

Warranty: 5 years


Overall length: 206 cm
Overall width: 90 cm
Bed base length: 203 cm
Bed base width: 84,5 cm
Minimum height: 30,5 cm
Maximum height: 80 cm
