NAUSILEV 3

NAUSILEV 3-1

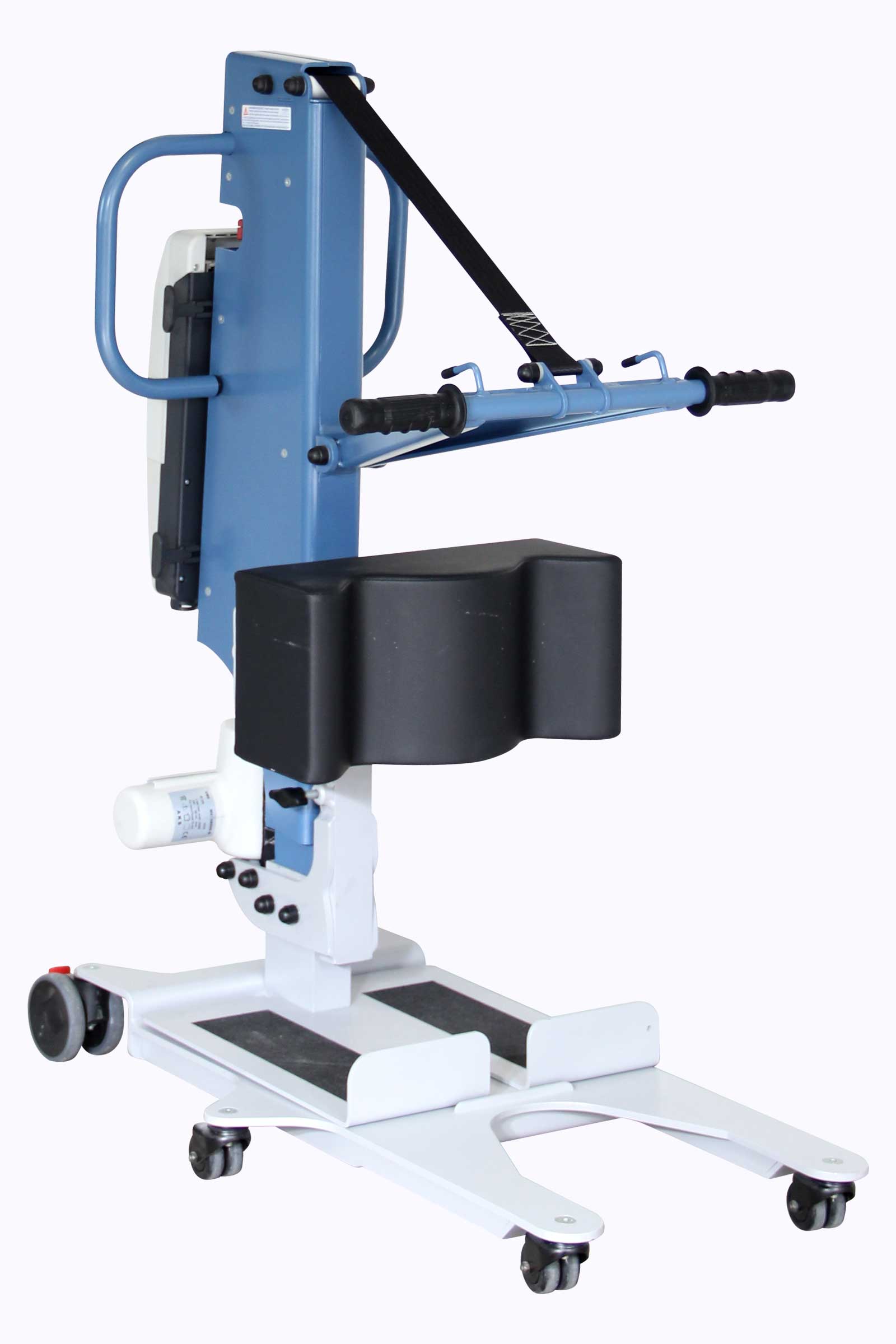

NAUSILEV 3

CE certified and manufactured in France, the NAUSILEV 3 is a premium stand-up lift, made in aluminium and whose maximum lifting capacity is 200 kg.

Due to the specificity of its combined movement associated with its manufacturing specificity, it allows the caregiver to provide high quality care during transfers.

As an option, it is available with a lithium battery which enhances the use of the device by increasing the time of use and reducing the charging time.

More ...

USE

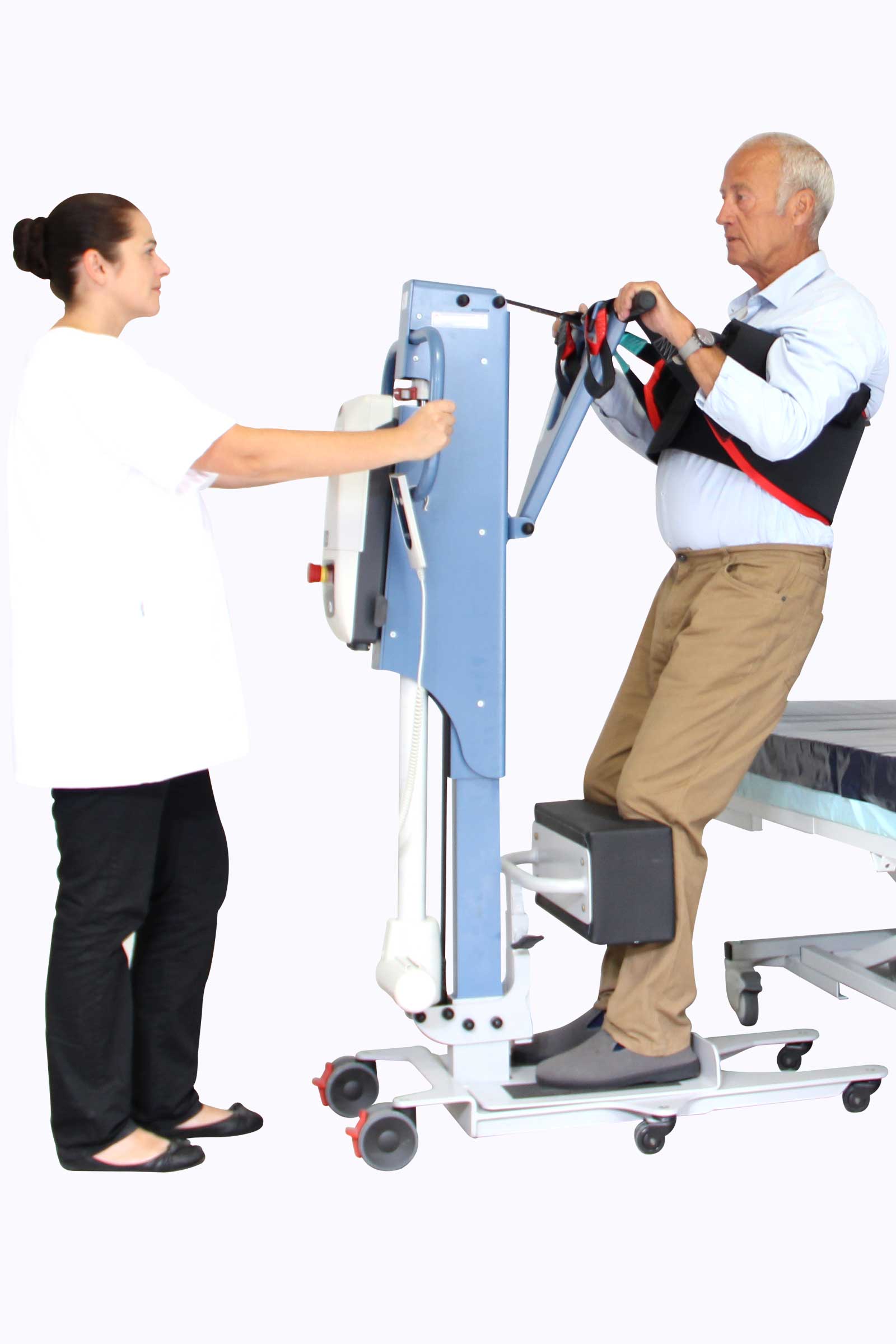

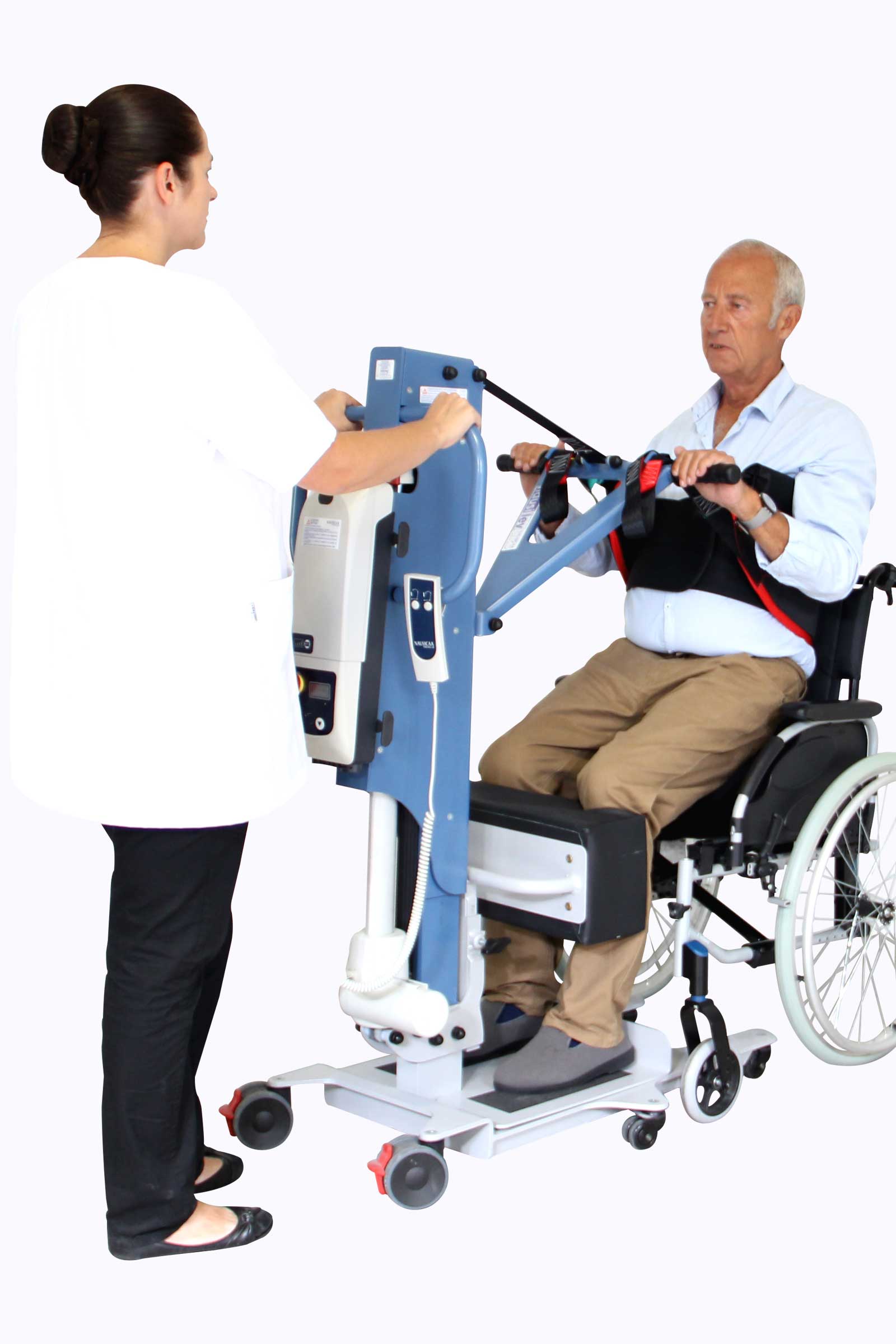

The device supports a very low tonicity of the patient’s bust and activates it while respecting the natural raising scheme.
The aluminium manufacturing associated to the combined motion of the telescopic mast and of the traction sling provides a high level of comfort and flexibility to the patient during the standing up process.



SELECTION ADVICE
The NAUSILEV 3 is mostly recommended:
– for a patient who is independent and ambulatory
– for a patient who has some degree of self-support
– for a patient who is able to bear some weight on at least one leg and sits in a wheelchair
Regarding the most adapted sling for this model, we recommend the Standard Sling.



ADVANTAGES
– Activation of mobility and transit during daily transfers
– Combined movement providing a high level of comfort
– Perfected for patients with very low tonicity
– Complete release of the patient’s lower body to effectively perform a change
– Made of aluminium to increase the ease of handling



KEY FEATURES

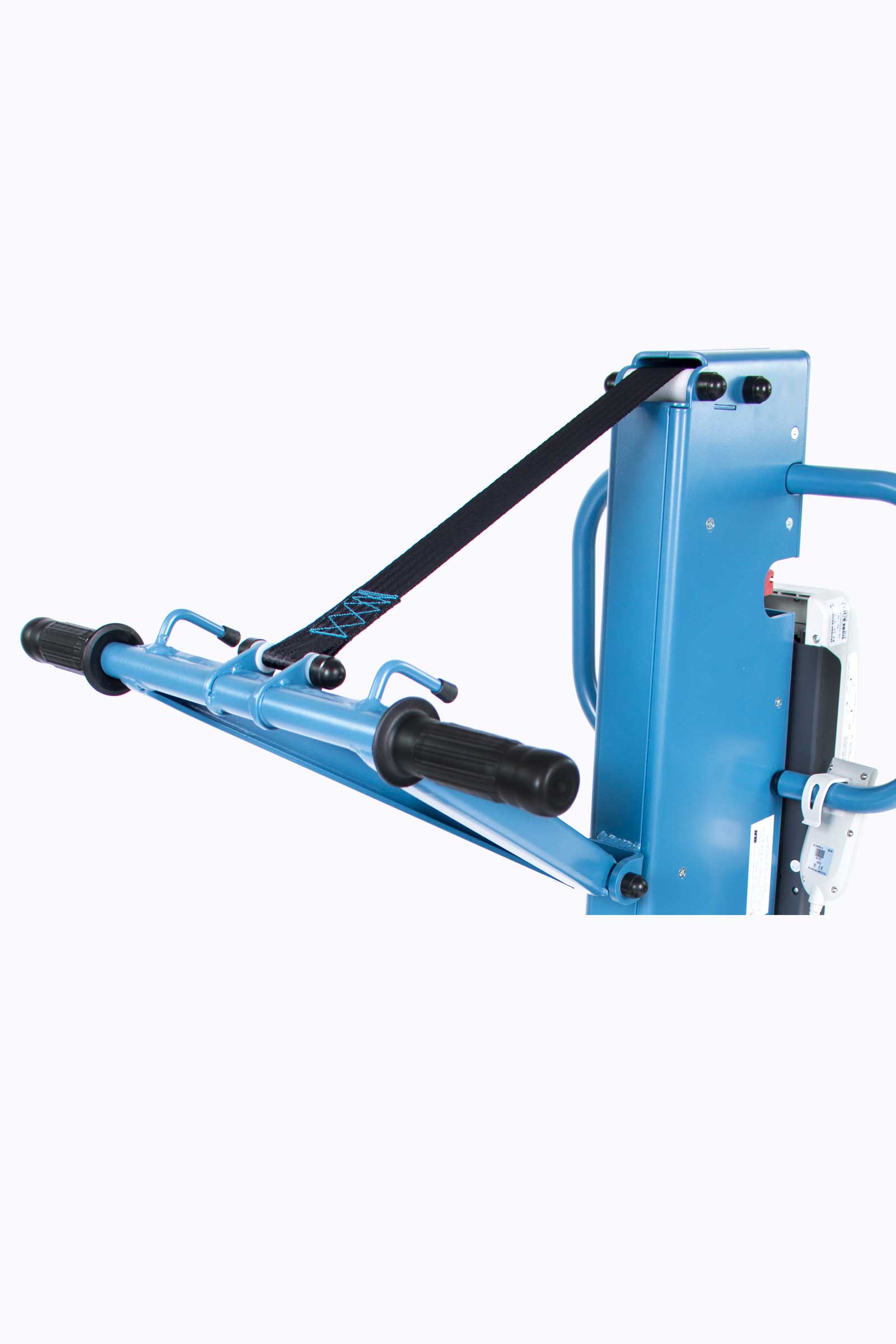

– Traction belt for a patented combined movement increasing patient comfort

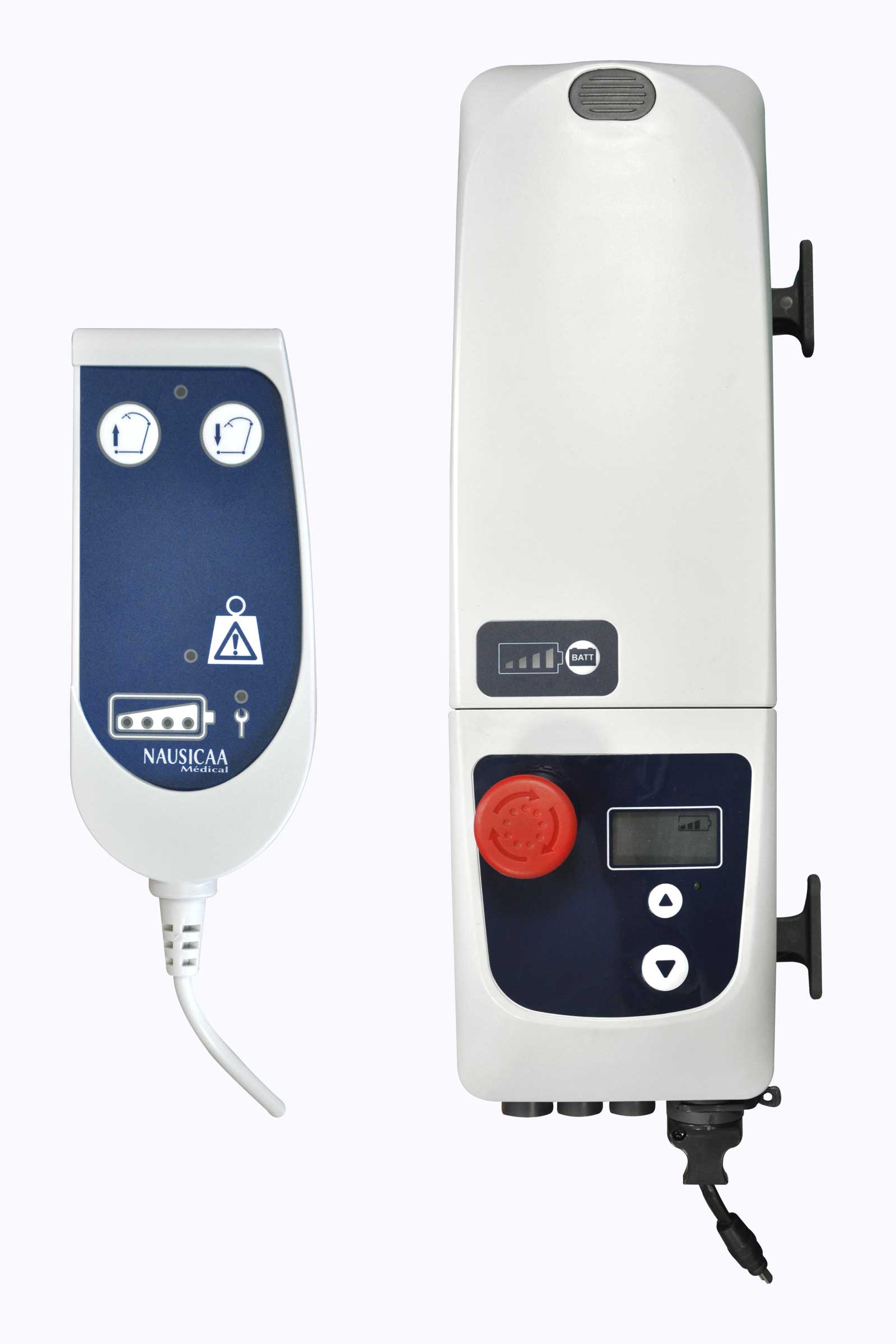

– New motorisation: updated software for an enhanced use

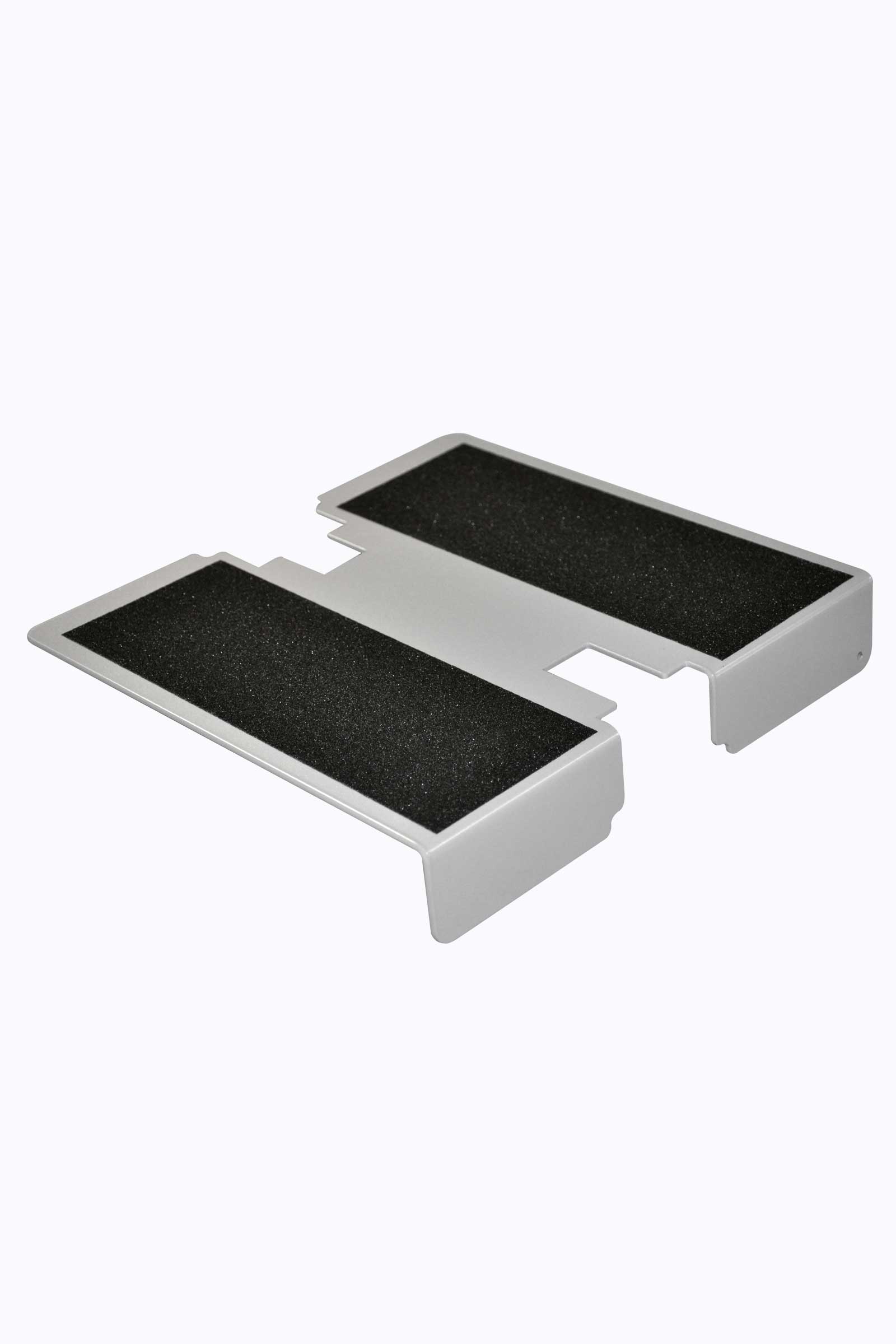

– Removable 3-function footrest: heel block, trendelenburg, reverse trendelenburg

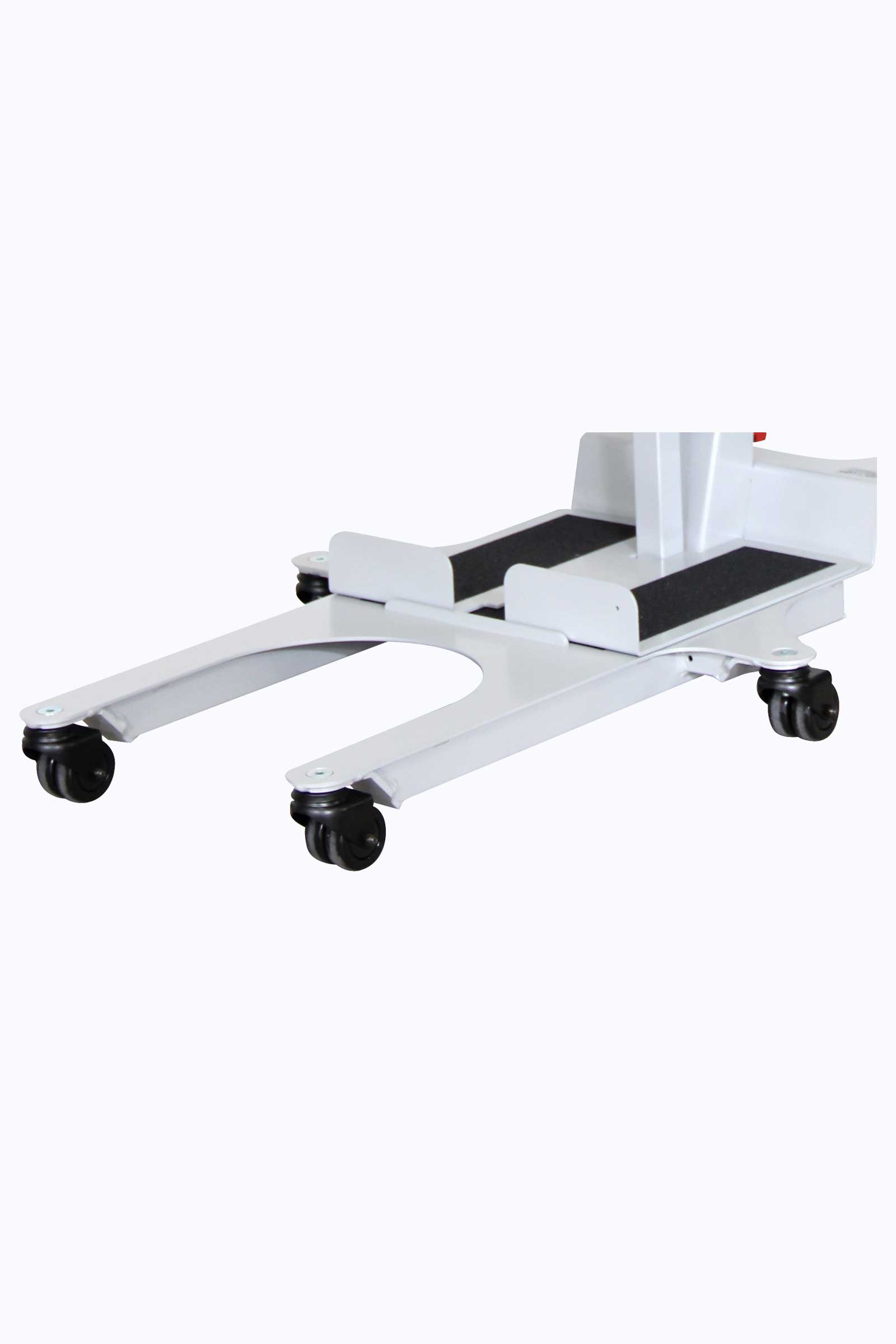

– Compact base adapted to toilet shape

Category:
Video
Description

Made in France

CE certified

Class 1 medical device

Weight capacity: 200 kg

Lifting actuator power: 3 000 N

Total weight: 43 kg

Aluminium manufacturing

Epoxy baked painting

Double ball bearing castors

Standard: NF EN ISO 10535:2007

Warranty: 5 years (except battery and breakage)

Option: lithium battery – 2 years warranty

Dimensions

Total length: 910 mm
Minimum lifting height: 750 mm
Maximum lifting height: 1630 mm
Total height: 1140 mm
Height of chassis: 80 mm
Minimum base width: 400 mm
Maximum base width: 585 mm
Turning diameter: 975 mm

References

NAUSILEV3-PF (standard battery)
NAUSILEV3-LI-PF (lithium battery)
