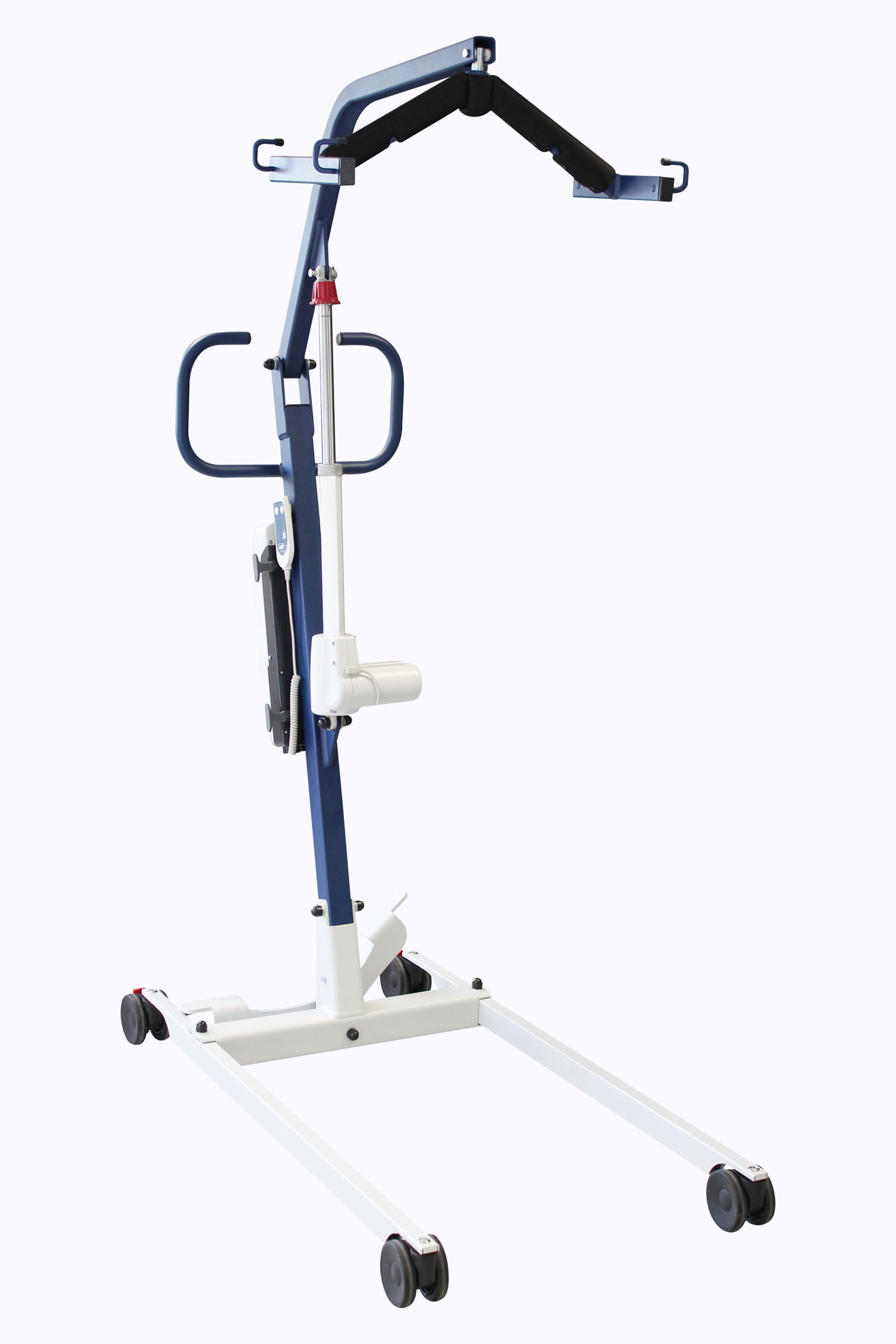

NAUSI-FLY mechanical or electrical opening legs
NAUSI-FLY mechanical or electrical opening legs
CE certified and manufactured in France, the NAUSI-FLY range has been conceived as an optimized mix between an economic budget and high-end specifications.
These mechanical and electrical opening legs versions allow enhanced maneuverability for daily transfers with their double ball bearing castors.
In addition to the 8 000 N actuator (180 kg weight capacity), the 4-points spreader bar is perfectly adapted to provide a maximum comfort and security to the patient.
As an option, it is available with a lithium battery which enhances the use of the device by increasing the time of use and reducing the charging time.
KEY FEATURES

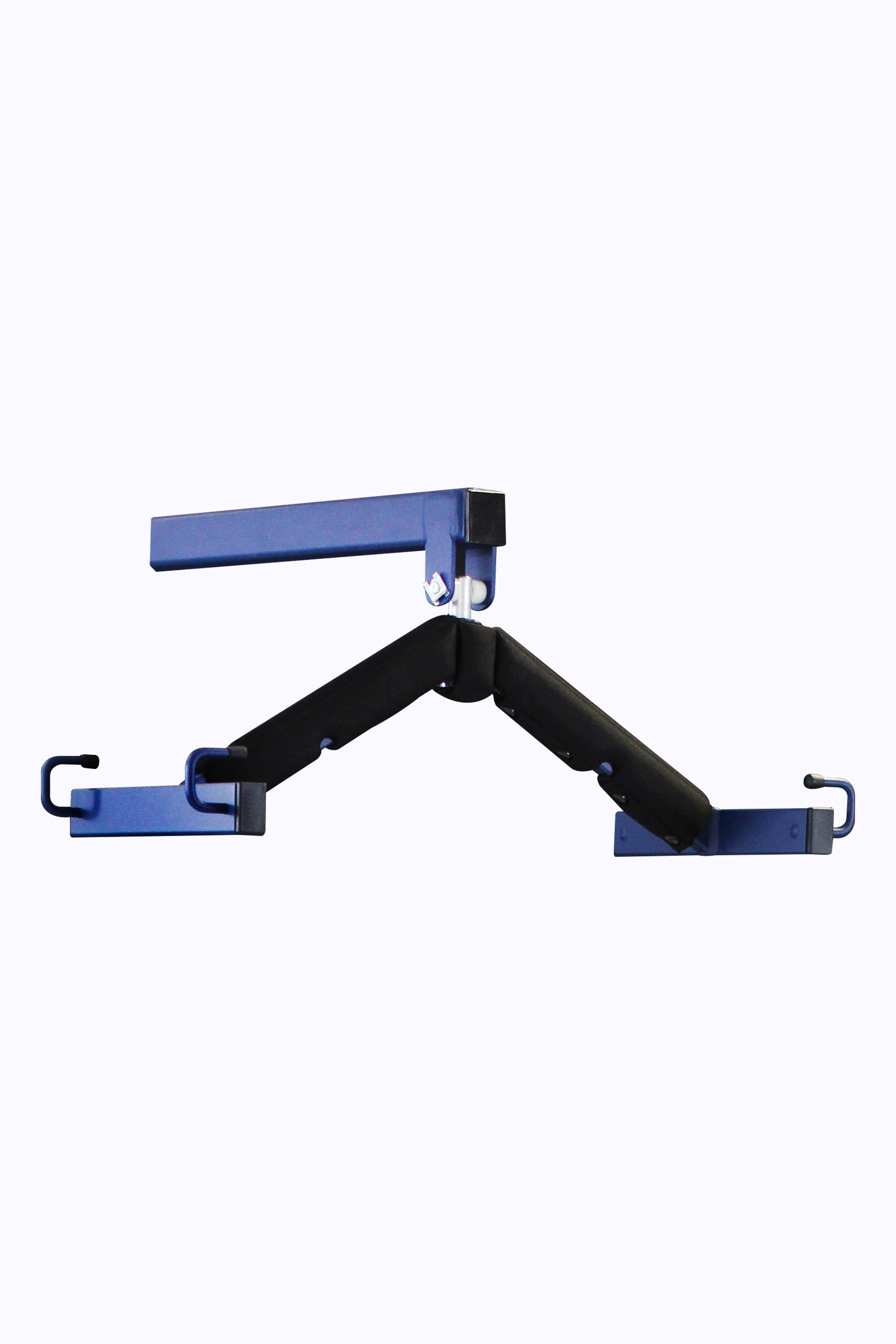

4-point spreader bar for an even weight distribution

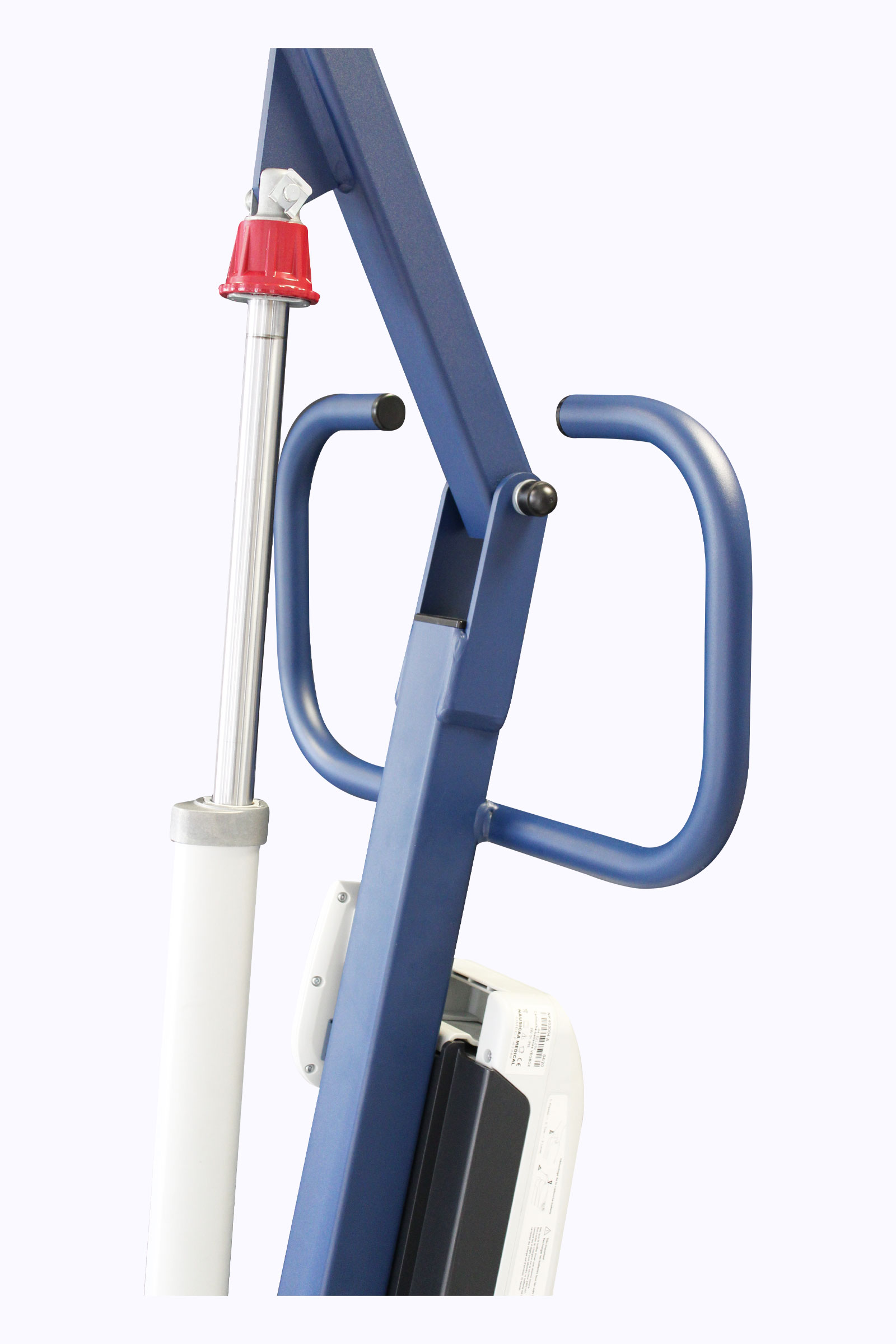

Large handlebar for ease of handling
8 000 N actuator offering an excellent compromise between maximum weight capacity and lifting speed

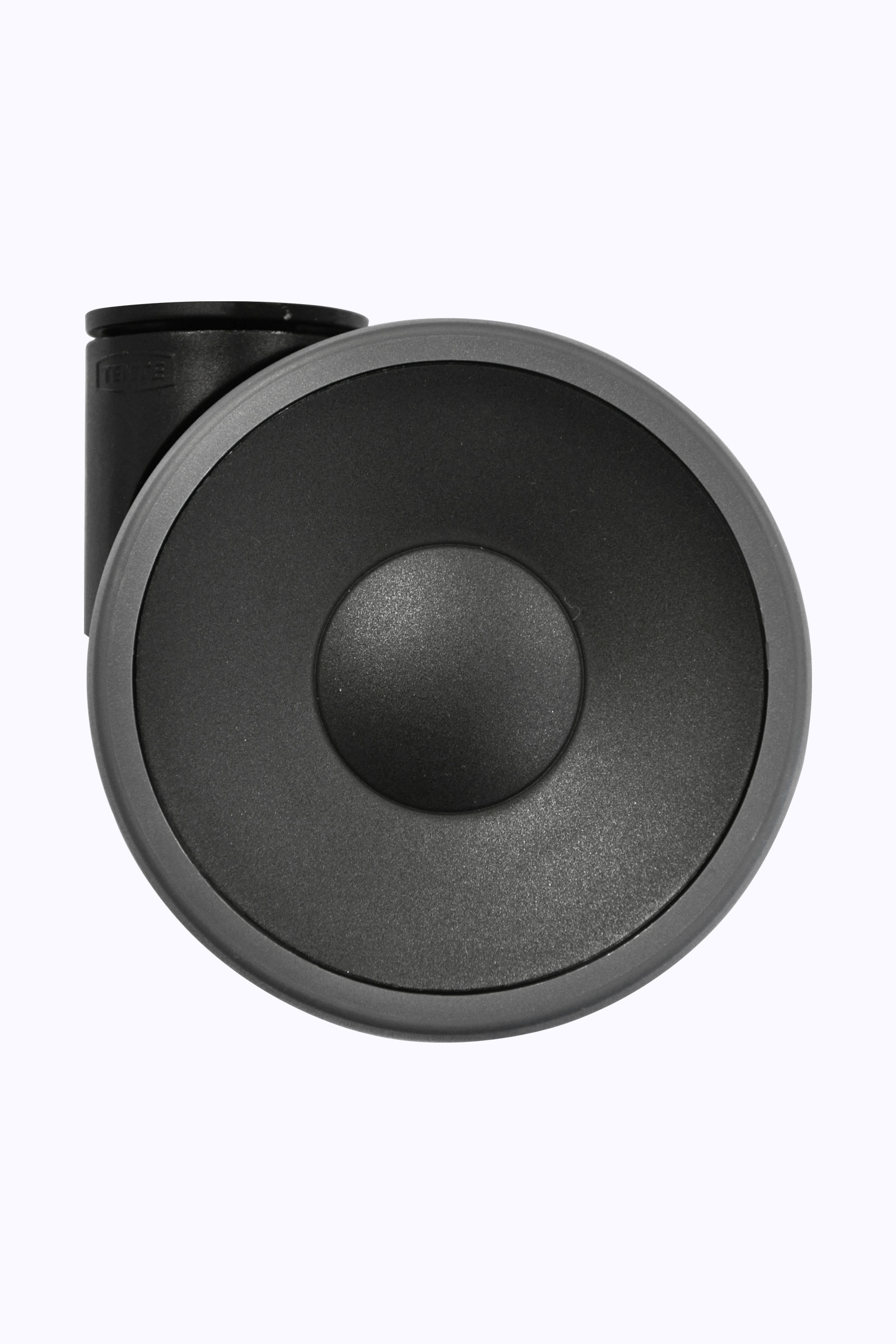

4 large double wheels (diameter 100 mm) with double ball bearing
Video
Specifications
Made in France
CE certified
Class 1 medical device
Weight capacity: 180 kg
Lifting actuator power: 8 000 N
Total weight with mechanical opening: 40 kg
Total weight with electrical opening: 42 kg
Steel manufacturing
Epoxy baked painting
Standard: NF EN ISO 10535:2007
Dimensions
Total length: 119 cm
Minimum lifting height: 60 cm
Maximum lifting height: 175 cm
Total height: 138 cm
Frame height: 11 cm
Minimum base width: 68 cm
Maximum base width with mechanical opening: 98 cm
Maximum base width with electrical opening: 108 cm
Turning diameter: 135 cm
References
Mechanical opening
With standard battery: NAFLY2-180-PF
With lithium battery: NAFLY2-180-LI-PF
Electrical opening
With standard battery: NAFLY+2-PF
With lithium battery: NAFLY+2-LI-PF
Spare parts
NAUSI-FLY with mechanical opening legs
1. Complete device
2. Battery pack
3. Actuator
4. Remote control
NAUSI-FLY with electrical opening legs
1. Complete device
2. Battery pack
3. Actuator
4. Actuator opening legs
5. Remote control
Documents
NAUSI-FLY with mechanical opening legs
1. Marketing Brochure
2. Product sheet
3. User manual
4. EU Declaration of conformity
5. Range Presentation
6. Nausifly Range Presentation
7. Patient Lifts Range Comparative
8. Technical Data
9. Lifting From Floor
NAUSI-FLY with electrical opening legs
1. Marketing Brochure
2. Product sheet
3. User Manual
4. EU Declaration of conformity
5. Range Presentation
6. Nausifly Range Presentation
7. Patient Lifts Range Comparative
8. Technical Data
9. Lifting From Floor
