NAUSI-FLY COMPACT
mechanical opening legs

NAUSI-FLY COMPACT
mechanical opening legs

It brings many benefits to the patient making it specially designed for home care use with its 160 kg weight capacity (6 000 N actuator), its compact base (mechanical opening legs up to 84 cm) and its reduced dimensions.

More ...



KEY FEATURES

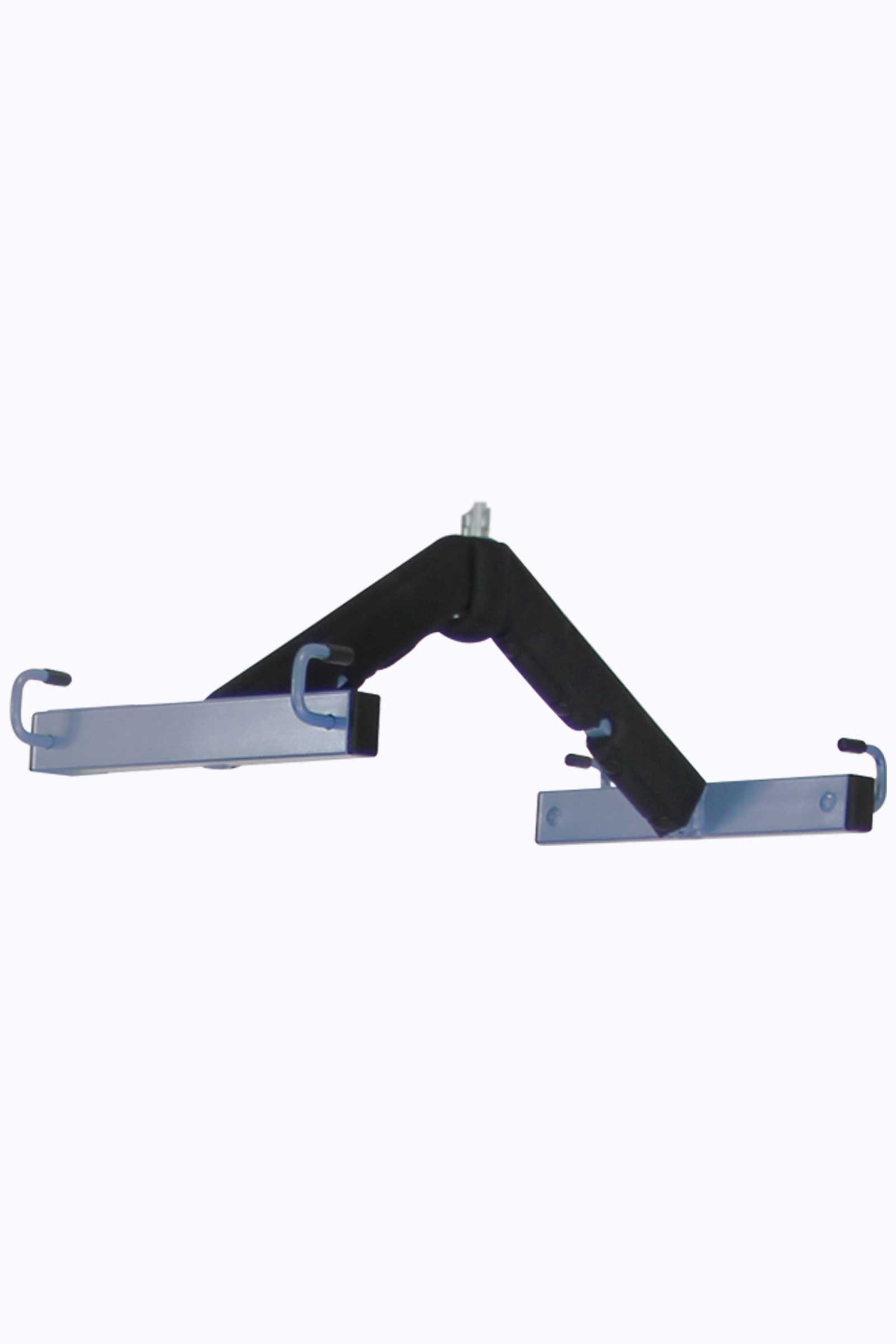

4-point spreader bar for an even weight distribution

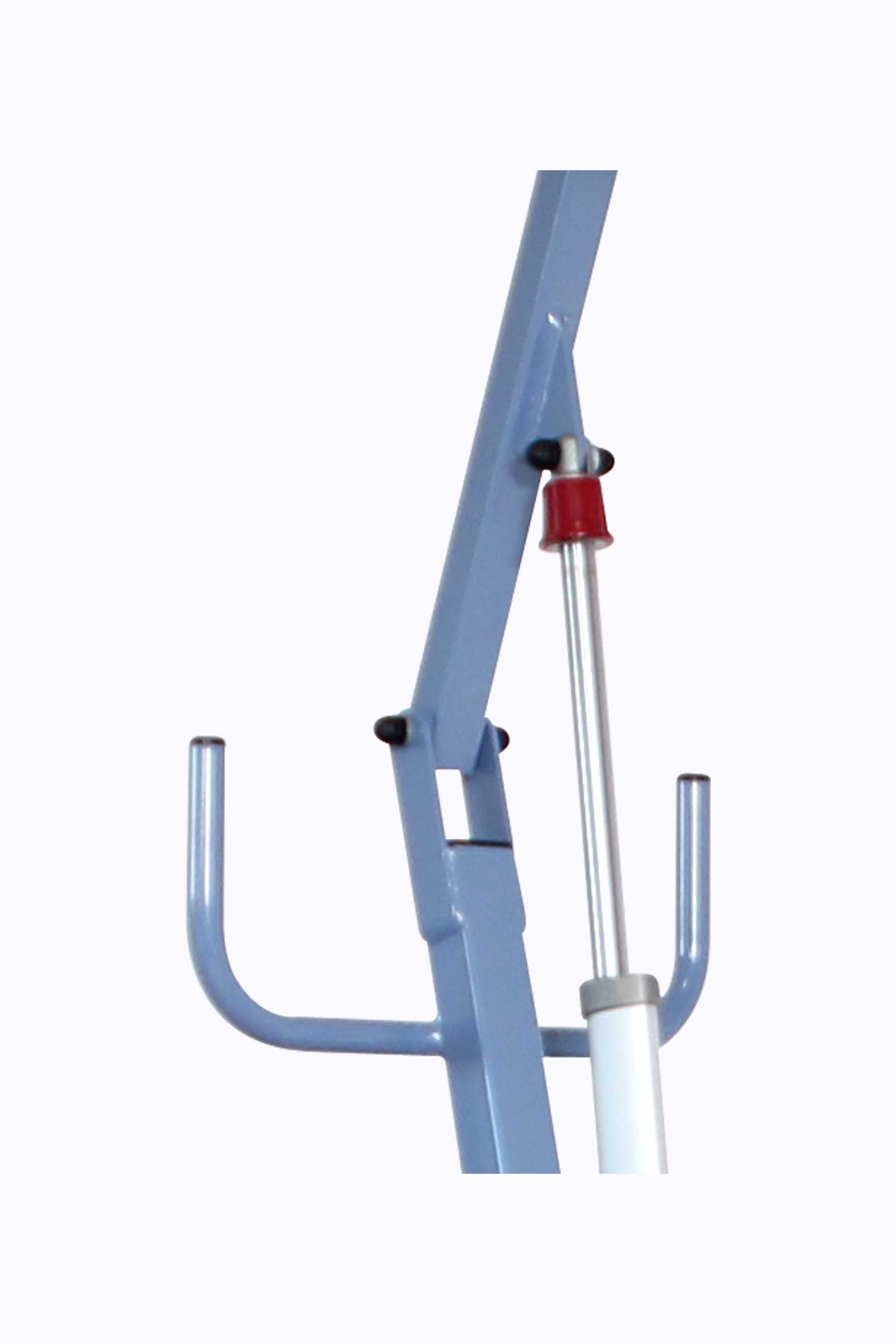

Large handlebar for ease of handling

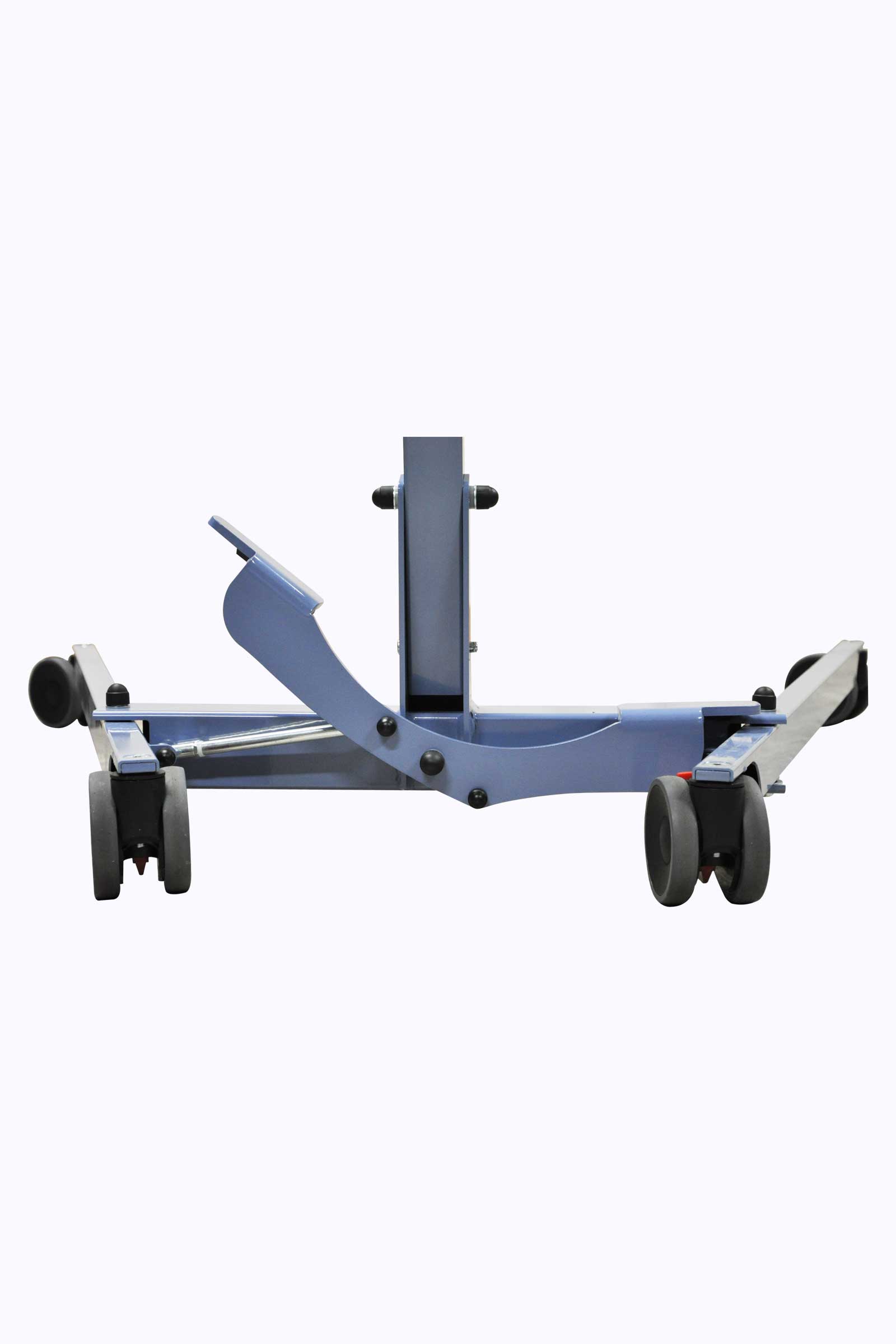

Mechanical opening legs

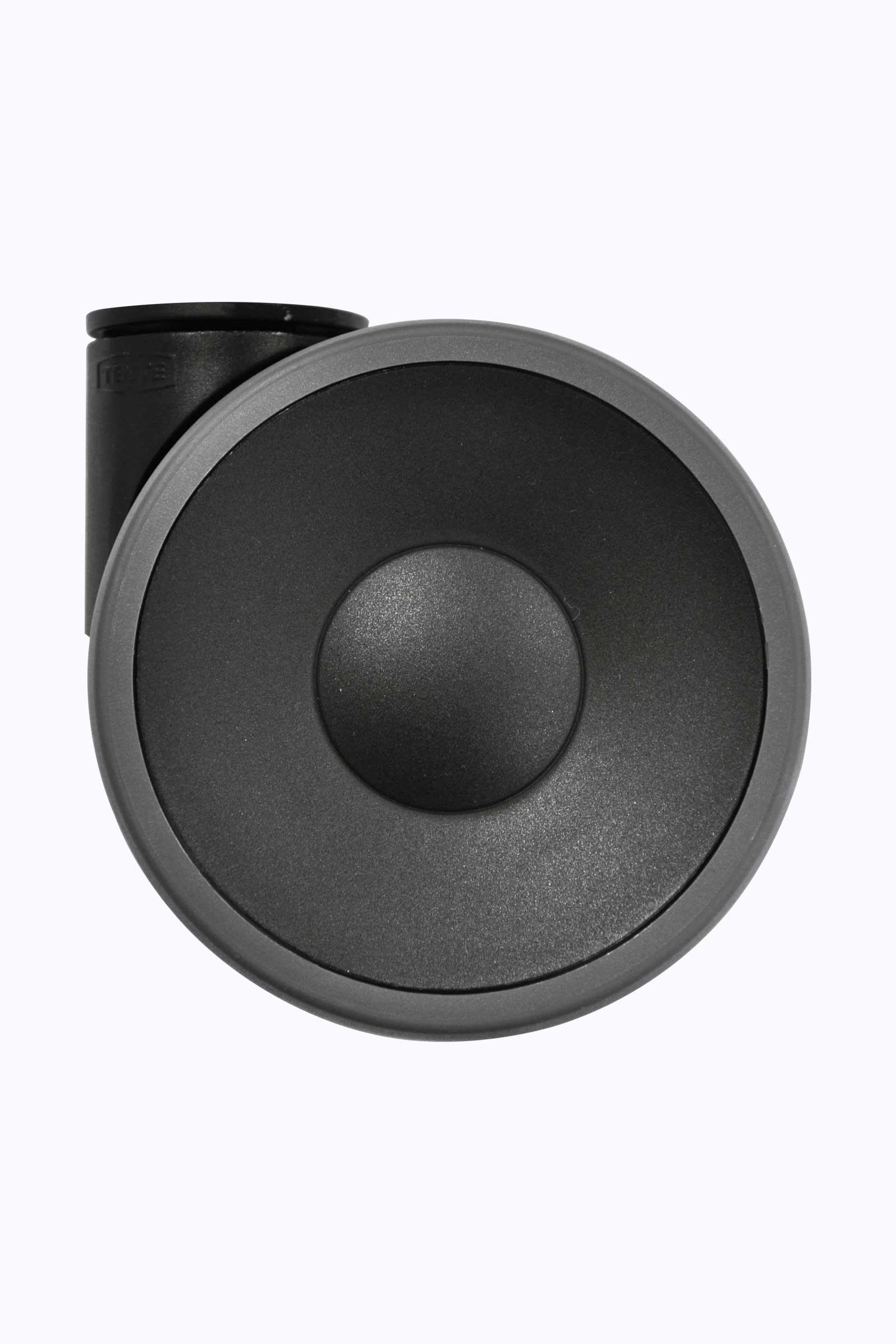

4 large double wheels (diameter 100 mm) with double ball bearing

SKU: NAFLY-160-CPT-PF NAFLY-160-CP-LI-PF Category:
Video
Specifications

Made in France

CE certified

Class 1 medical device

Weight capacity: 160 kg

Lifting actuator power: 6 000 N

Total weight with mechanical opening: 31 kg

Steel manufacturing

Epoxy baked painting

Standard: NF EN ISO 10535:2007

Dimensions

Total length: 100 cm
Minimum lifting height: 61 cm
Maximum lifting height: 160 cm
Total height: 126 cm
Frame height: 11,5 cm
Minimum base width: 57 cm
Maximum base width: 88 cm
Turning diameter: 113 cm

References

NAFLY-160-CPT-PF (with standard battery)
NAFLY-160-CP-LI-PF (with lithium battery)
