FLYER XL
electrical opening legs

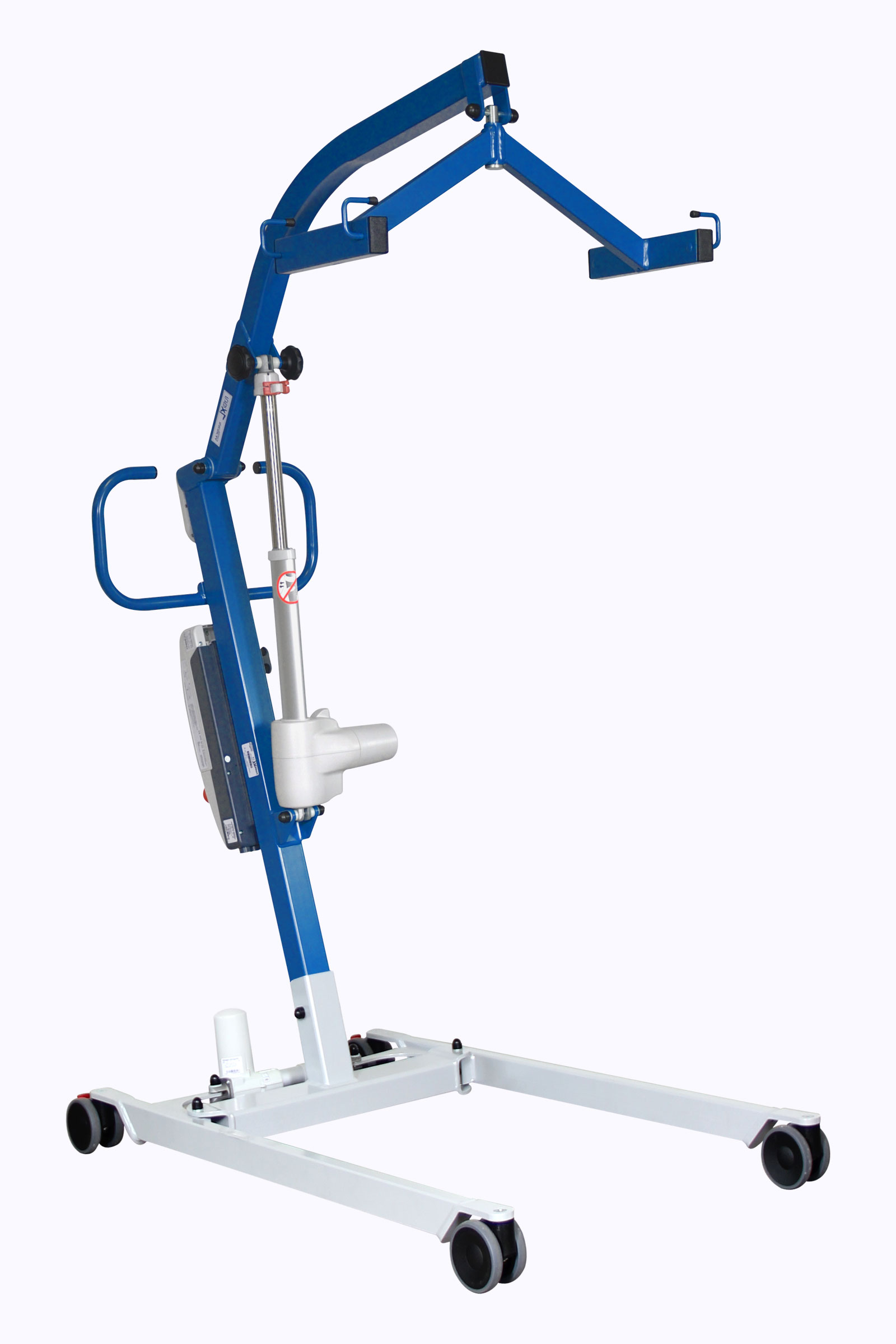

Powerful due to its lifting power and convenient with its electrical opening legs (up to 105 cm), it is a high-end device designed to answer the requirement that bariatric quality treatment must be carried out in specific devices.

CE certified and manufactured in France, the FLYER XL with electrical opening legs is a specialized model of patient for bariatric patients, made in steel and whose maximum lifting capacity is 300 kg.

Specially designed for community use, it is equipped with a lithium battery which enhances the use of the device by increasing the time of use and reducing the charging time.

More ...

USE
It answers the requirement that bariatric quality treatment must be carried out in suitable and specific devices, taking into account the difficulties related to the care of various morphologies.
Its electrical opening base legs, from 70 cm to 105 cm, allows large widths armchairs or wheelchairs and an ease of access.



SELECTION ADVICE
The FLYER XL with electrical opening legs is mostly recommended:
– for a bariatric patient who has no self-support
– for a bariatric patient who is totally dependent and bedridden



ADVANTAGES
– Equipped with an overpowering lifting actuator of 10 000 N for patients up to 300 kg
– Great lifting range limiting the risk of knee contact against the actuator and to perform a lifting from the floor
– Designed specifically for bariatric patients

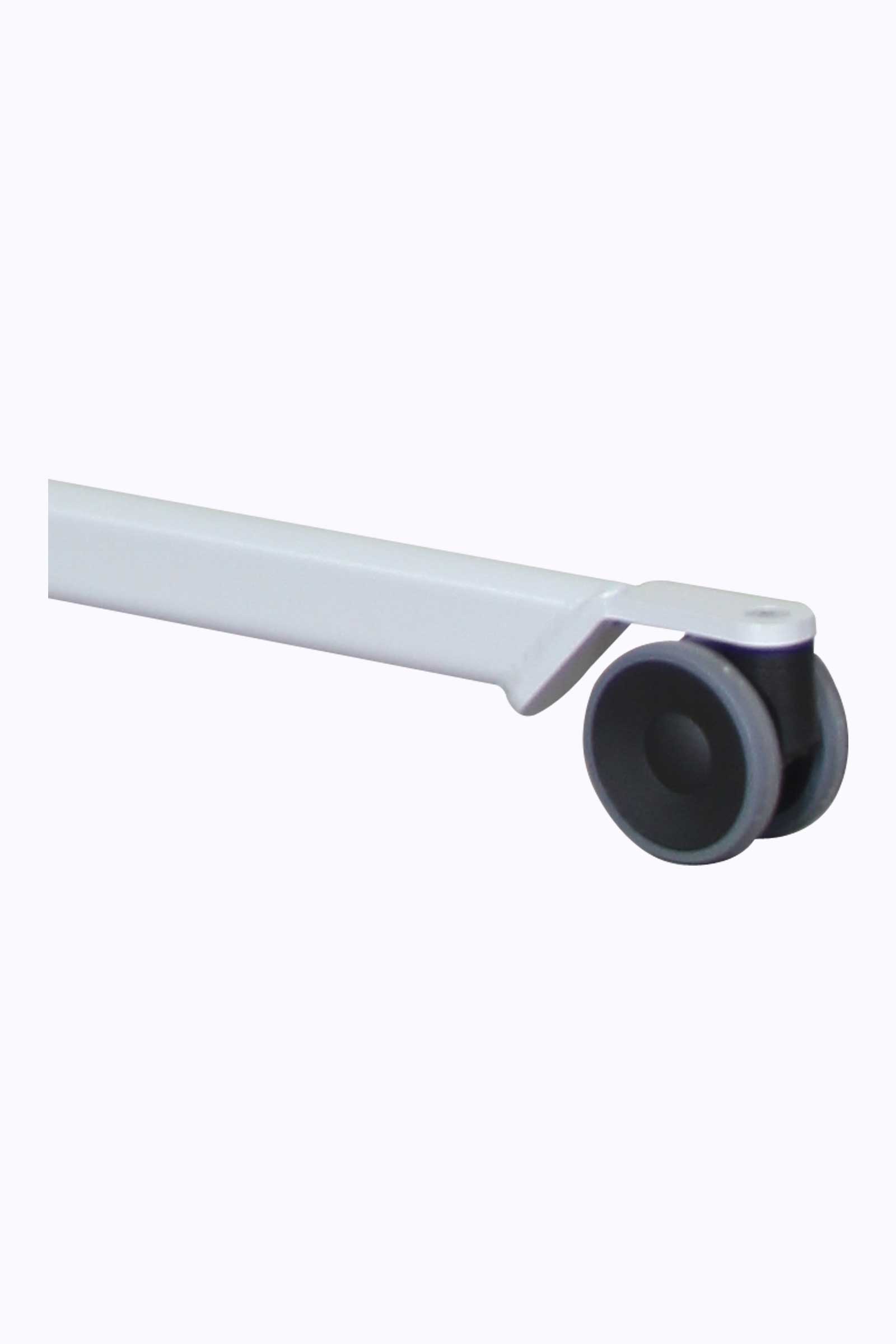

– Excellent qualities of manoeuvrability due to its wheels with double ball bearing castors



KEY FEATURES

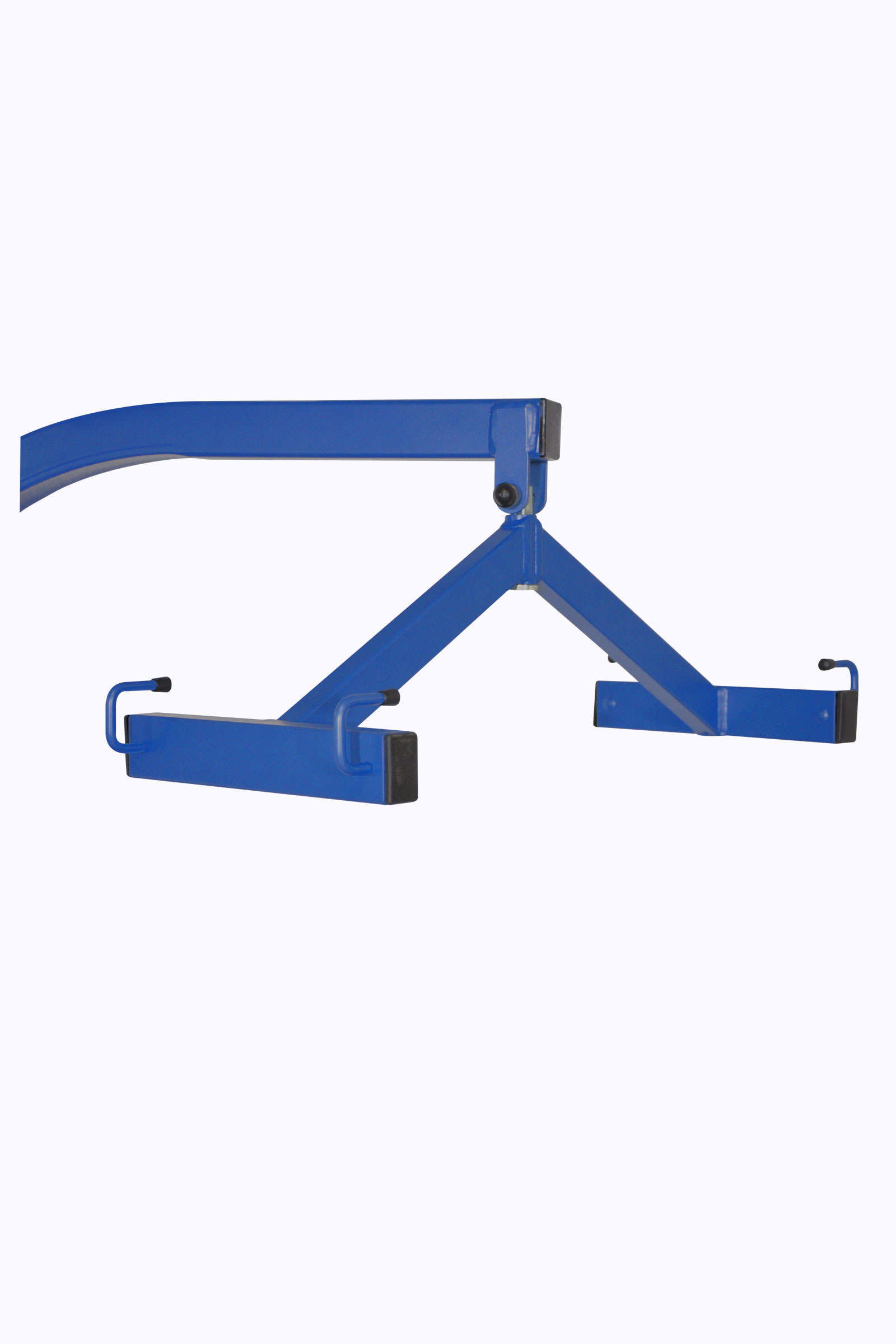

– 4-point spreader bar for an even weight distribution

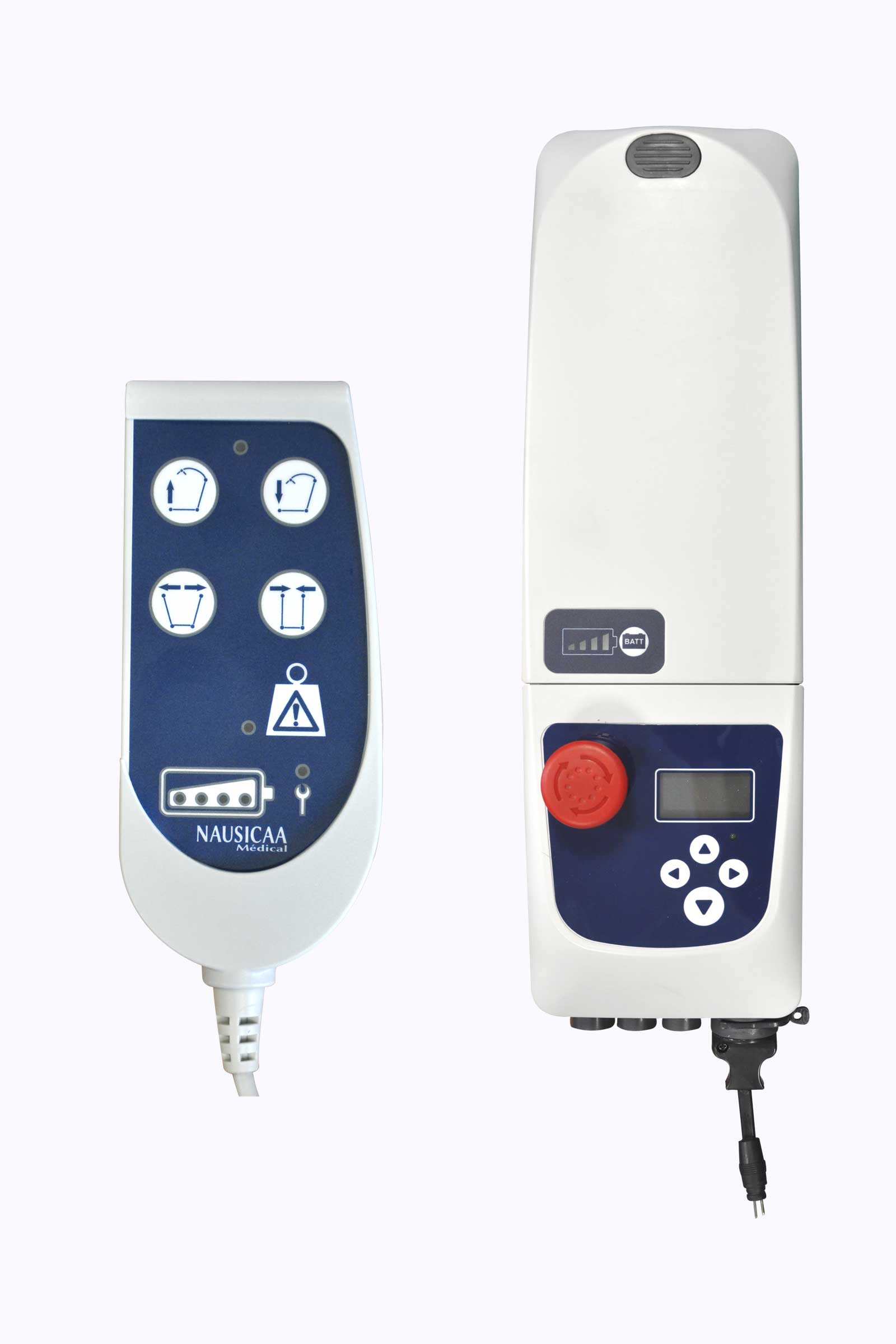

– New motorisation: updated software for an enhanced use

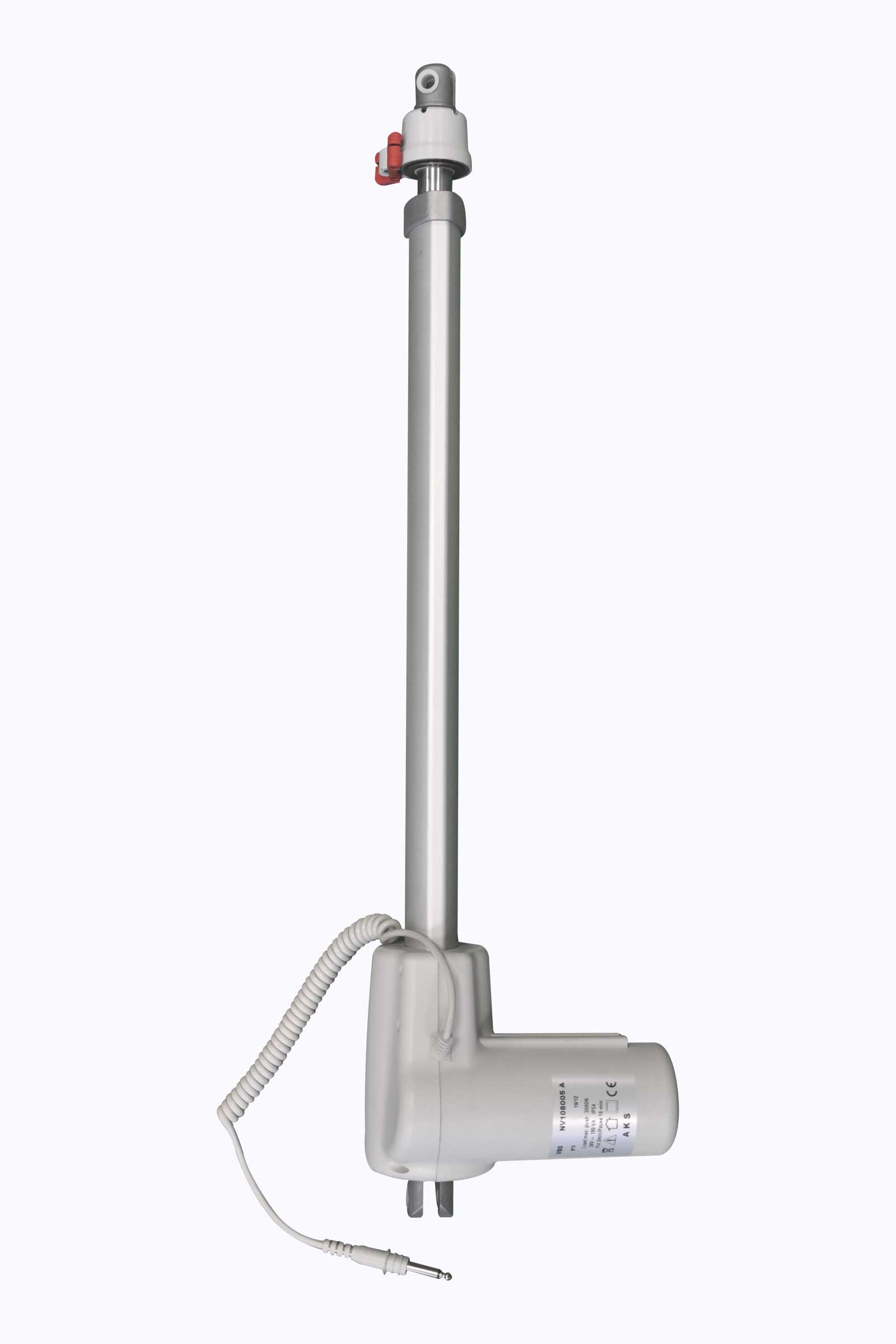

– Overpowering lifting actuator (10 000 N)
– Lithium battery for a longer time of use

Category:
VIDEO
Specifications

Made in France

CE certified

Class 1 medical device

Weight capacity: 300 kg

Lifting actuator power: 10 000 N

Electrical opening actuator power: 3 000 N

Total weight: 46 kg

Steel manufacturing

Epoxy baked painting

Double ball bearing castors

Standard: NF EN ISO 10535:2007

Warranty: 5 years (except battery and breakage)

Dimensions

Total length: 1250 mm
Minimum lifting height: 660 mm
Maximum lifting height: 1820 mm
Total height: 1250 mm
Height of chassis: 113 mm
Minimum base width: 700 mm
Maximum base width: 1050 mm
Turning diameter: 1430 mm

References

FLYER-XL-E-LI-PF (lithium battery)
FLYER-XL-E-PF (standard battery)
