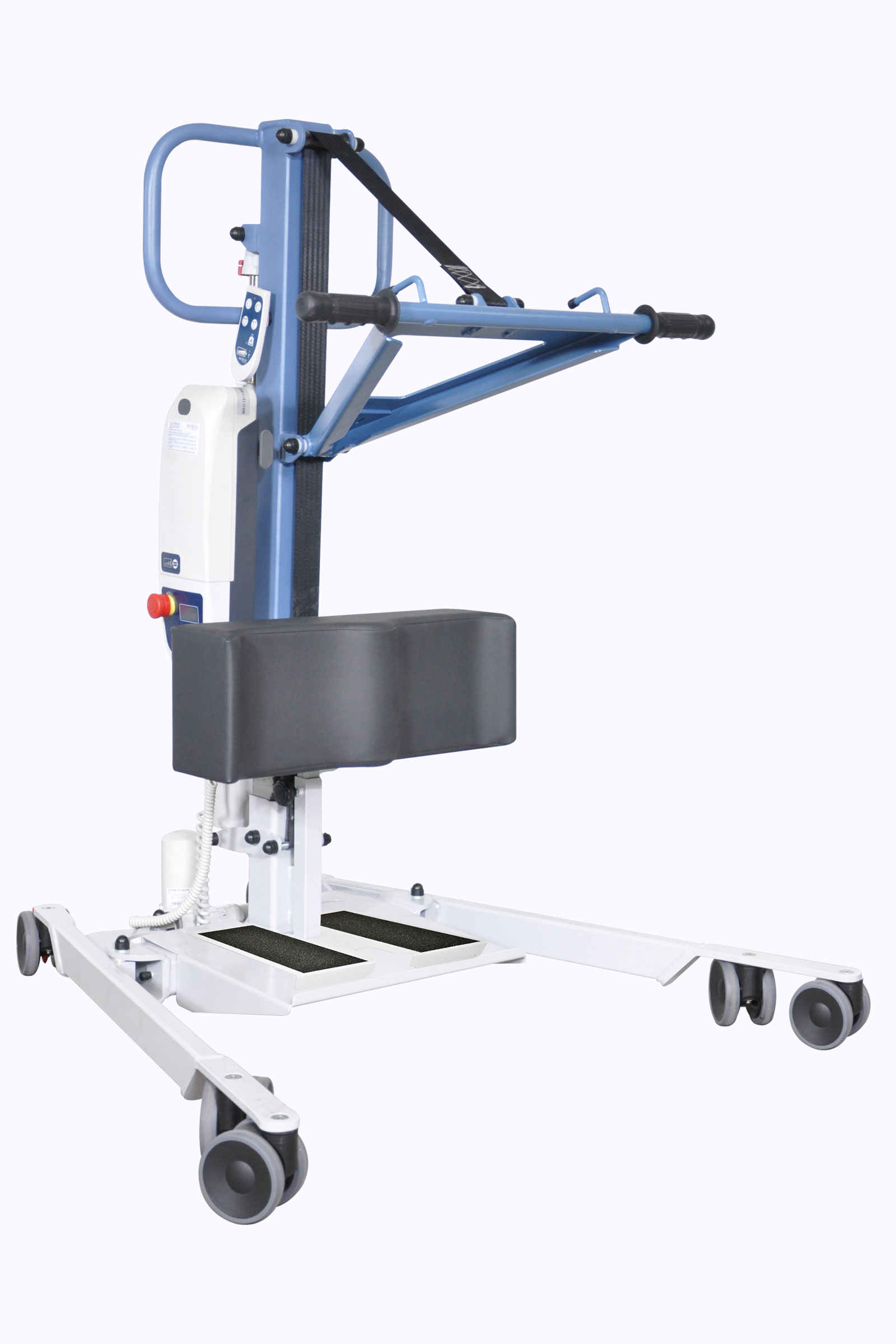

EASYLEV XL
electrical opening legs

The specificity of its doubled movement allows caregivers to provide high quality care during transfers as it supports a very low tonicity of the bariatric patient’s bust during the standing-up process.
As an option, it is available with a lithium battery which enhances the use of the device by increasing the time of use and reducing the charging time (warranted 2 years).

More ...

USE

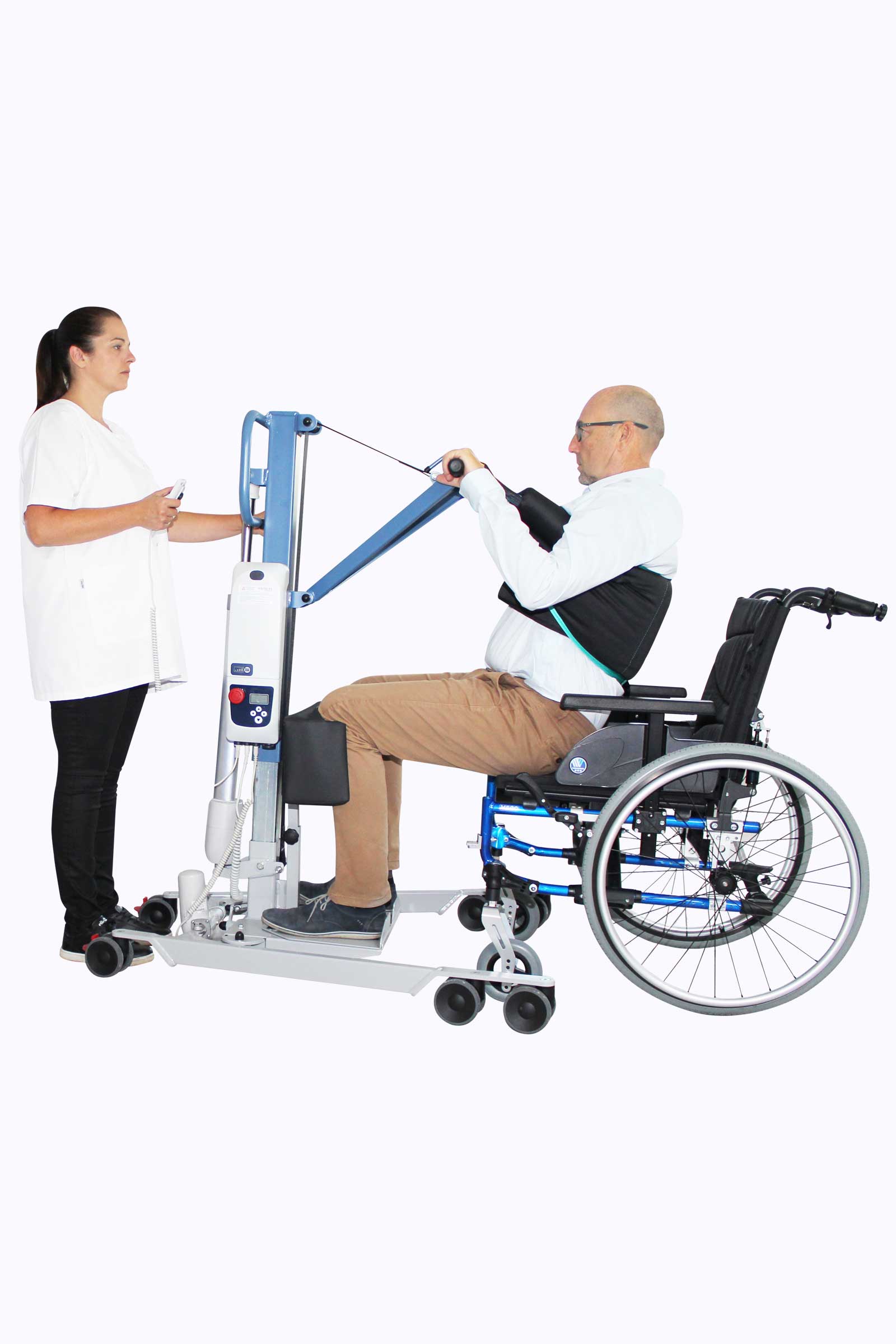

The device allows the patient to reach a standing position (total or partial) by activating her bust tonicity and supports the lack of tonicity while stimulating the natural raising scheme.

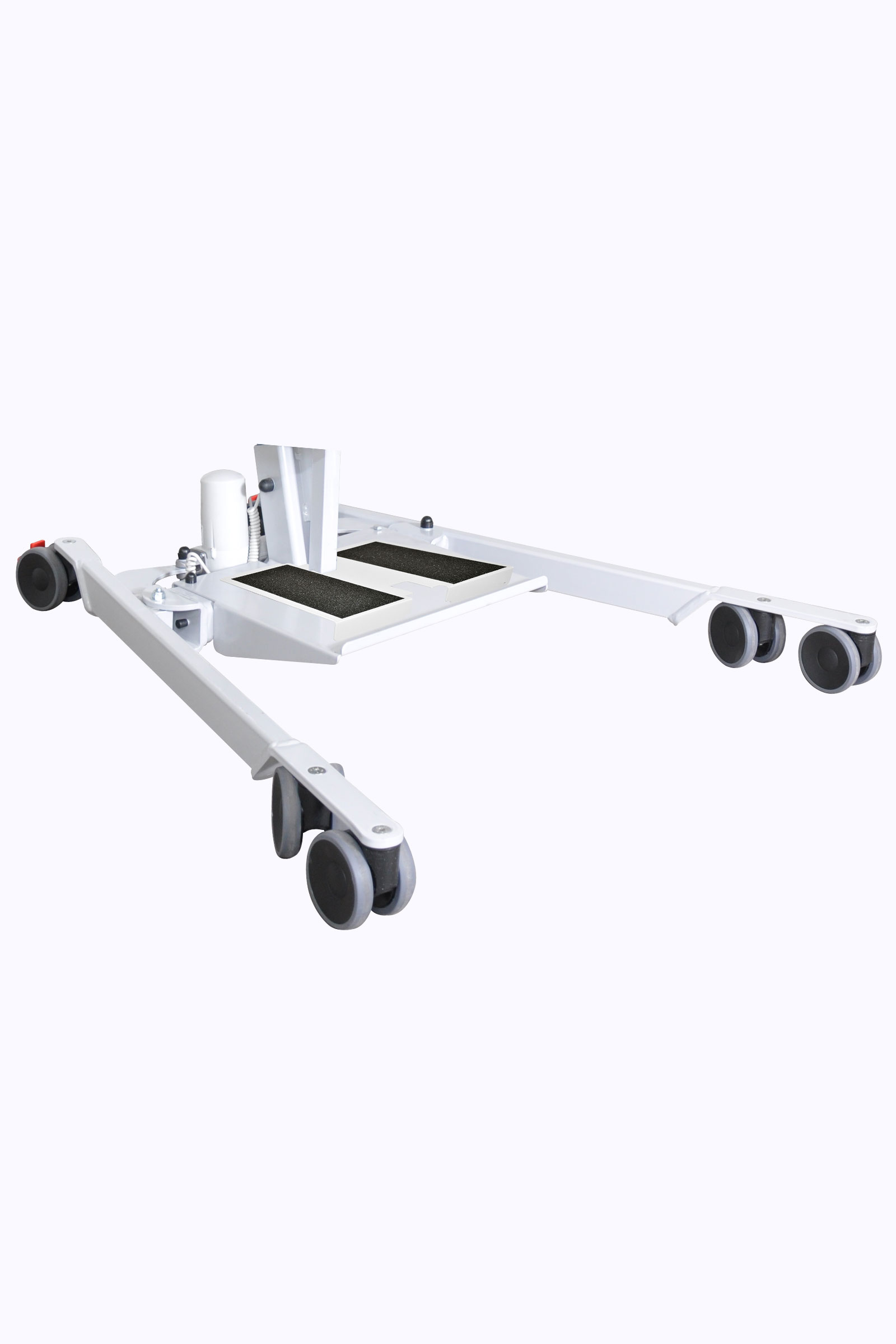

Its electrical opening base legs, from 69 cm to 104 cm, allows large widths armchairs or wheelchairs and an ease of access.



ADVANTAGES
– Equipped with an overpowering lifting actuator of 10 000 N for patients up to 300 kg
– Activation of mobility and transit during daily transfers
– Combined movement providing a high level of comfort
– Opening base legs for an ease of access to armchairs or wheelchairs
– Perfected for patients with very low tonicity
– Complete release of the patient’s lower body to effectively perform a change



KEY FEATURES
– Traction belt for a patented combined movement increasing patient comfort
– New motorisation: updated software for an enhanced use
– Optimized foam shin block
– Electrical opening legs

Category:
Video
Specifications

Made in France

CE certified

Class 1 medical device

Weight capacity: 300 kg

Lifting actuator power: 5 000 N

Electrical opening actuator power: 3 000 N

Total weight: 45 kg

Steel manufacturing

Epoxy baked painting

Double ball bearing castors

Standard: NF EN ISO 10535:2007

Warranty: 5 years (except battery and breakage)

Dimensions

Total length: 1 065 mm
Minimum lifting height: 730 mm
Maximum lifting height: 1 650 mm
Total height: 1 180 mm
Height of chassis: 113 mm
External width legs closed: 690 mm
Internal width legs open: 1 040 mm
Turning diameter: 1 250 mm

References

EASYLEVXL-E-PF (standard battery)
EASYLEVXL-E-LI-PF (lithium battery)
