EASYLEV 5
fixed base

EASYLEV 5
fixed base

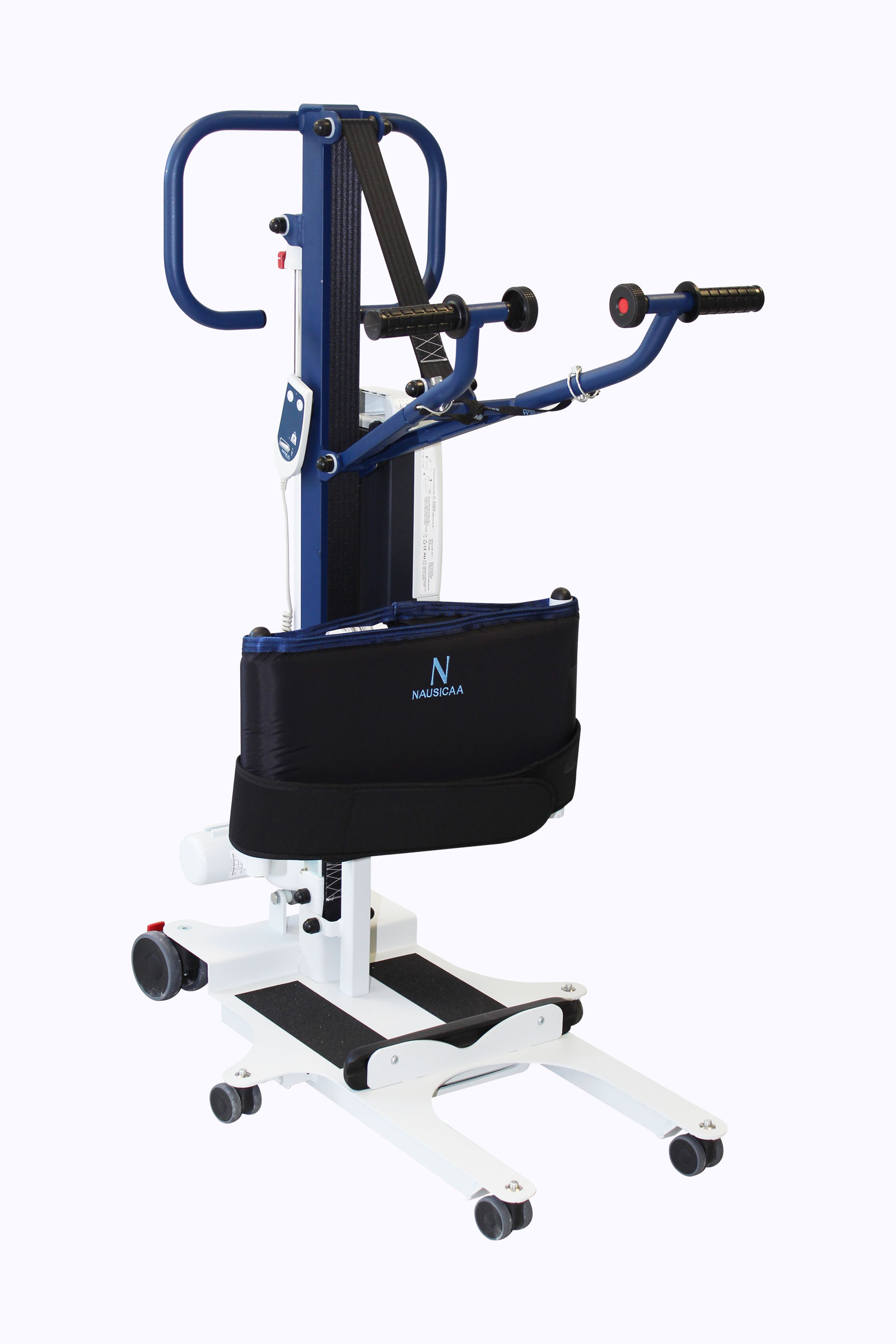

Characterized by its ingenious patented double movement, the new EASYLEV 5 with fixed base is a high-end stand-up lift as it allows caregivers provide high quality care with the best comfort in all environments.



NEW KEY FEATURES

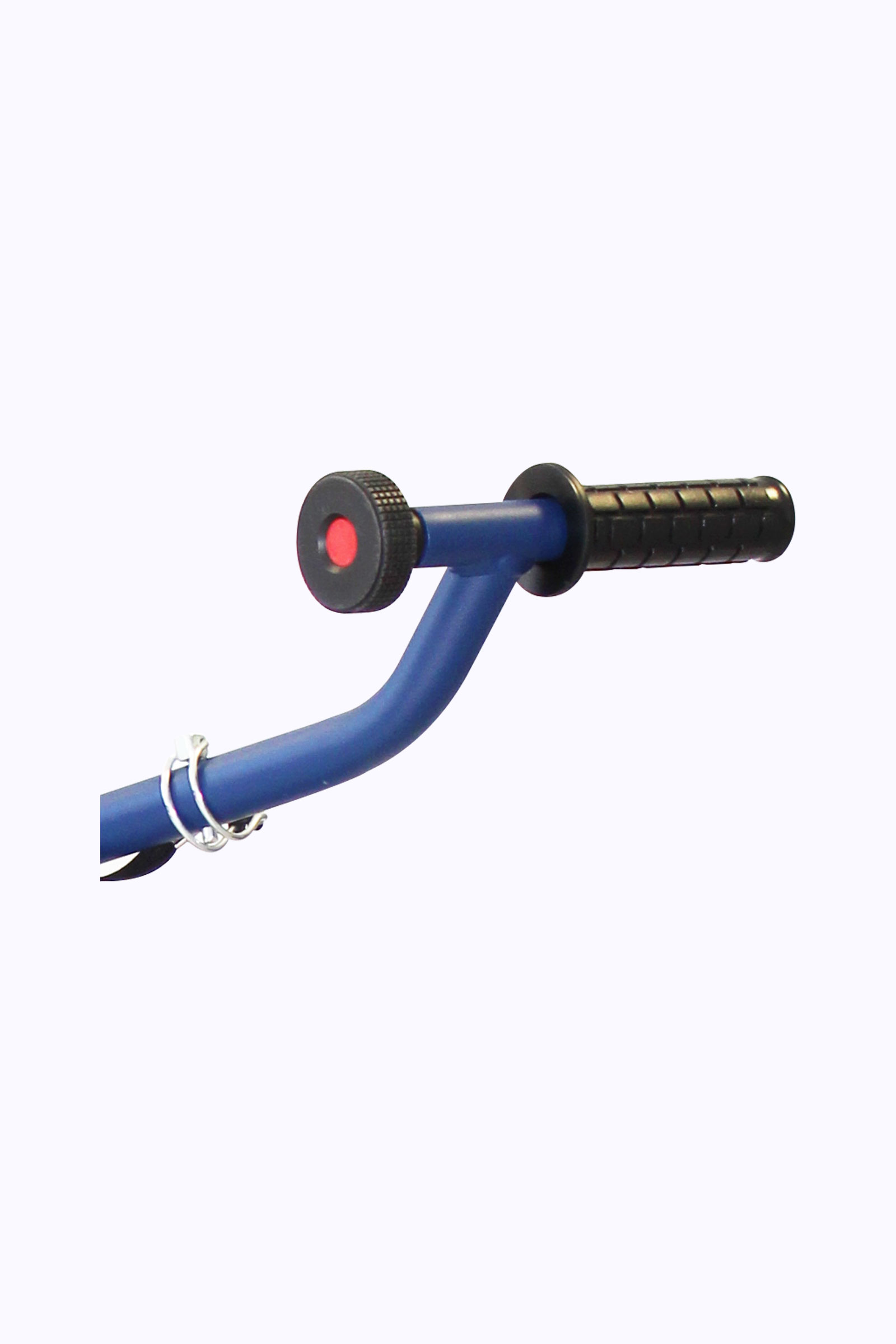

An innovative expandable lifting arm in 2 parts which can be adjusted to 3 different lengths positions to adapt to each patient’s morphology for the best possible care.
In addition, the lifting arm is also reversable to allow 2 different heights configurations to optimize the sling position:
– on the lumbar region to operate a semiactive transfer
– under the armpits to operate a semipassive transfer

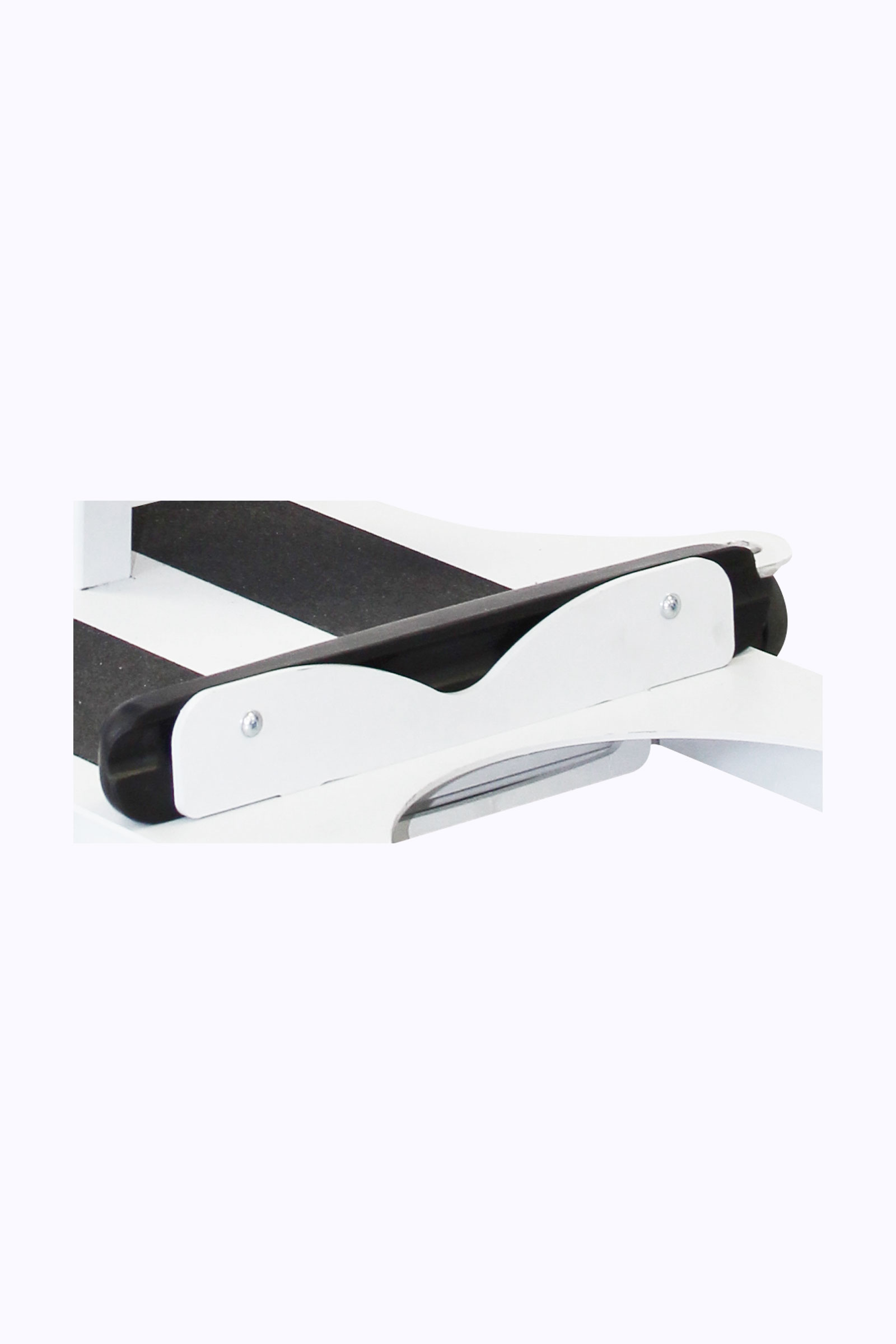

A made in our textile workshop ergonomic knee block manufactured with fabric and foam to protect vulnerable knees.
Equipped with a calf-strap as standard to secure the legs.
A comfortable lined with foam removable heel pad to easily position the patient feet before a transfer.
Lowered castors to achieve a 6,5 cm height to gain access to electrical wheelchairs with very low bases.

More ...

Designed with a toilet shape, it is specially optimized for confined spaces.

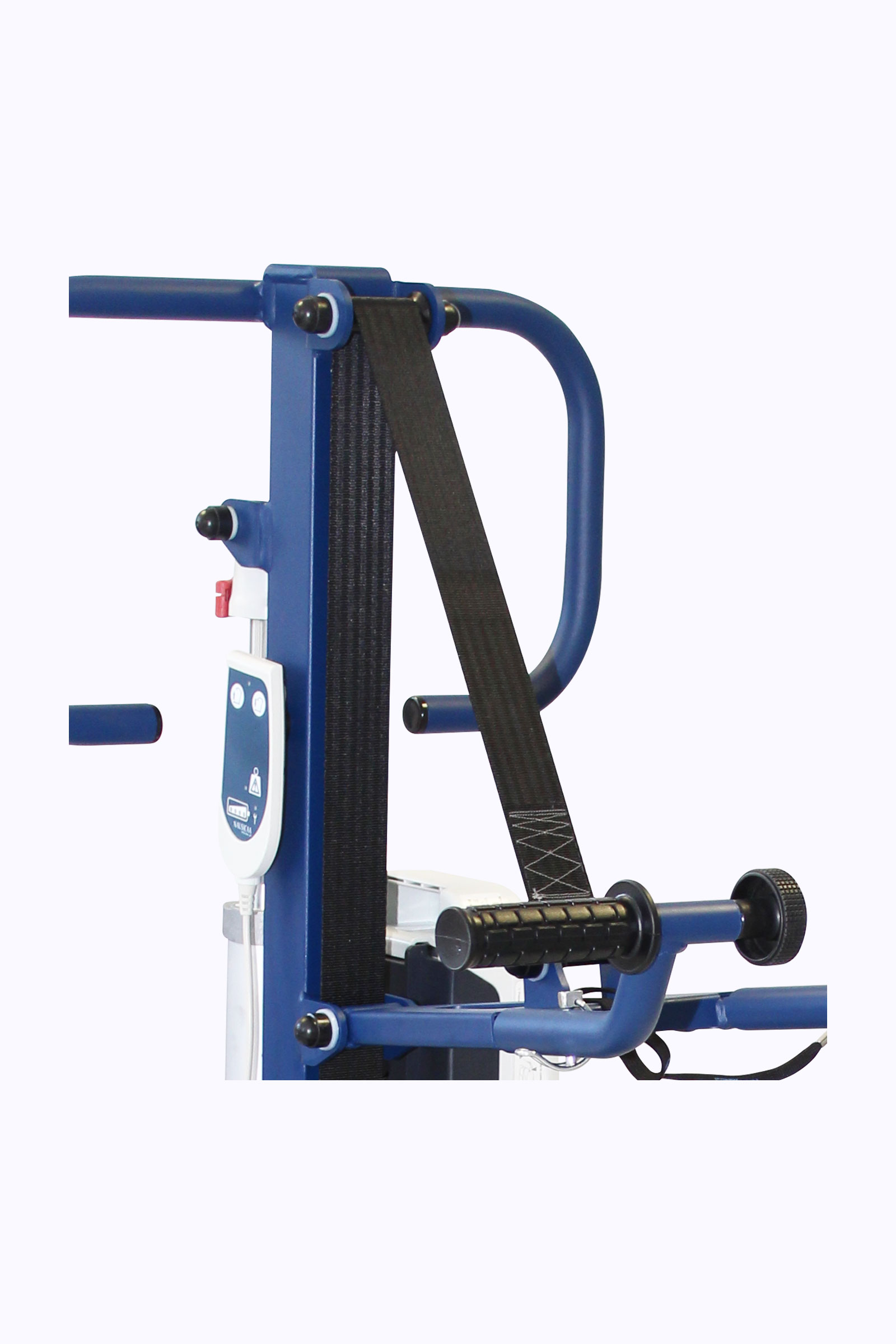

Very compact (56,5 cm base width), the new EASYLEV 5 specific combined motion of the telescopic mast and of the traction sling allows the patient to reach a standing position with a faster and smoother movement while supporting a very low tonicity of the patient’s chest area.

Stronger than the previous version, the maximum weight capacity has been increased to 180 kg.

As options, a lithium battery is available to enhance the use of the device and a calf strap to provide a better feeling of safety (warranted 2 years).



USE

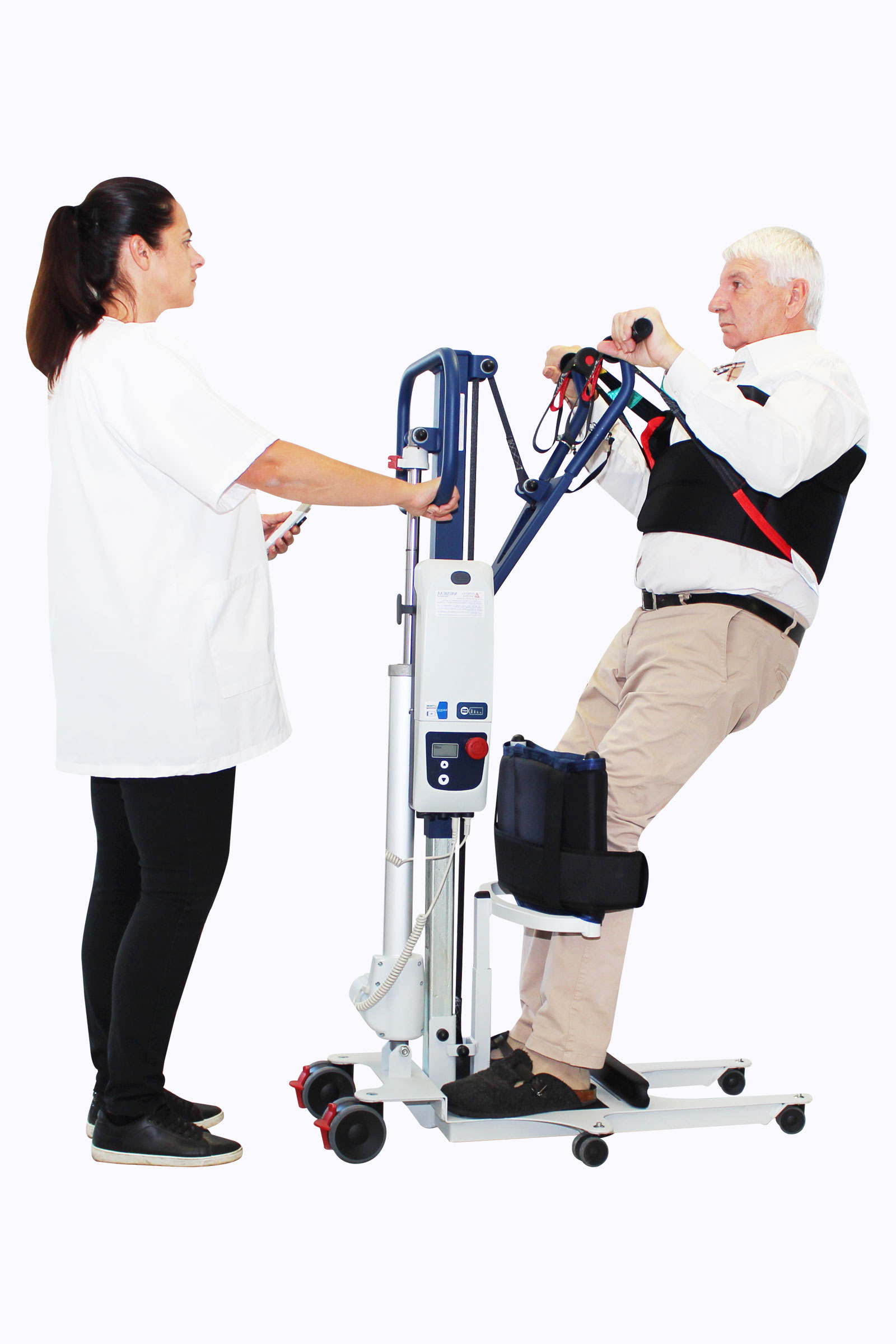

The device supports a very low tonicity of the patient’s bust and activates it while respecting the natural raising scheme.
The combined motion of the telescopic mast and of the traction sling provides a high level of comfort and flexibility to the patient during the standing up process.



ADVANTAGES
Activation of mobility and transit during daily transfers
Combined movement providing a high level of comfort
Perfected for patients with very low tonicity
Complete release of the patient’s lower body to effectively perform a change
Very convenient device suitable for confined spaces

SKU: EASYLEV5-PF EASYLEV5-LI-PF Category:
Specifications

Made in France

CE certified

Class 1 medical device

Weight capacity: 180 kg

Lifting actuator power: 3 000 N

Total weight: 38 kg

Steel manufacturing

Double ball bearing castors

Standard: NF EN ISO 10535:2007

Warranty: 5 years (except battery and breakage)

Dimensions

Total length: 84 cm
Minimum lifting height: 78 cm
Maximum lifting height: 155 cm
Total height: 121 cm
Frame height: 6,5 cm
Minimum base width: 24 cm
Maximum base width: 56,5 cm
Turning diameter: 90 cm

References

EASYLEV-5-PF (standard battery)
EASYLEV-5-LI-PF (lithium battery)
