BLUE WAYUPmechanical or electrical opening legs
BLUE WAYUPmechanical or electrical opening legs

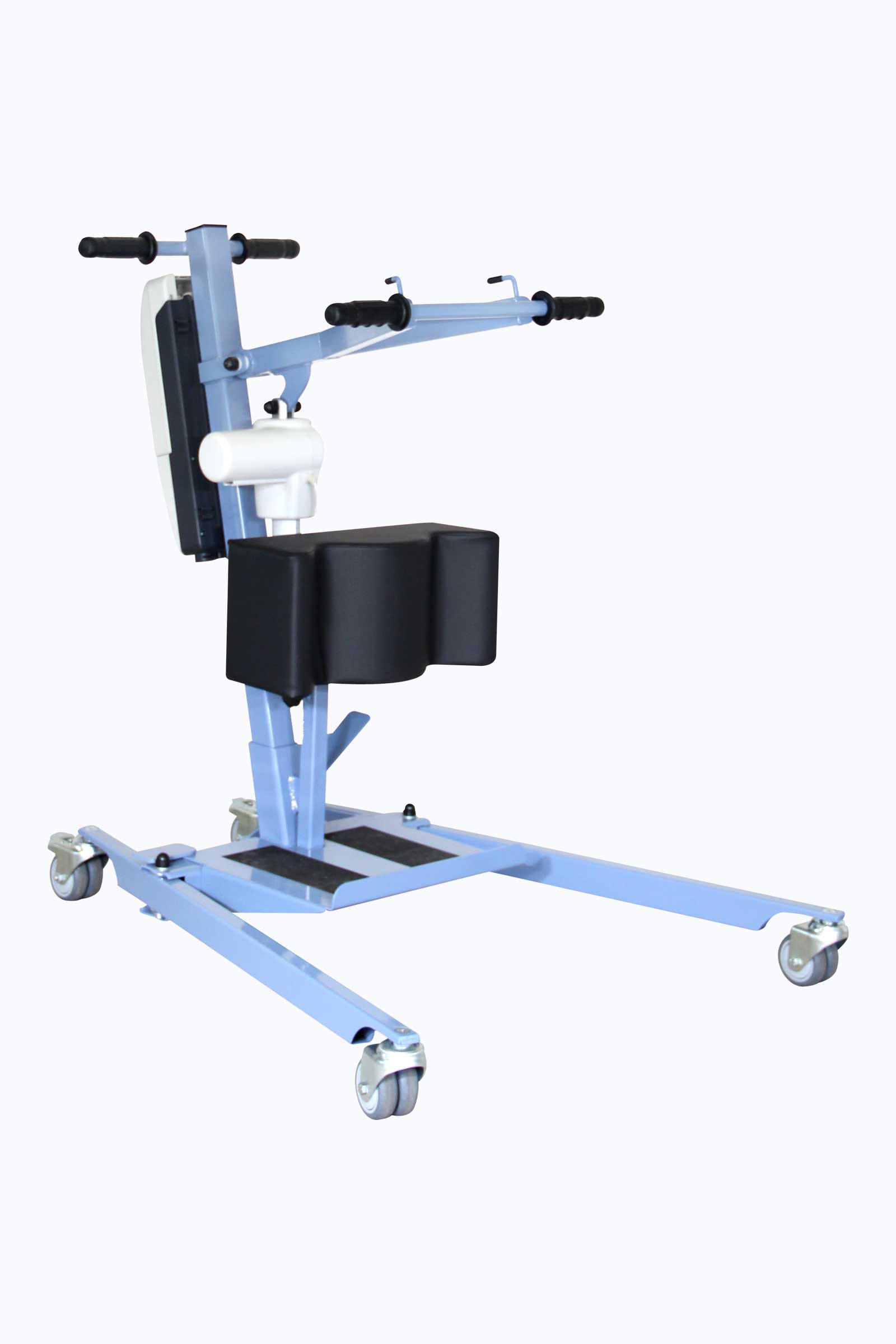

CE certified and manufactured in France, the BLUE WAYUP with mechanical or electrical opening legs is an entry-level stand-up lift, made in steel and whose maximum lifting capacity is 150 kg.
It is specially designed to provide an optimal ease of access to armchairs or wheelchairs.
They are perfectly adapted to efficiently perform a change of the patient’s lower body and be easily transformed into a walking aid by removing the foot platform.
2 opening base legs versions:
• Mechanical opening legs
• Electrical opening legs
As options, a lithium battery is available to enhance the use of the device and a calf strap to provide a better feeling of safety (warranted 2 years).
USE

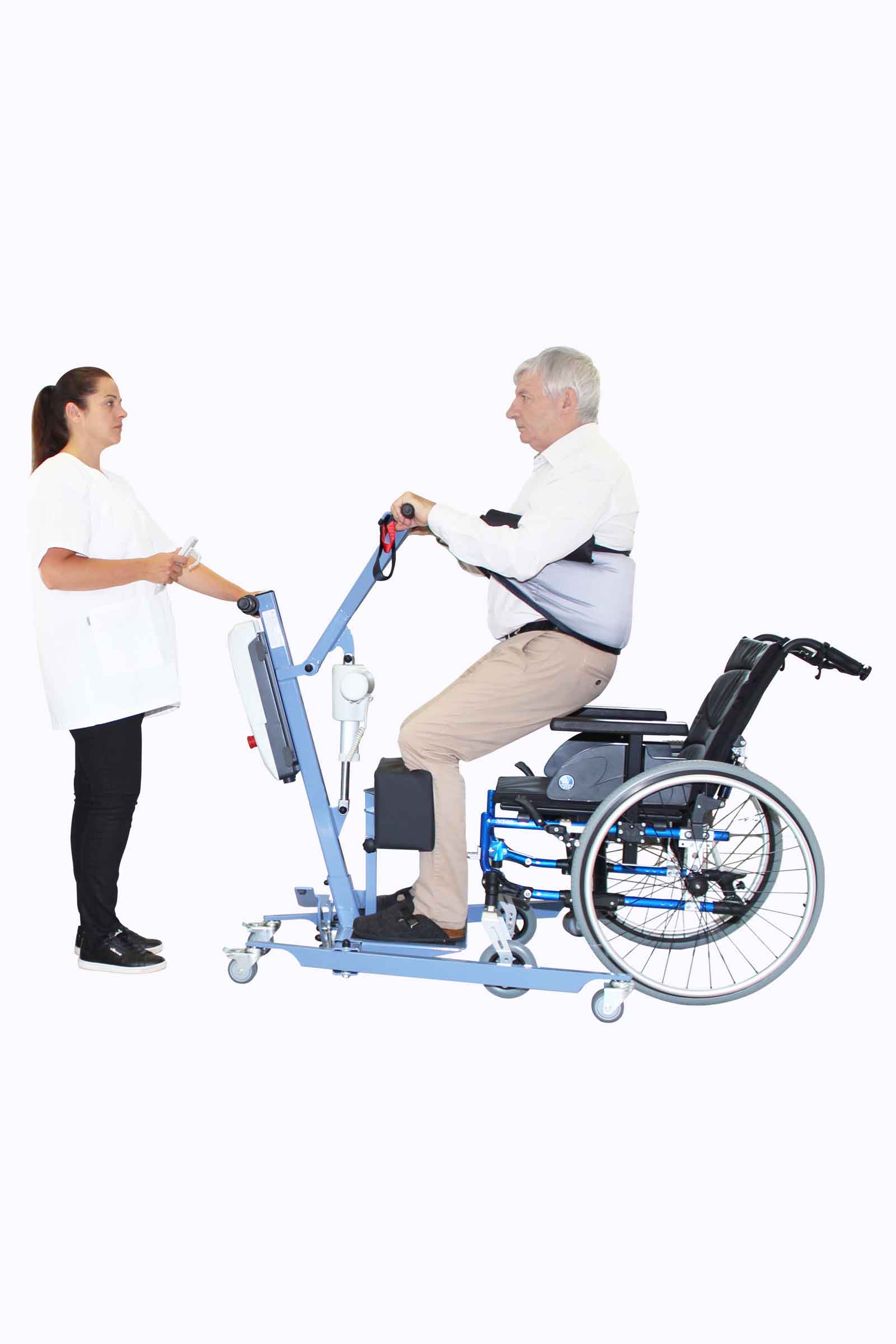

The device allows the patient to reach a standing position (total or partial) by activating her bust tonicity and can be transformed into a walking aid for the patient due to its removable platform.
Its mechanical opening base legs, from 56 cm to 92 cm, allows large widths armchairs or wheelchairs and an ease of access.
ADVANTAGES
– Activation of mobility and transit during daily transfers
– Adapted design for the user’s comfort
– Opening base legs for an ease of access to armchairs or wheelchairs
– Releases the patient’s lower body to easily make a change
KEY FEATURES

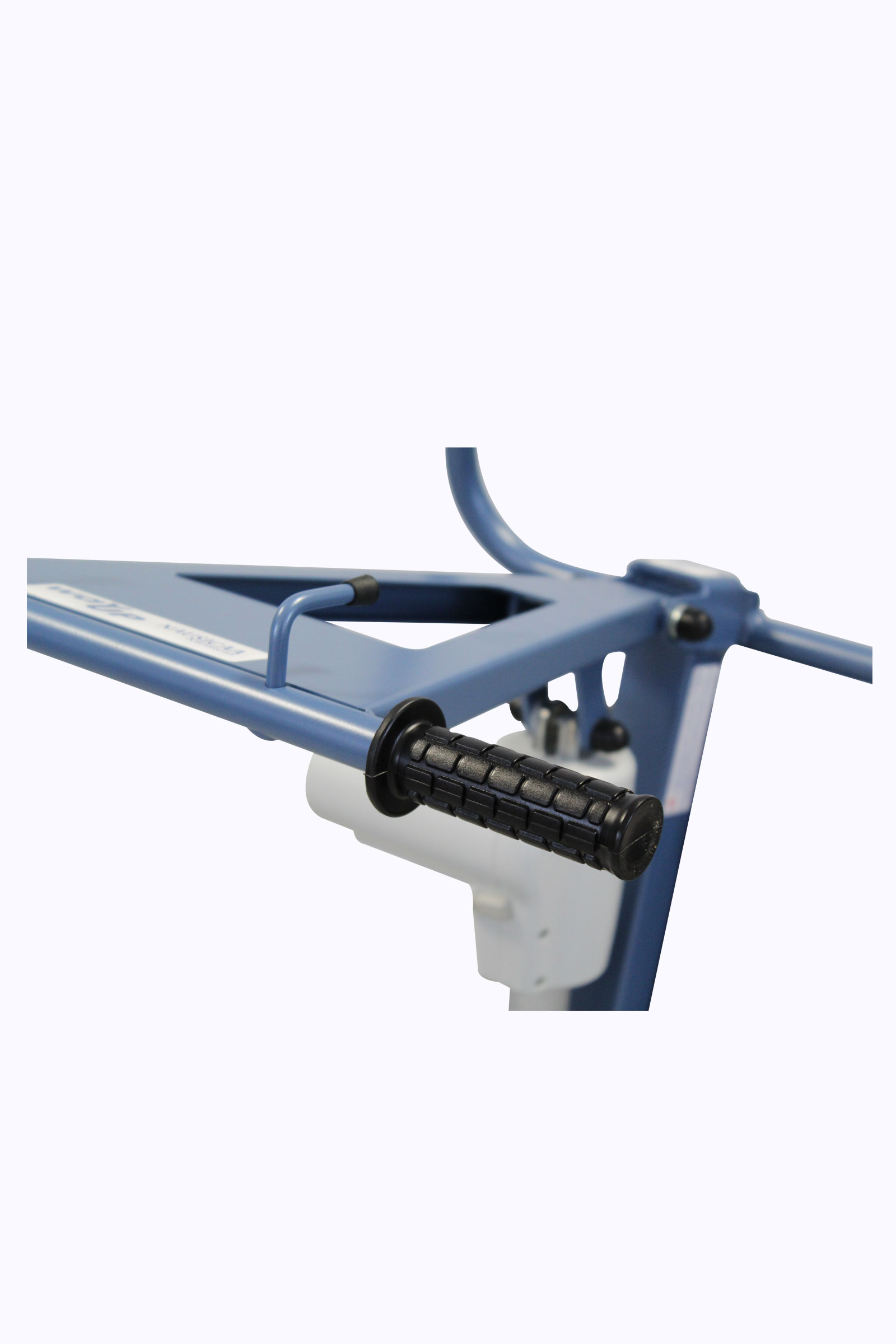

– Revolving handles to follow the wrist movement

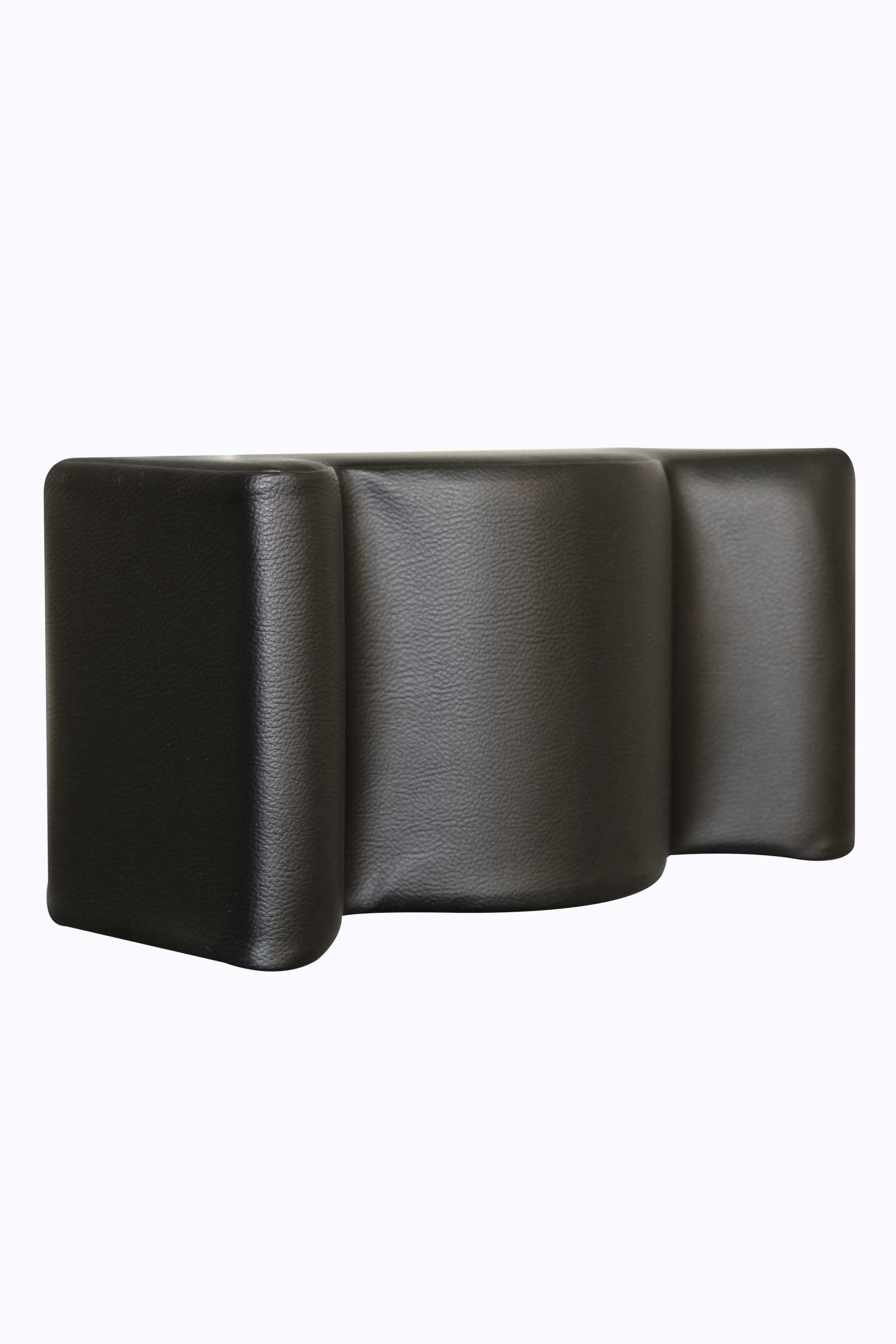

– Comfortable foam shin block

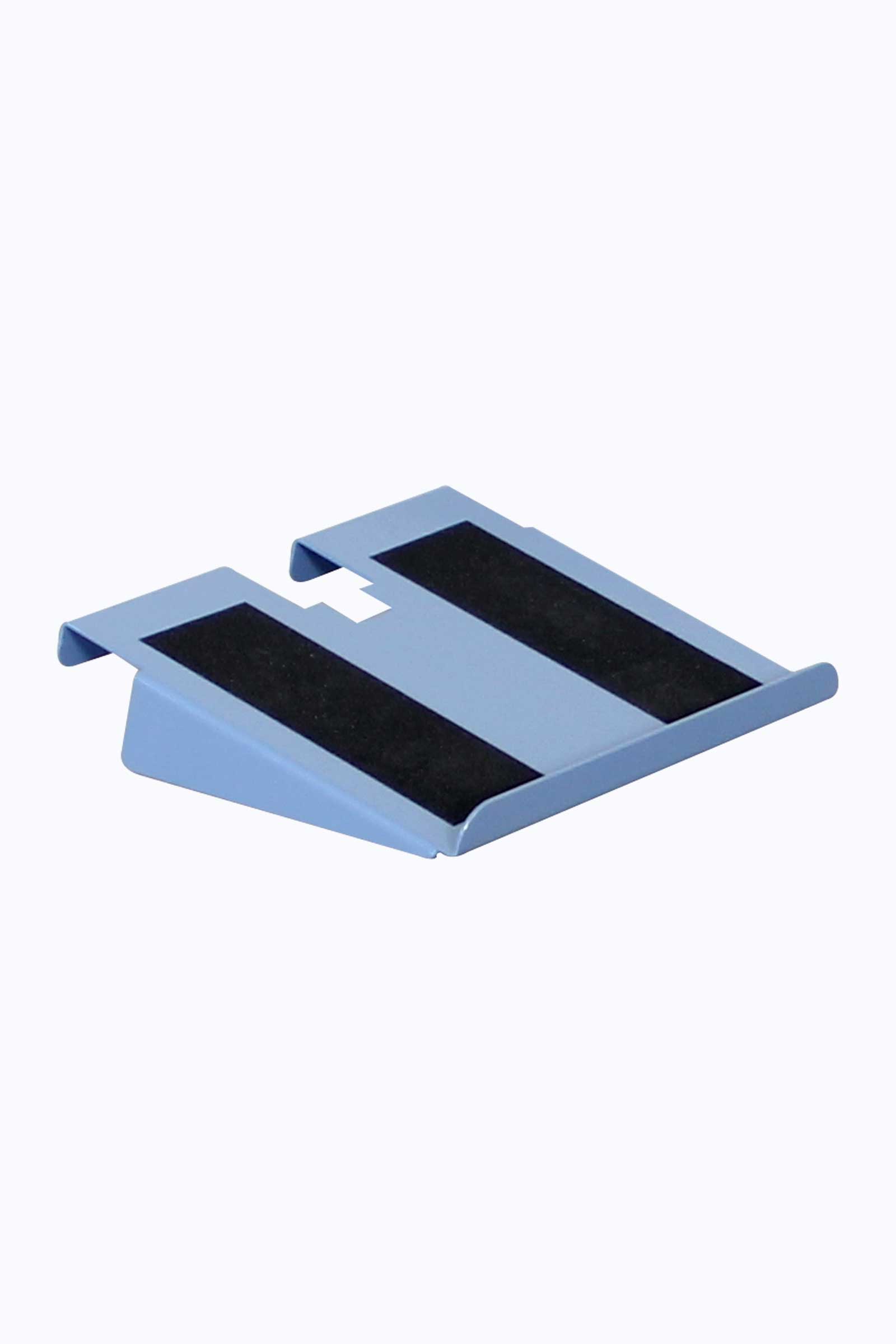

– Removable platform for walking aid
– Mechanical opening base legs
Video
Specifications
Made in France
CE certified
Class 1 medical device
Weight capacity: 150 kg
Lifting actuator power: 8 000 N
Total weight with mechanical opening legs: 33 kg
Total weight with electrical opening legs: 35 kg
Steel manufacturing
Epoxy baked painting
Double ball bearing castors
Standard: NF EN ISO 10535:2007
Warranty: 5 years (except battery and breakage)
Dimensions
Total length: 100 cm
Minimum lifting height: 84 cm
Maximum lifting height: 128 cm
Total height: 98 cm
Frame height: 11 cm
Minimum base width: 57 cm
Maximum base width with mechanical opening legs: 88 cm
Maximum base width with melectrical opening legs: 90 cm
Turning diameter: 110 cm
References
Mechanical opening
With standard battery: WAYUPBLUECP-PF
With lithium battery: WAYUPBLUECP-LI-PF
Electrical opening
With standard battery: WAYUPBLEP+-E-PF
With lithium battery: WAYUPBLEP+-E-LI-PF
