BLUE FLYER mechanical or electrical opening legs
BLUE FLYER mechanical or electrical opening legs

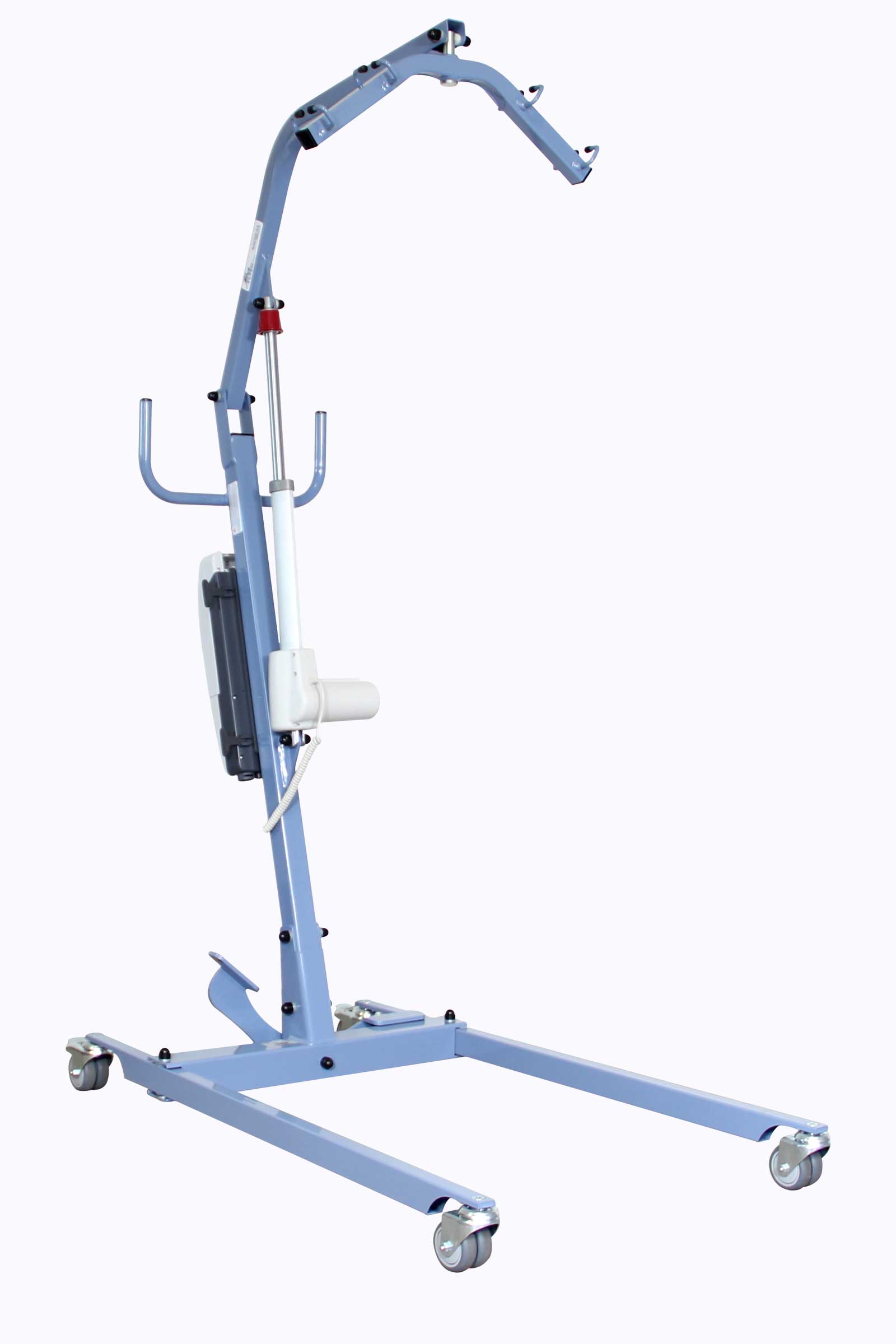

CE certified and manufactured in France, the BLUE FLYER with mechanical or electrical opening legs is an entry-level patient lift, made in steel and whose maximum lifting capacity is 180 kg.
These mechanical and electrical opening legs versions are extremely easy to use and specially designed to perform secure and comfortable transfers for most patients.
As an option, it is available with a lithium battery which enhances the use of the device by increasing the time of use and reducing the charging time.
USE

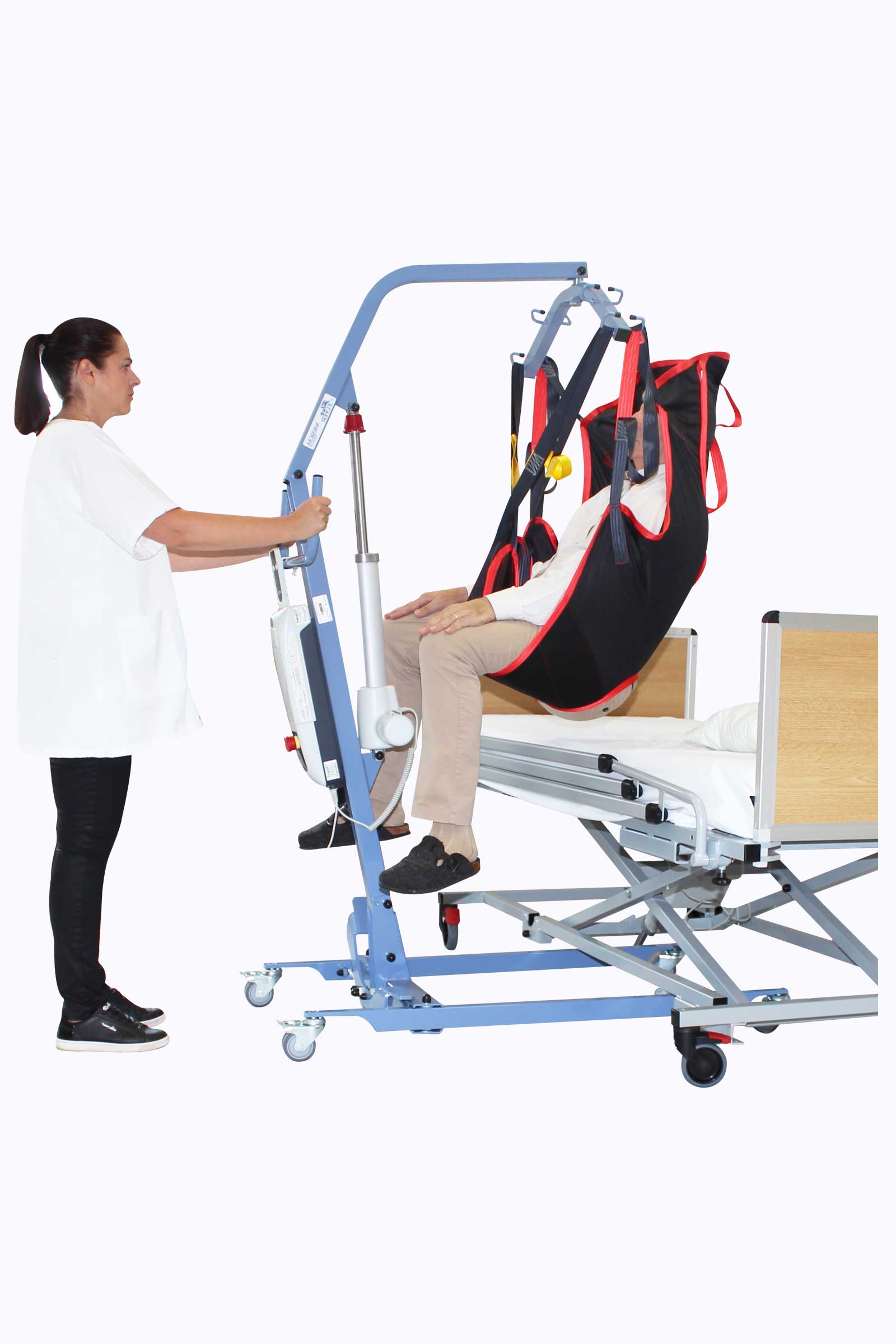

Its proportions allow a great ease of movement while remaining easy to handle, providing simplicity of use and versatility to perform secure and comfortable transfers.

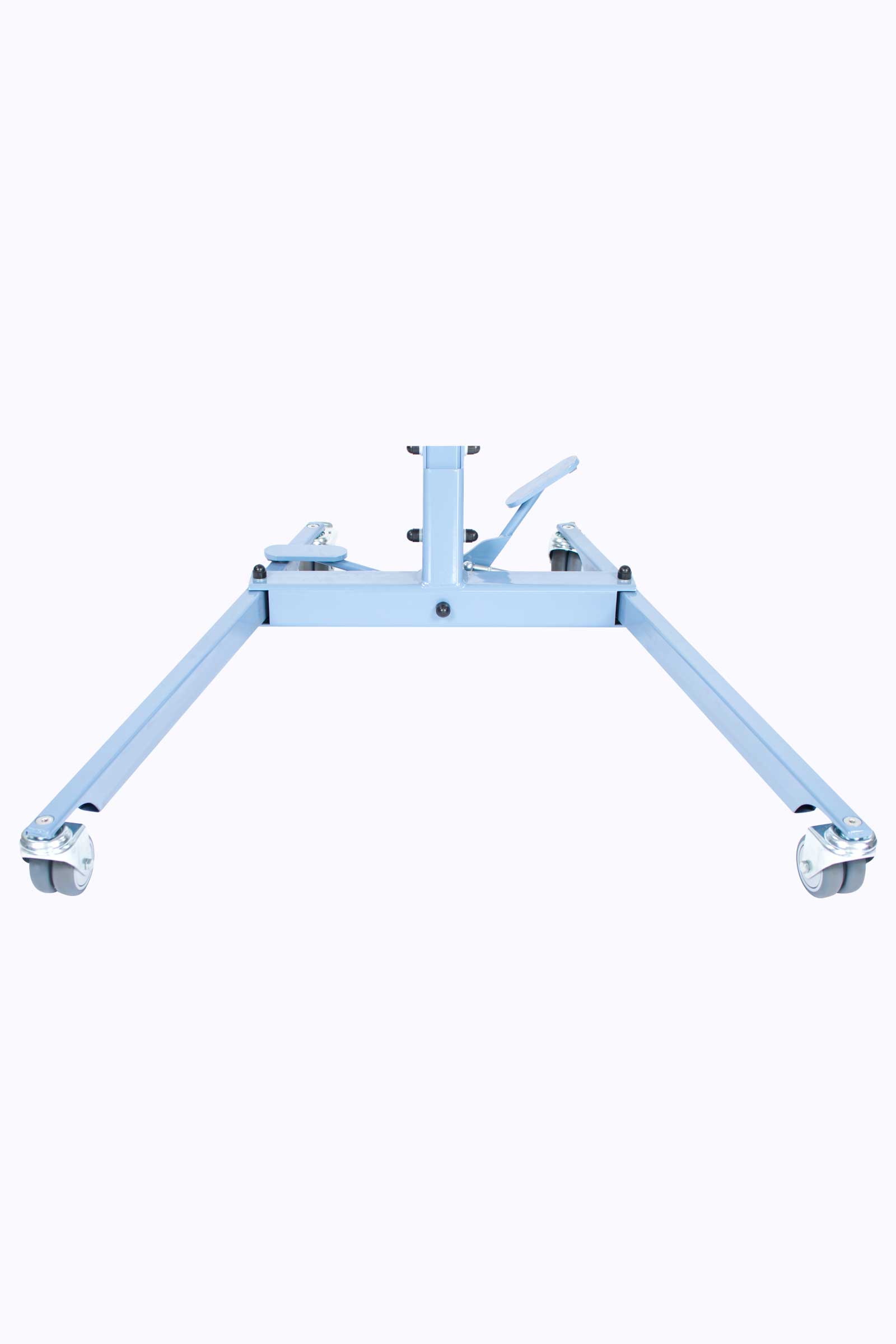

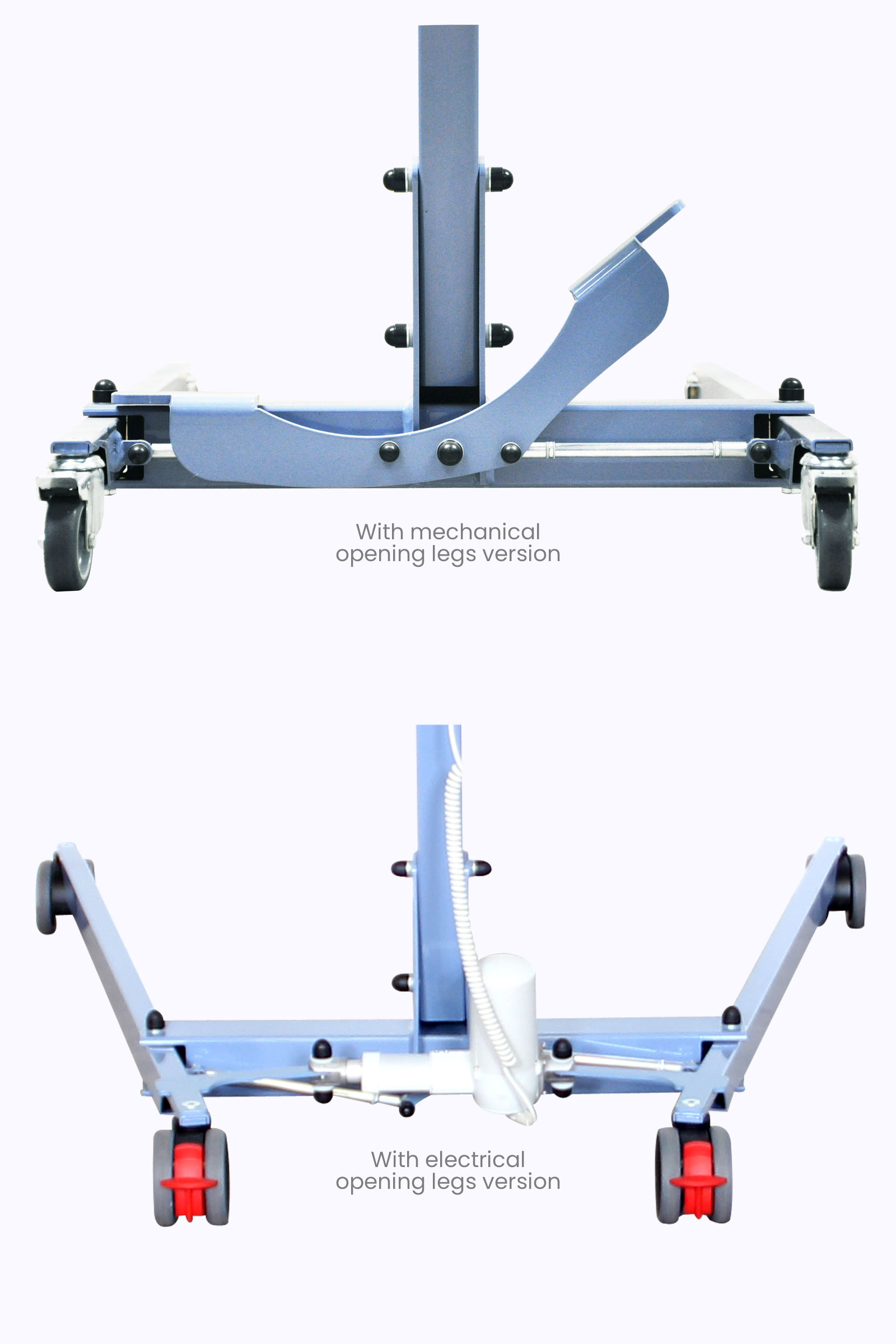

Its mechanical opening base legs, from 65 cm to 107 cm, allows large widths armchairs or wheelchairs and an ease of access.
SELECTION ADVICE
The BLUE FLYER with mechanical opening legs is mostly recommended:
– for a patient who has no self-support
– for a patient who is totally dependent and bedridden
ADVANTAGES
– Securing spreader bar for the patient

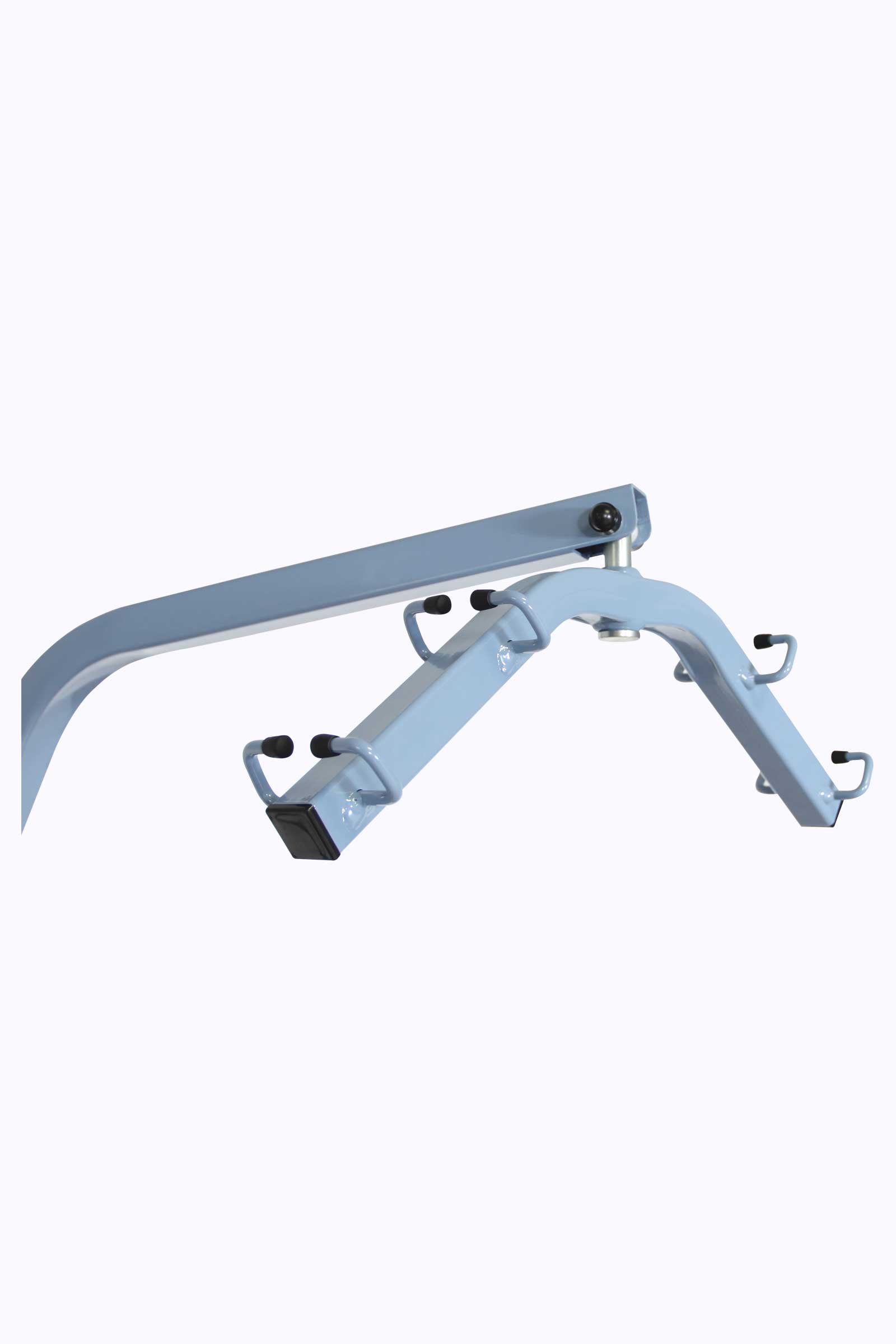

– 360-degree rotation of the spreader bar for a simplified positioning
– Great lifting range to perform a lifting from the floor
– Easy folding/unfolding without any tools for easy transport
KEY FEATURES
– 360-degree rotation of the spreader bar for a simplified positioning
– Large handlebar for ease of handling

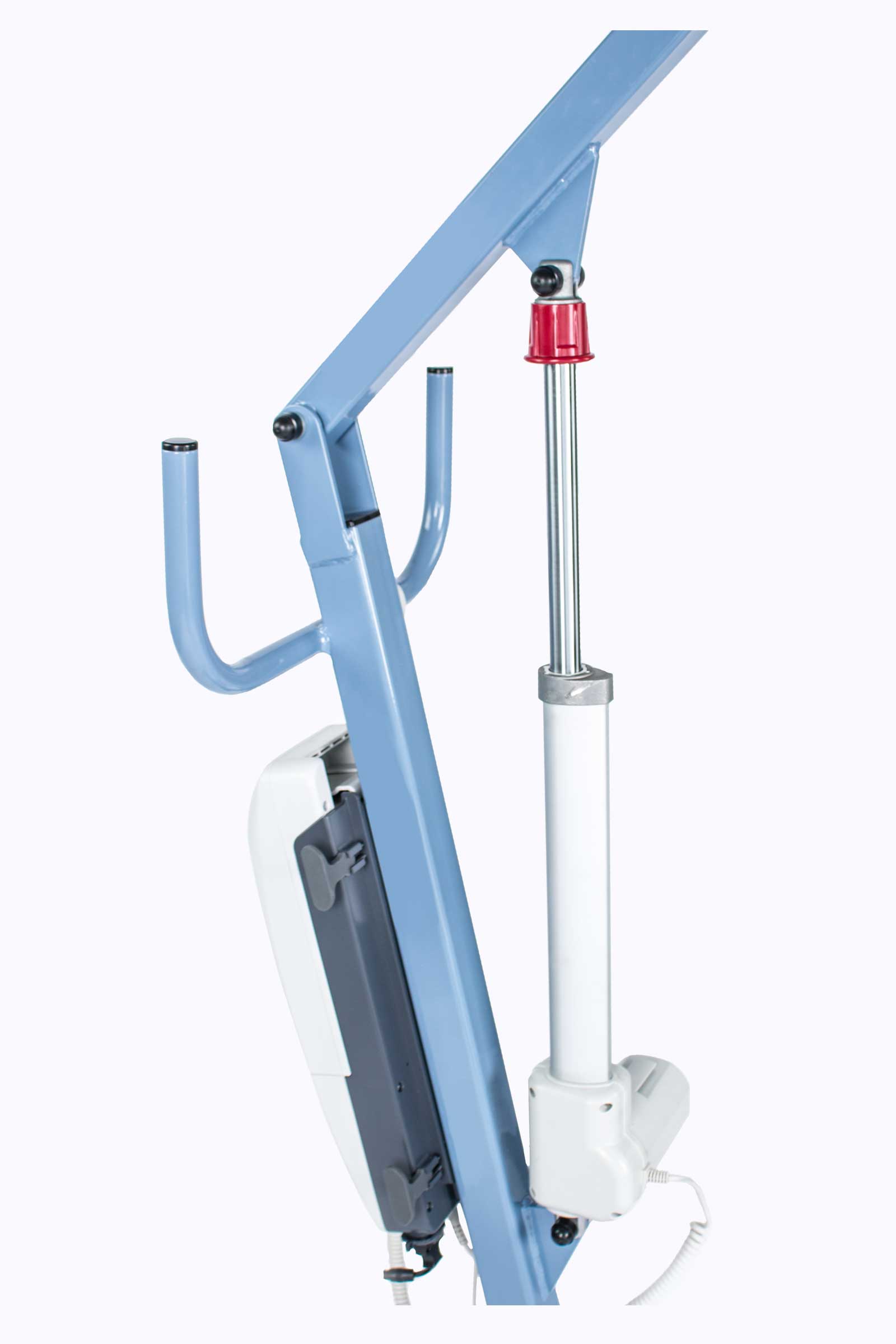

– 8 000 N actuator offering an excellent compromise between maximum capacity and lifting speed
– Mechanical opening legs
Video
Specifications
Made in France
CE certified
Class 1 medical device
Weight capacity: 180 kg
Total weight with mechanical opening: 40 kg
Total weight with electrical opening: 42 kg
Lifting actuator power: 8 000 N
Steel manufacturing
Epoxy baked painting

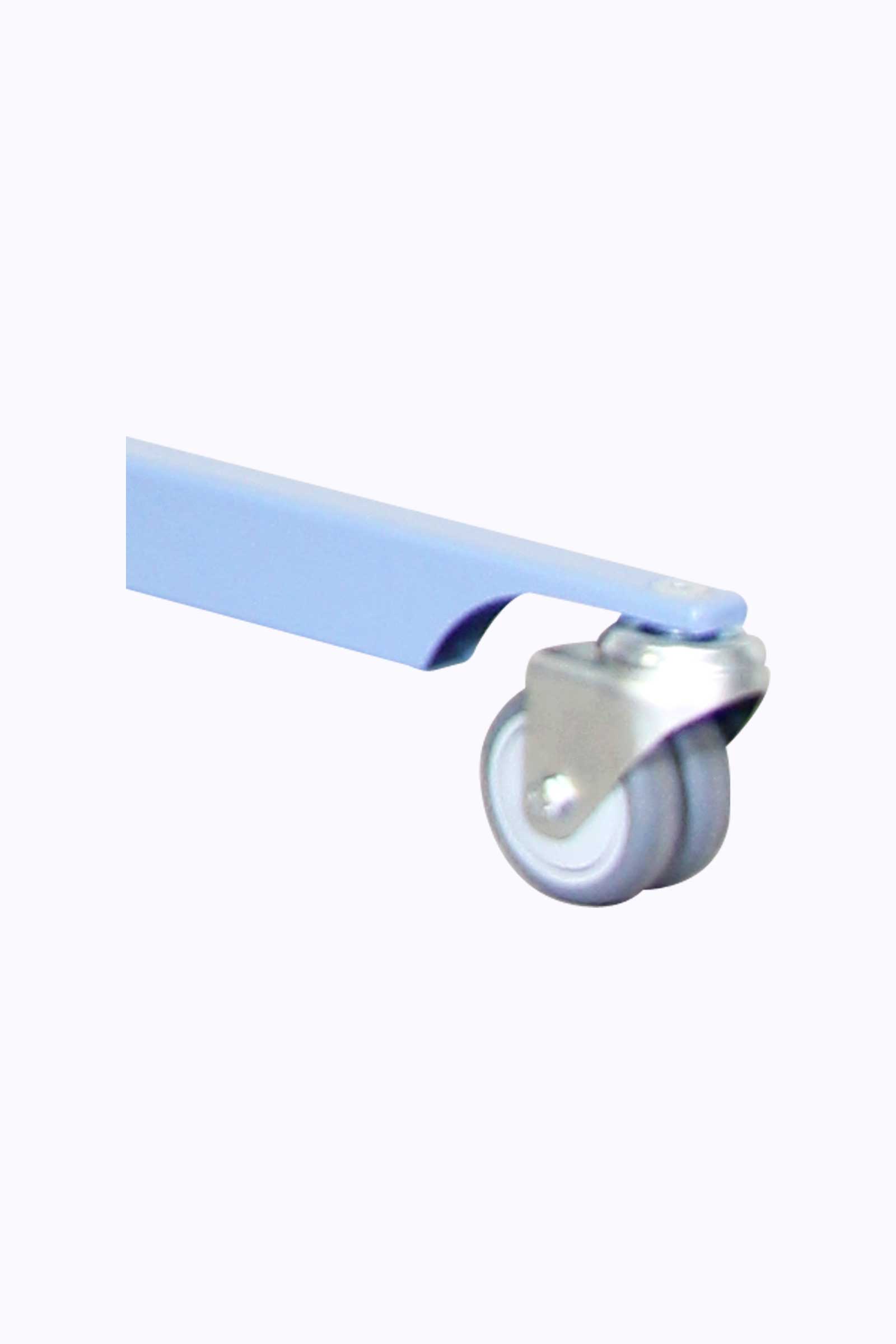

Double ball bearing castors
Standard: NF EN ISO 10535:2007
Warranty: 5 years (except battery and breakage)
Option: lithium battery – 2 years warranty
Dimensions
Total length: 119 cm
Minimum lifting height: 65 cm
Maximum lifting height: 180 cm
Total height: 138 cm
Frame height: 11 cm
Minimum base width: 68 cm
Maximum base width with mechanical opening: 98 cm
Maximum base width with electrical opening: 108 cm
Turning diameter: 135 cm
References
Mechanical opening
With standard battery: FLYER-BLUE-PF
With lithium battery: FLYER-BLUE-LI-PF
Electrical opening
With standard battery: FLYERBLUE+-E-PF
With lithium battery: FLYERBLUE+-E-LI-PF
Spare parts
BLUE FLYER with mechanical opening legs
1. Complete device
2. Battery pack
3. Actuator
4. Remote control
BLUE FLYER with electrical opening legs
1. Complete device
