BLUE EASYLEV mechanical or electrical opening legs
BLUE EASYLEV mechanical or electrical opening legs
CE certified and manufactured in France, the BLUE EASYLEV range is an entry-level line, made in steel and whose maximum lifting capacity is 150 kg.

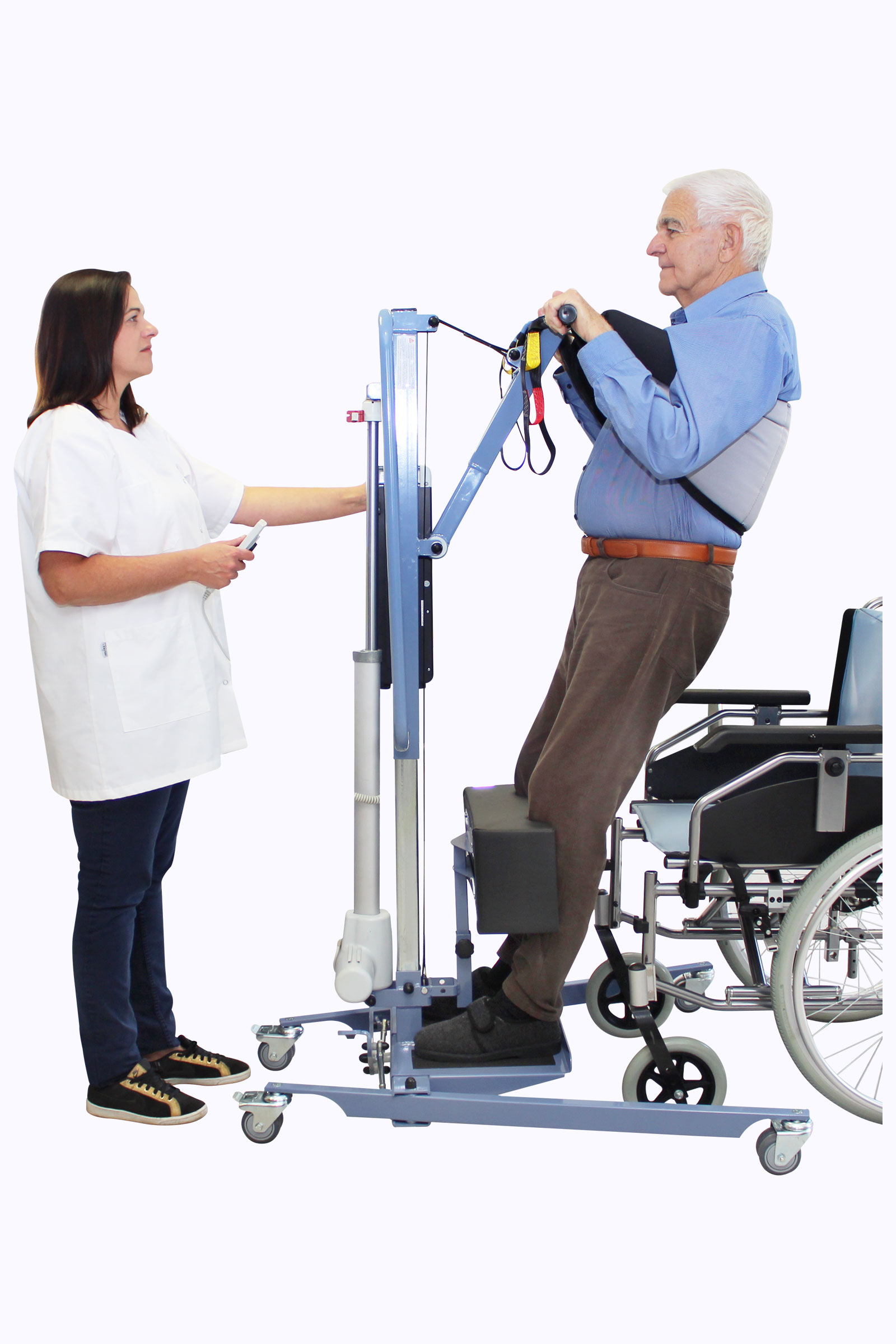

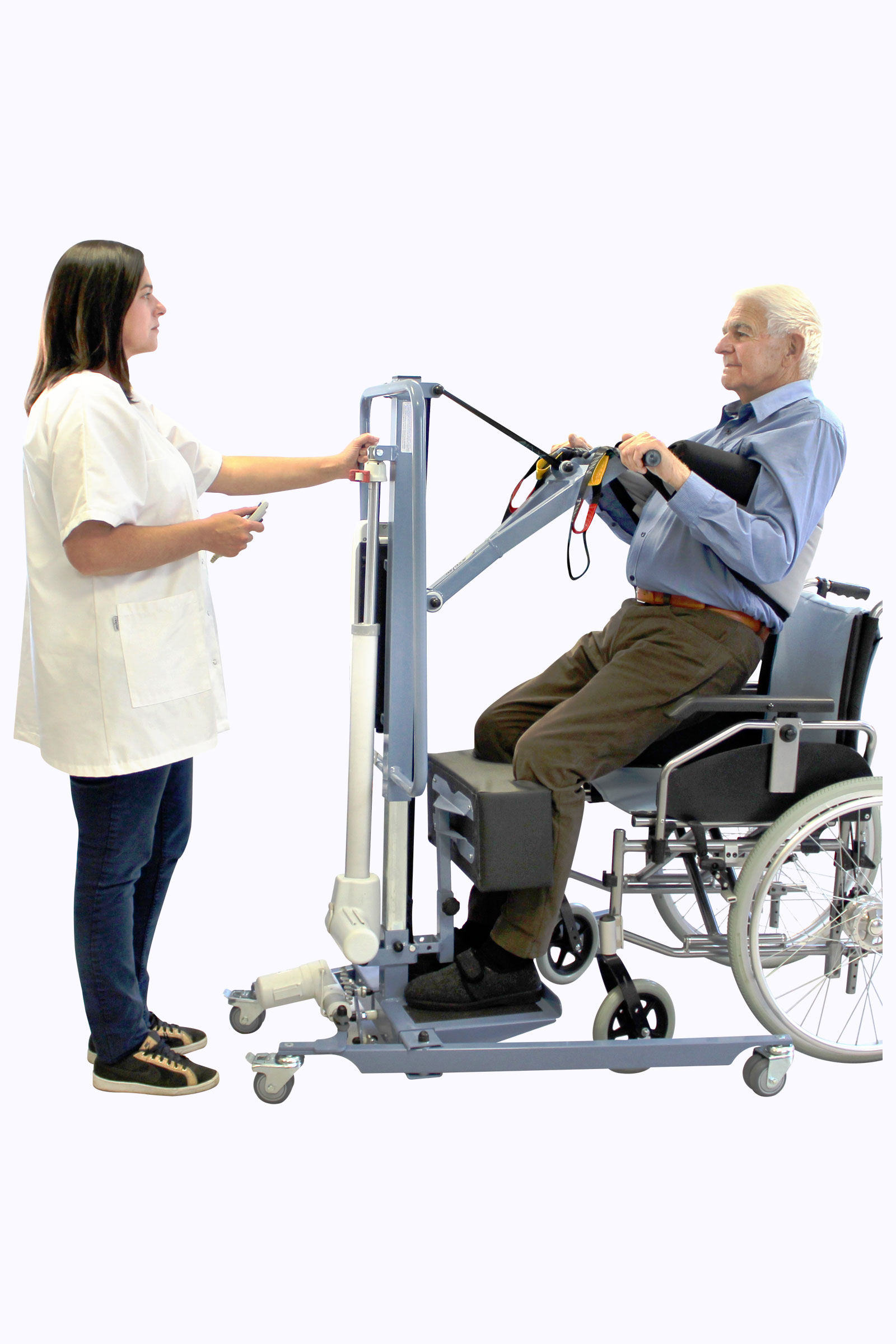

This mechanical or electrical opening legs version is specially designed to provide an optimal ease of access to armchairs or wheelchairs. Both models are completely dedicated to a smooth comfortable standing-up process due to their specific combined movement.

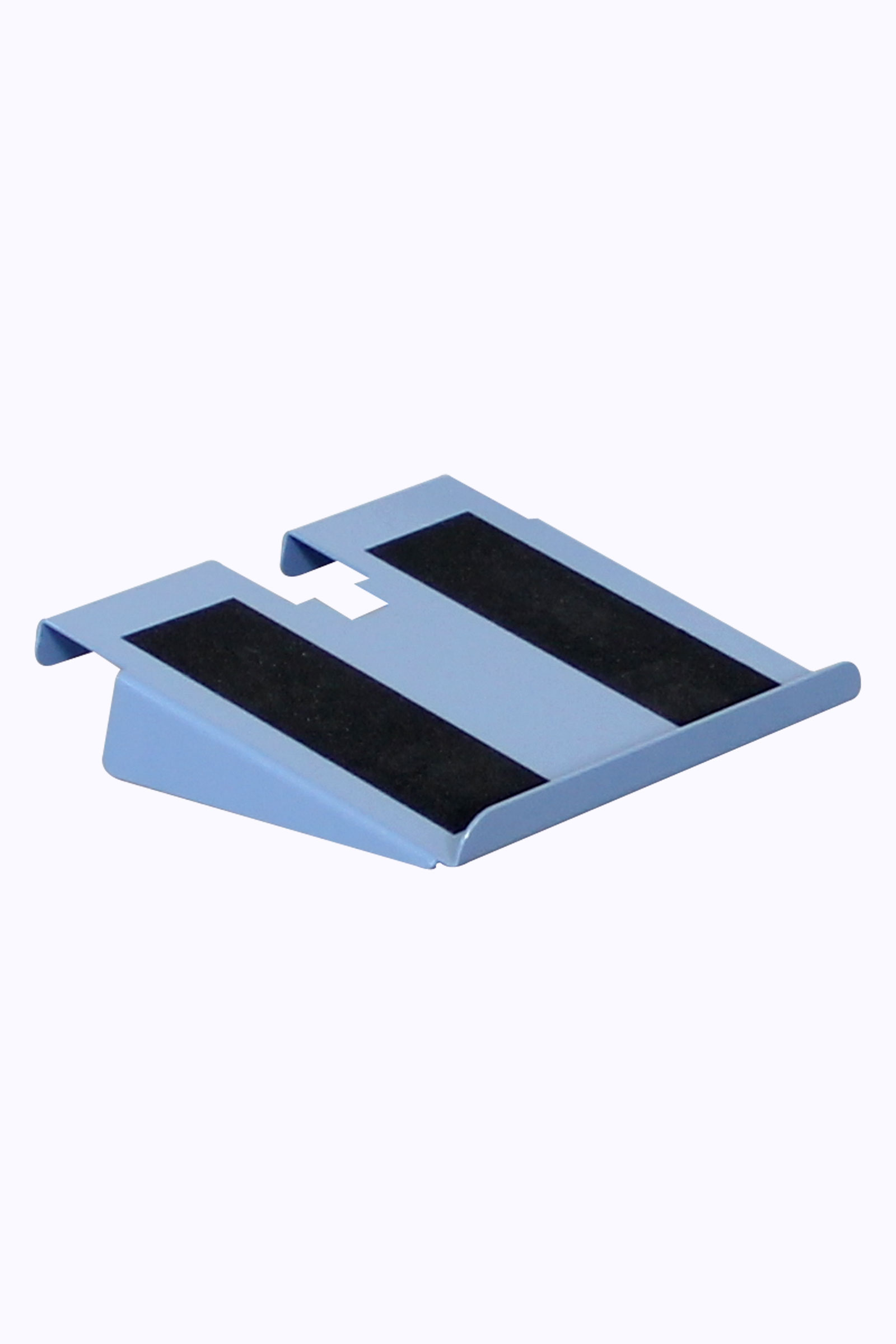

By removing the foot platform, they can be easily transformed into a walking aid to encourage the patient to walk on its own.

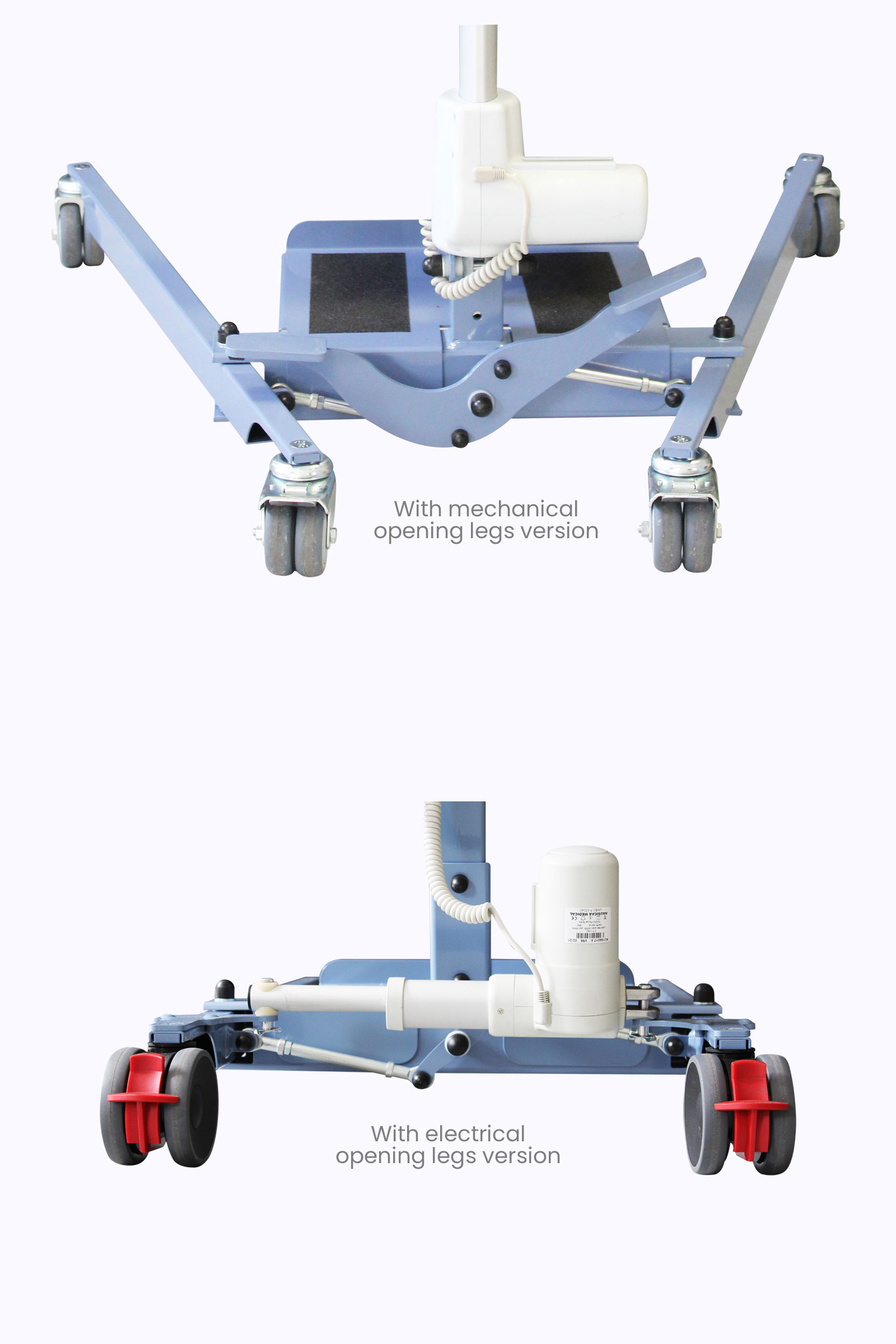

2 opening base legs versions:

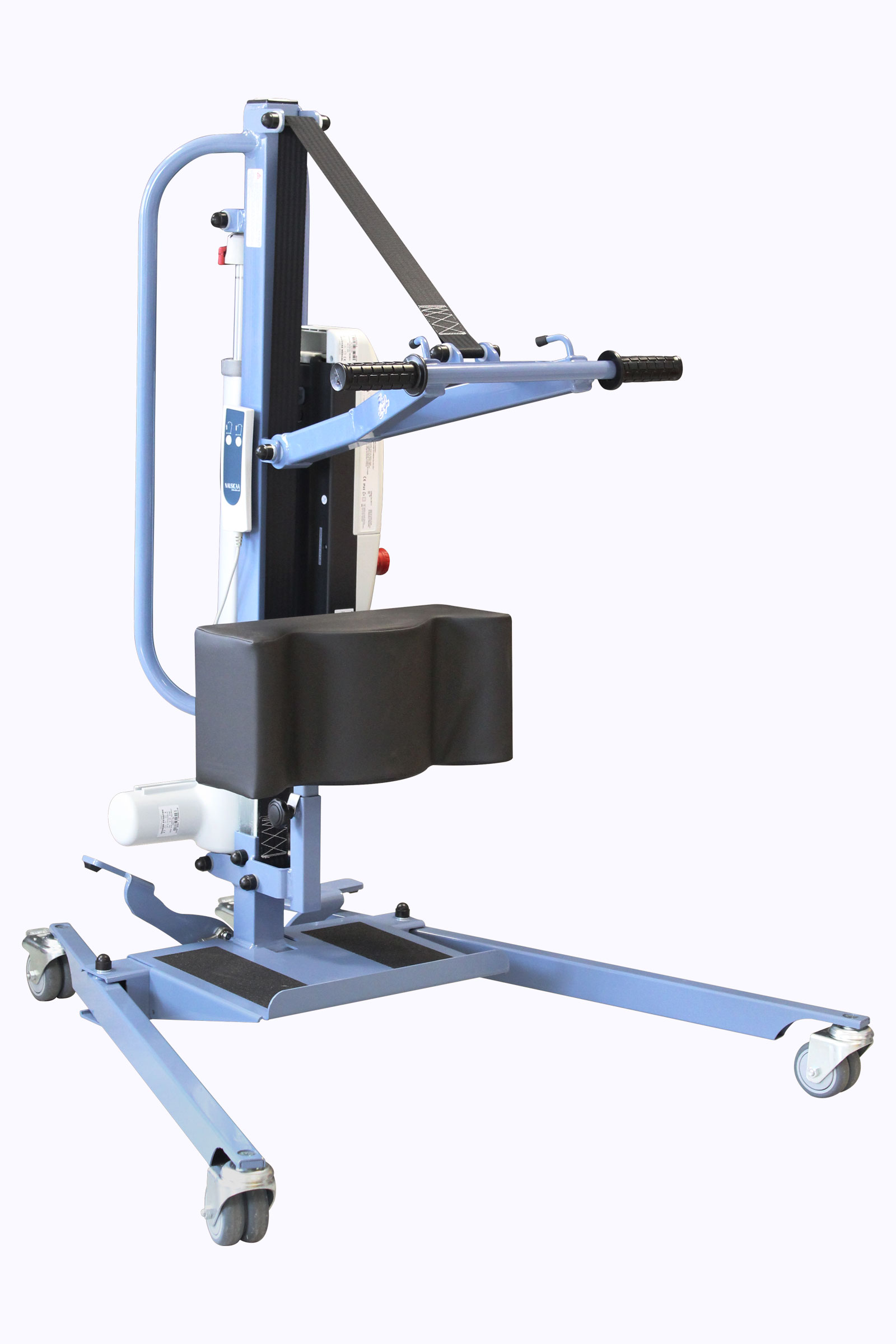

• Mechanical opening legs

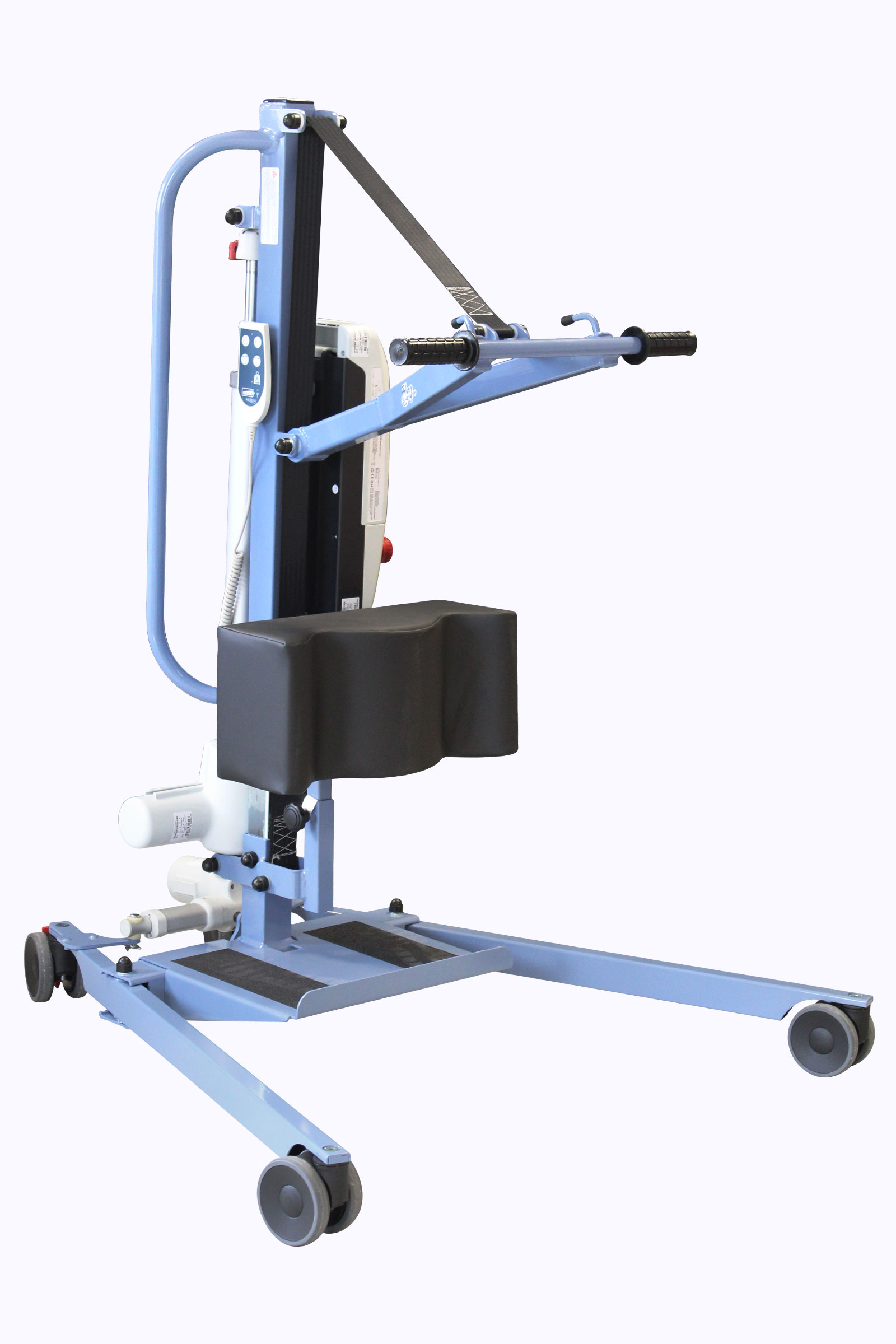

• Electrical opening legs
As options, a lithium battery is available to enhance the use of the device and a calf strap to provide a better feeling of safety (warranted 2 years).
USE

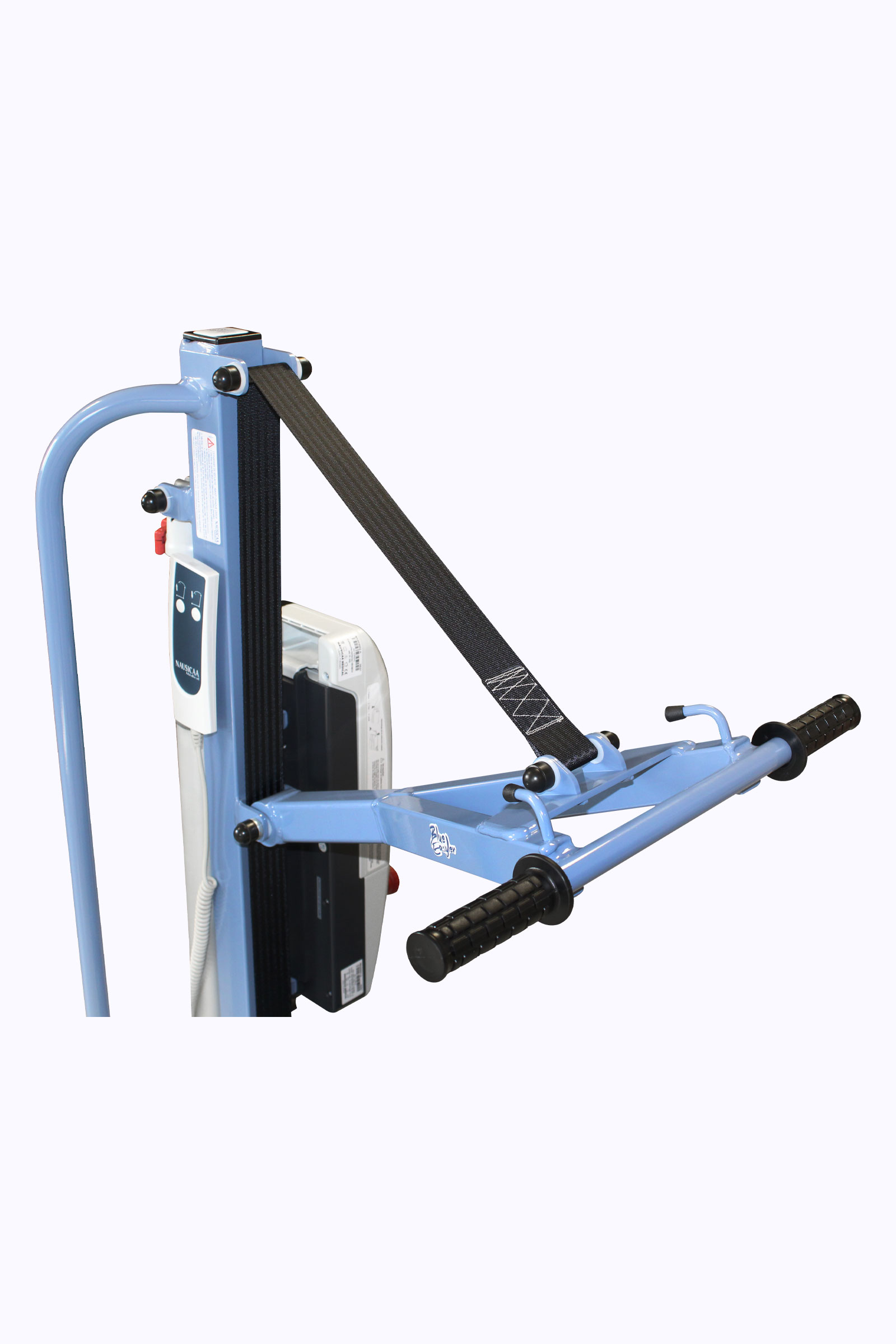

The device supports a very low tonicity of the patient’s bust through the combined motion of the telescopic mast and of the traction sling which provides a high level of comfort and flexibility to the patient during the standing up process.
Its mechanical opening base legs allows large widths armchairs or wheelchairs and an ease of access.
ADVANTAGES
Activation of mobility and transit during daily transfers
Combined movement providing a high level of comfort
Opening base legs for an ease of access to armchairs or wheelchairs
Perfected for patients with very low tonicity
Complete release of the patient’s lower body to effectively perform a change
Specifications
Made in France
CE certified
Class 1 medical device
Weight capacity: 150 kg
Lifting actuator power: 8 000 N
Total weight with mechanical opening legs: 42 kg
Total weight with electrical opening legs: 44 kg
Steel manufacturing
Ball bearing castors
Standard: NF EN ISO 10535:2007
Warranty: 5 years (except battery and breakage)
Dimensions
Total length: 100 cm
Minimum lifting height: 70 cm
Maximum lifting height: 160 cm
Total height: 126 cm
Frame height: 11 cm
Minimum base width: 57 cm
Maximum base width with mechanical opening legs: 88 cm
Maximum base width with melectrical opening legs: 90 cm
Turning diameter: 115 cm
References
Mechanical opening
With standard battery: EASYLEVBLUECP-PF
With lithium battery: EASYLEVBLUECP-LI-PF
Electrical opening
With standard battery: ESLB2EP+-E2-PF
With lithium battery: ESLB2EP+-E2-LI-PF
