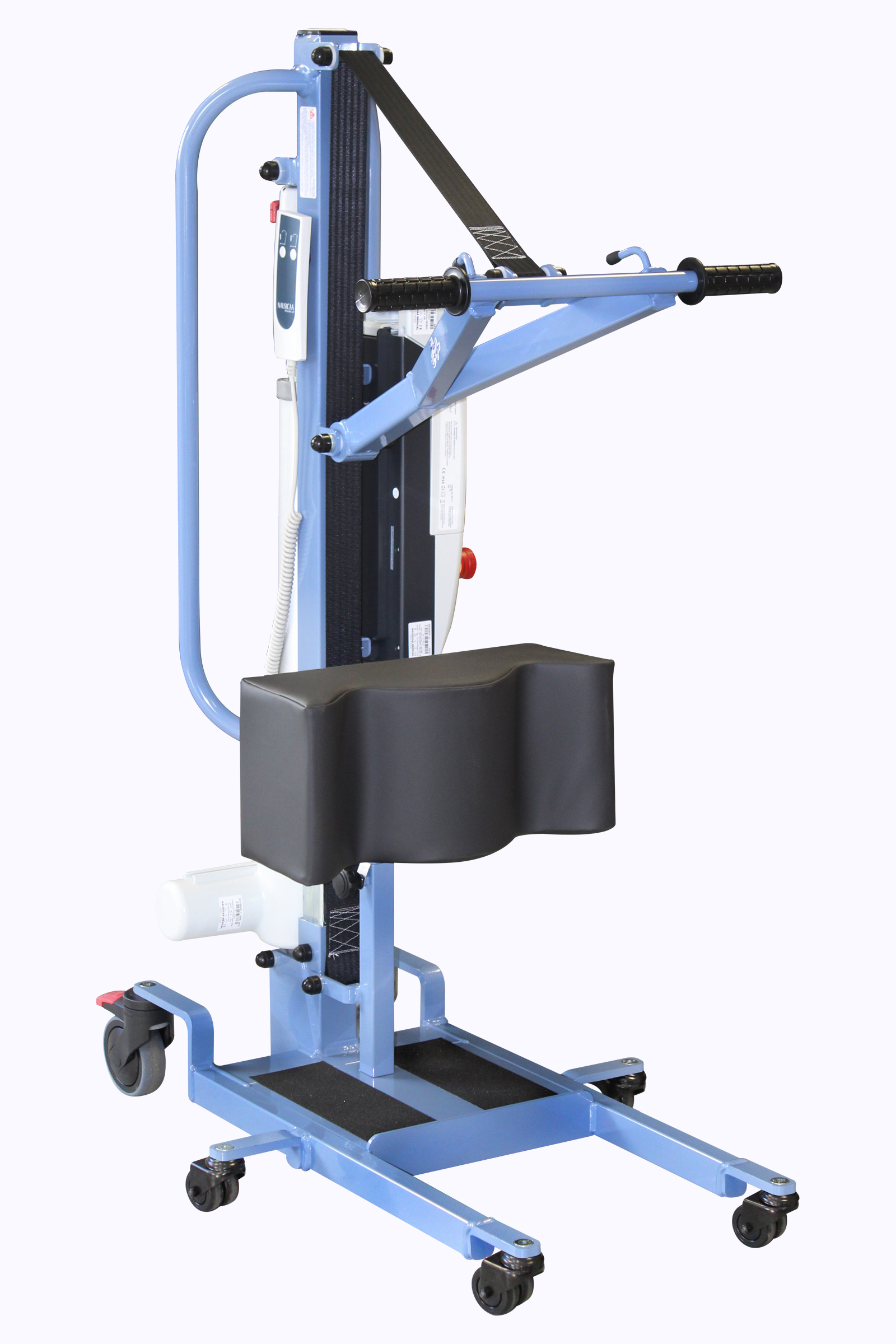

BLUE EASYLEV
fixed base

BLUE EASYLEV
fixed base

CE certified and manufactured in France, the BLUE EASYLEV range is an entry-level line, made in steel and whose maximum lifting capacity is 150 kg.

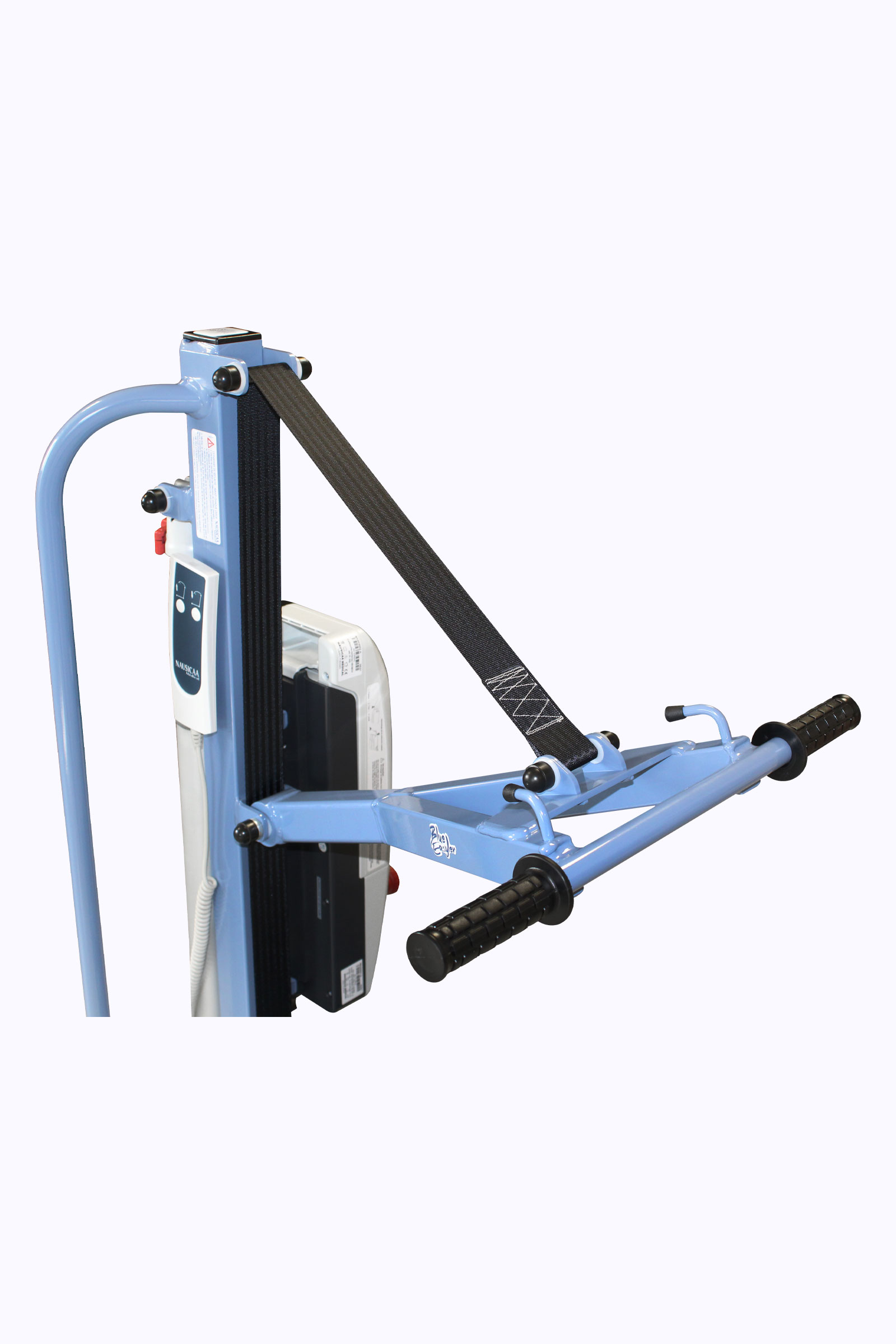

It has been designed for patients with very low tonicity in the chest area. Easy to handle with its oversized handlebar, it is made for confined spaces with its extremely compact base (59 cm base width).

It allows easy access for the caregiver to perform a change during the daily toilet.

As options, a lithium battery is available to enhance the use of the device and a calf strap to provide a better feeling of safety (warranted 2 years).

More ...



USE

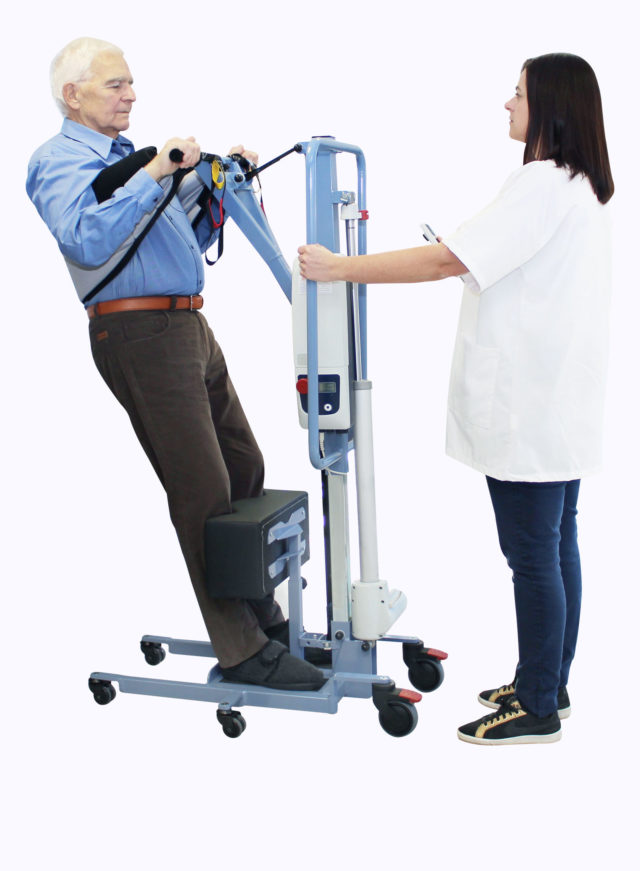

The device supports a very low tonicity of the patient’s bust through the combined motion of the telescopic mast and of the traction sling which provides a high level of comfort and flexibility to the patient during the standing up process.
Its mechanical opening base legs allows large widths armchairs or wheelchairs and an ease of access.



ADVANTAGES
Activation of mobility and transit during daily transfers
Combined movement providing a high level of comfort
Opening base legs for an ease of access to armchairs or wheelchairs
Perfected for patients with very low tonicity
Complete release of the patient’s lower body to effectively perform a change

SKU: EASYLEVBLUE-PF EASYLEVBLUE-LI-PF Category:
Specifications

Made in France

CE certified

Class 1 medical device

Weight capacity: 150 kg

Lifting actuator power: 3 000 N

Total weight: 38 kg

Steel manufacturing

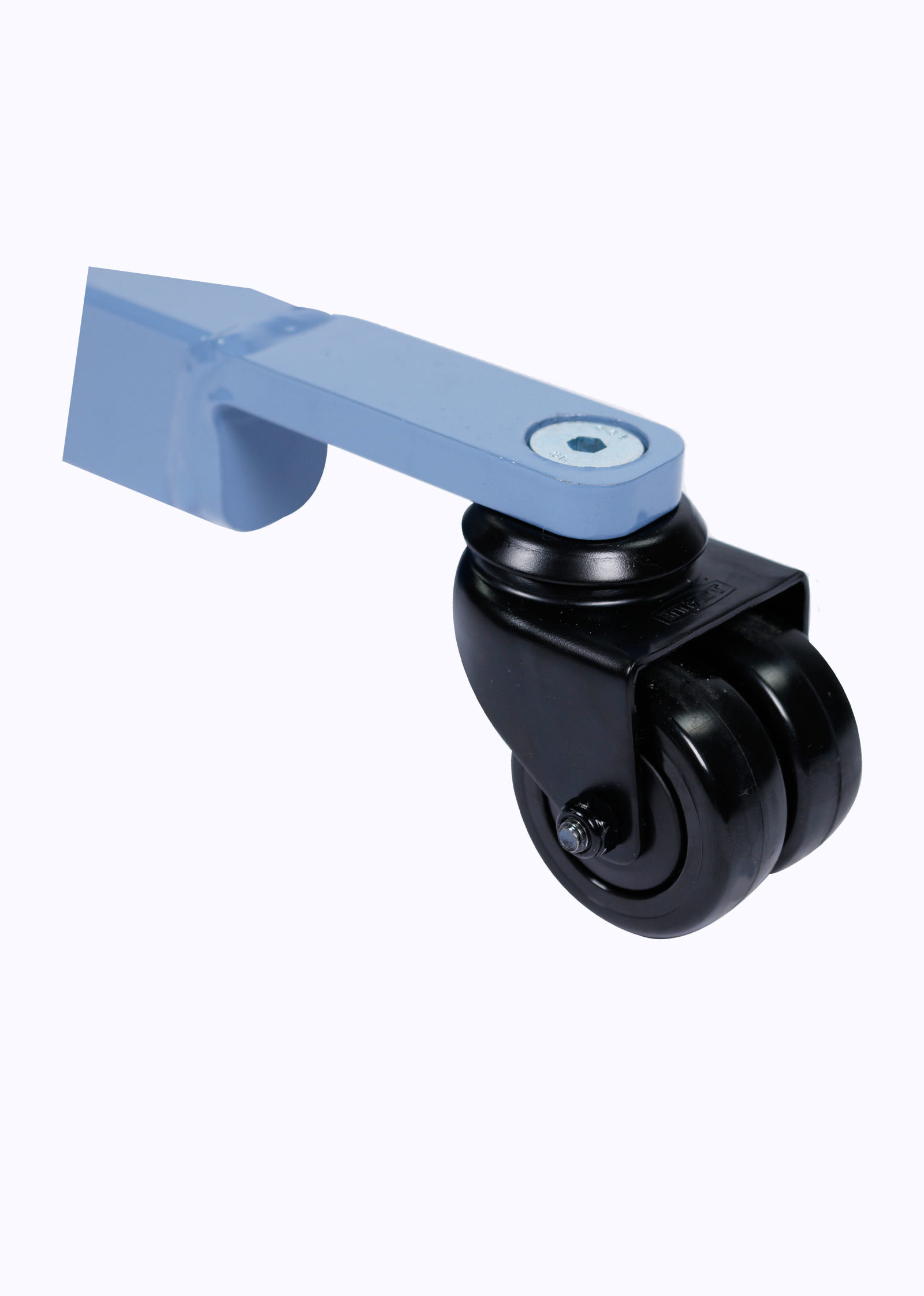

Ball bearing castors

Standard: NF EN ISO 10535:2007

Warranty: 5 years (except battery and breakage)

Dimensions

Total length: 94 cm
Minimum lifting height: 66 cm
Maximum lifting height: 156 cm
Total height: 121 cm
Frame height: 8,5 cm
Minimum base width: 29,5 cm
Maximum base width: 59 cm
Turning diameter: 90 cm

References

Fixed base

With standard battery: EASYLEVBLUE-PF
With lithium battery: EASYLEVBLUE-LI-PF
