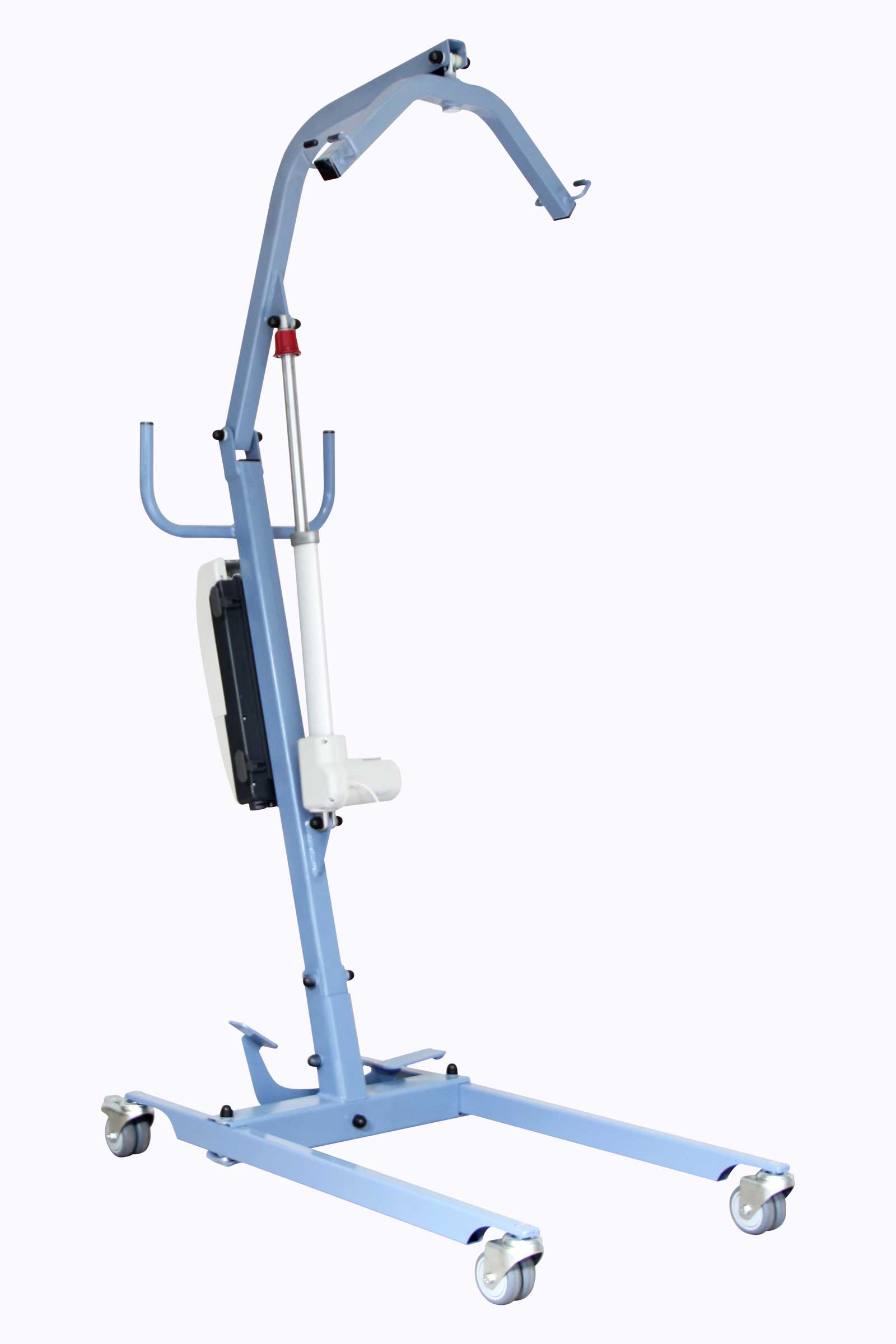

BLUE FLYER COMPACT with mechanical opening legs

• CE certified and manufactured in France, the BLUE FLYER COMPACT with mechanical opening legs is an entry-level patient lift, made in steel and whose maximum lifting capacity is 160 kg.

• It is specially designed to meet a limited budget while maintaining a high quality of manufacturing.

• As an option, it is available with a lithium battery which enhances the use of the device by increasing the time of use and reducing the charging time.

• USE
Due to its compact base and its reduced dimensions, it has been specially designed for home care use, where the doors openings are very narrow and where the lifting space is limited.
Its mechanical opening base legs, from 61 cm to 84 cm, allows large widths armchairs or wheelchairs and an ease of access.

• SELECTION ADVICE
The BLUE FLYER COMPACT with mechanical opening legs is mostly recommended:
– for a patient who has no self-support
– for a patient who is totally dependent and bedridden

• ADVANTAGES

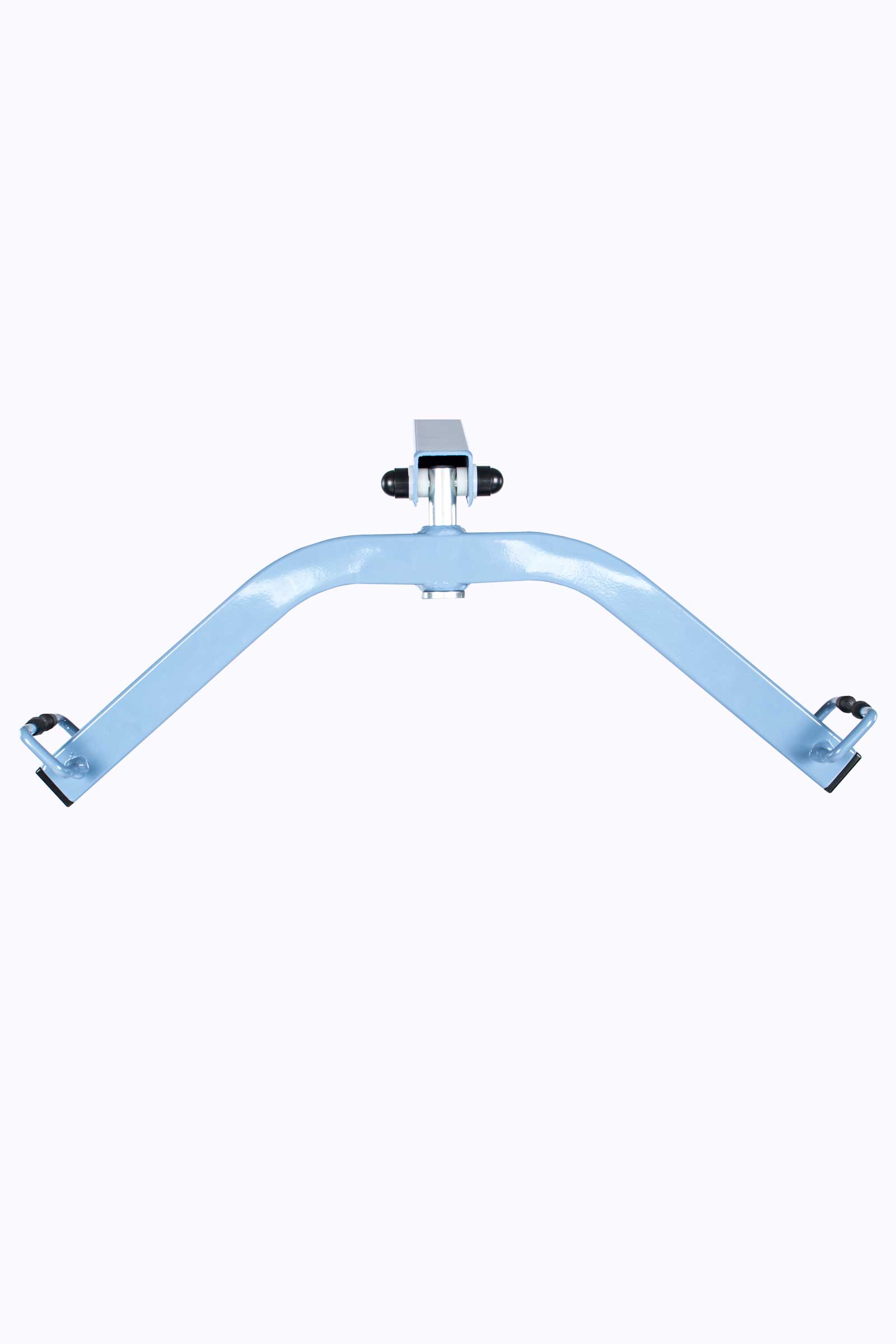

– Securing spreader bar for the patient
– 360-degree rotation of the spreader bar for a simplified positioning
– Suitable for confined spaces due to its compactness
– Easy folding/unfolding without any tools for easy transport

• KEY FEATURES
– Securing spreader bar for the patient

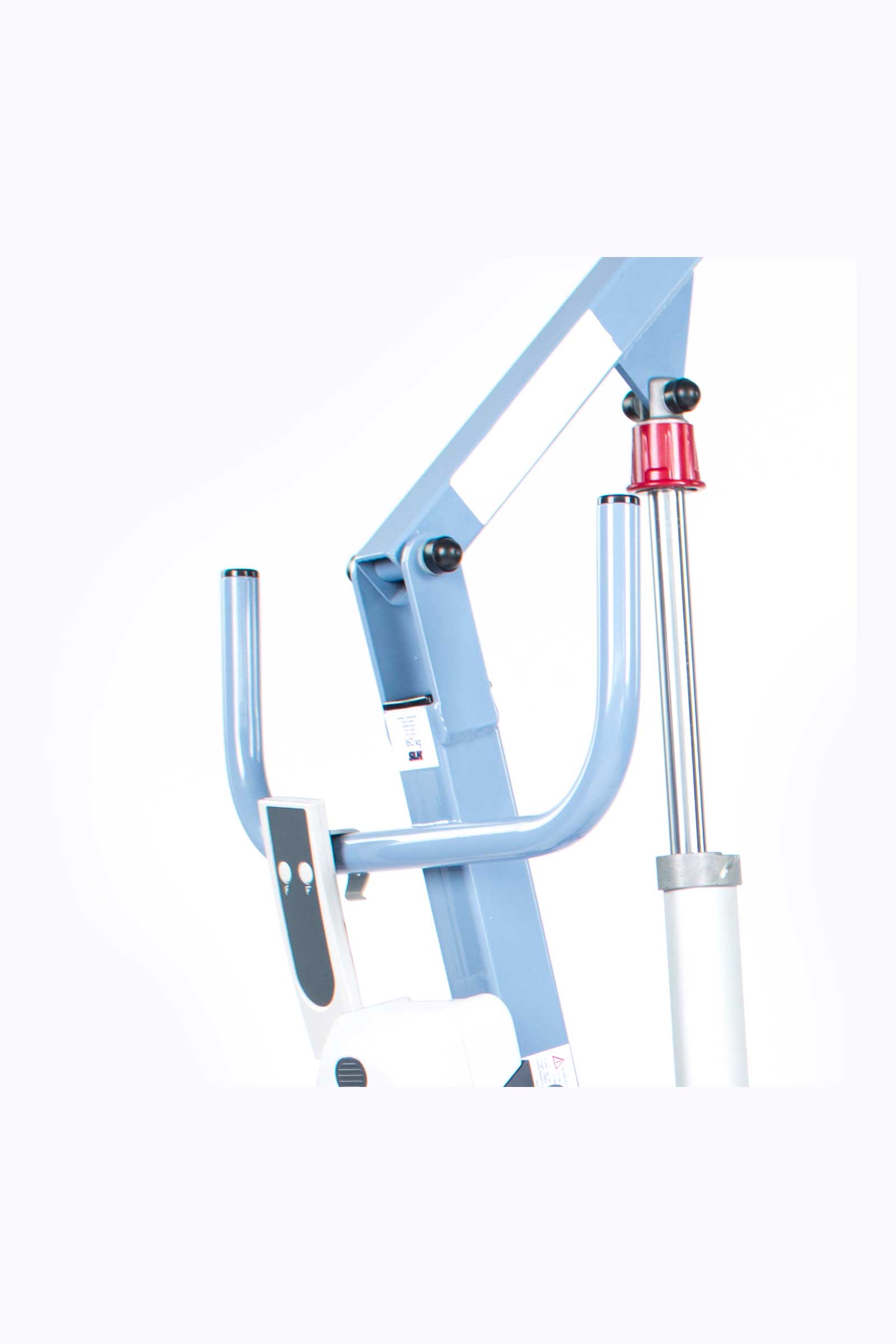

– Large handlebar for ease of handling

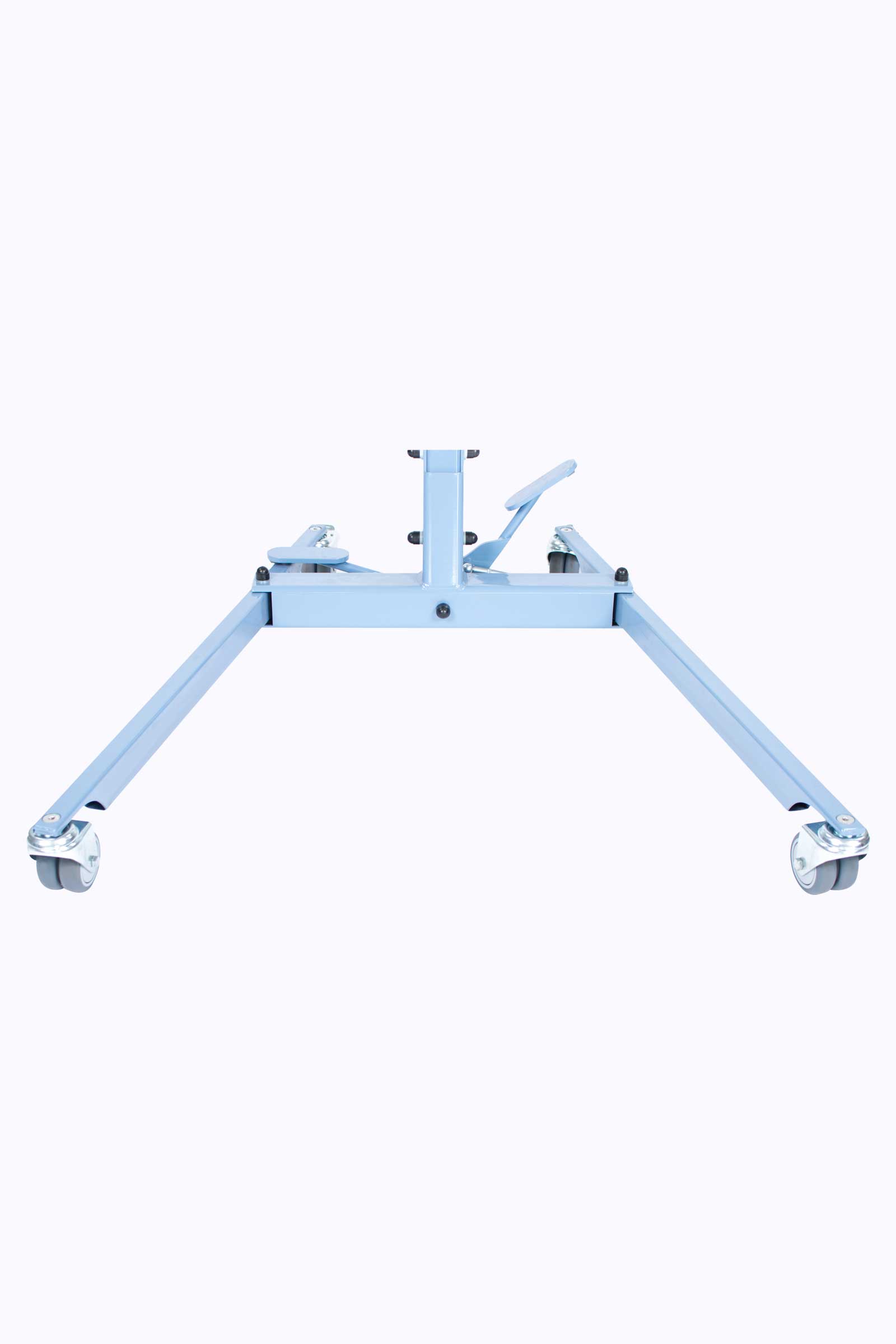

– Mechanical opening legs
– Reduced height of the front wheels to pass under the lowest beds

Category:

  • Made in France
  • CE certified
  • Class 1 medical device
  • Weight capacity: 160 kg
  • Total weight: 31 kg
  • Lifting actuator power: 6 000 N
  • Steel manufacturing
  • Epoxy baked painting

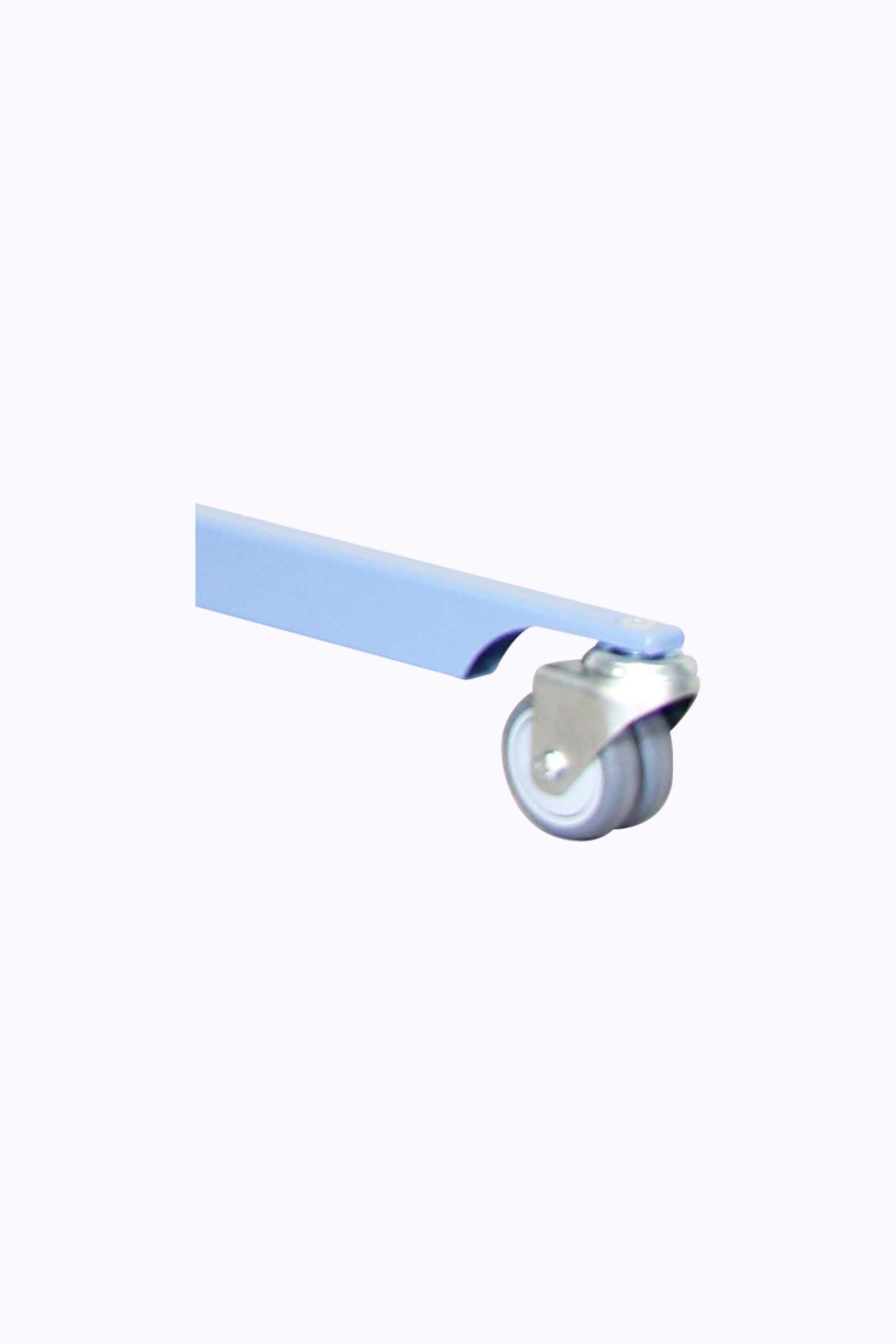

  • Double ball bearing castors
  • Standard: NF EN ISO 10535:2007
  • Warranty: 5 years (except battery and breakage)
  • Option: lithium battery – 2 years warranty
  • Total length: 1000 mm
  • Minimum lifting height: 580 mm
  • Maximum lifting height: 1590 mm
  • Total height: 1260 mm
  • Height of chassis: 113 mm
  • Minimum base width: 610 mm
  • Maximum base width: 840 mm
  • Turning diameter: 1115 mm
  • FLYERBLUE-CP-PF (standard battery)
  • FLYERBLUE-CP-LI-PF (lithium battery)
